| Place of Origin: | China |
|---|---|
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton |
| Delivery Time: | Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 5000 |
| Model NO.: | R503-M22 | Screen: | As Picture |
|---|---|---|---|
| Communication Interface: | RS232 | Fingerprint Capacity: | 200 |
| Voltage: | DC 3.3V | Effective Collection Area: | Diameter 15.5 (mm) |
| Sensing Array: | 190*190 Pixel | Resolution: | 508 Dpi |
| Abrasive Resistance Intensity: | 1 Million Times | Antistatic Capacity: | 15kv |
| Fingerprint Module External Diameter: | 25mm | Fingerprint Module Inner Diameter: | 22mm(M22) |
| Fingerprint Module Height: | 15mm | Weight: | 32g |
| LED Control: | Yes | Transport Package: | Standard Export Carton Package |
| Specification: | Diameter 25 (mm) | Trademark: | GROW |
| Origin: | China | HS Code: | 8471609000 |
| Supply Ability: | 5000 | Package Size: | 13.00cm * 8.00cm * 9.00cm |
| Package Gross Weight: | 0.100kg | Voice Service: | Without Voice Service |
| Clock: | Without Clock | Samples: | US$ 13.9/Piece| 1 Piece(Min.Order) |
| Customization: | Available|Customized Request | Shipping Cost: | Contact The Supplier About Freight And Estimated Delivery Time. |
| Payment Methods: | Initial Payment/Full Payment | Currency: | US$ |
| Return&refunds: | Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |
|
|
R503
|
R503-5V
|
R503-M22
|
R503Pro
|
R503S
|
|
Power Supply
|
DC 3.3V
|
DC 5V
|
DC 3.3V
|
UART:DC 3.3V
USB:DC 5V |
DC 3.3V
|
|
Sensing Array
|
192*192 Pixel
|
192*192 Pixel
|
192*192 Pixel
|
192*192 Pixel
|
160*160 Pixel
|
|
Fingerprint Capacity
|
200
|
200
|
200
|
1500
|
150
|
|
Size
|
M25
|
M25
|
M22
|
M25
|
M25
|
|
Connector
|
SH 1.0mm 6pin
|
MX 1.25mm 6pin
|
SH 1.0mm 6pin
|
SH 1.0mm 6pin
|
SH 1.0mm 6pin
|
|
Model
|
R503-M22
|
|
Type
|
Capacitive Fingerprint Module
|
|
Interface
|
UART(TTL)
|
|
Resolution
|
508 DPI
|
|
Voltage
|
DC 3.3V
|
|
Fingerprint Capacity
|
200
|
|
Sensing array
|
192*192 pixel
|
|
Working current
|
20mA
|
|
Standby current
|
Typical touch standby voltage: 3.3V, Average current: 2uA
|
|

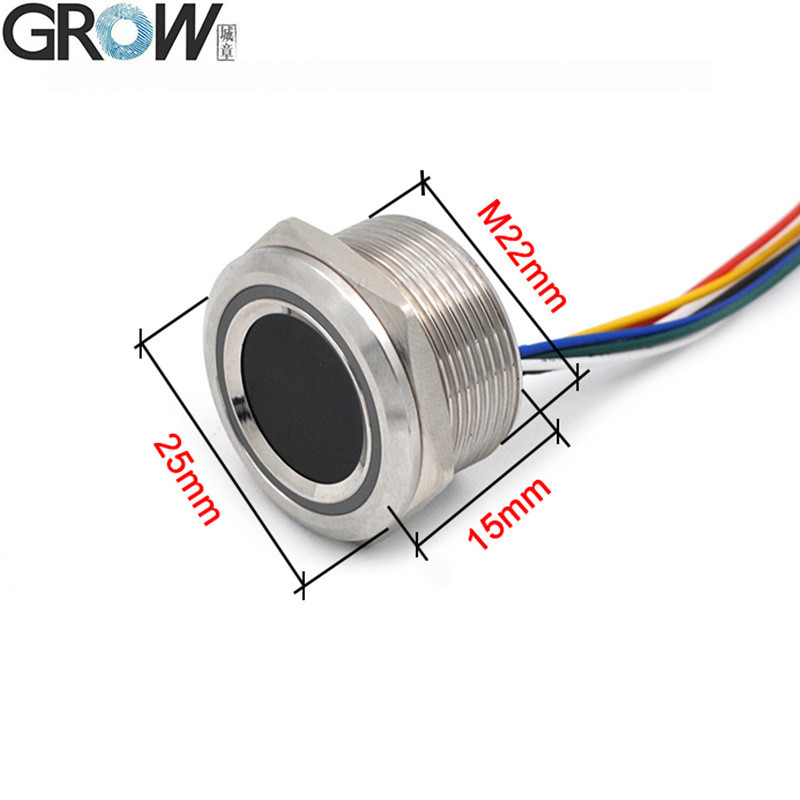

Fingerprint module external size
|
Diameter 25 (mm)
|
|
Fingerprint module inner size
|
Diameter 22 (mm)(M22)
|
|
Fingerprint module height
|
15 (mm)
|
|
Effective collection area
|
Diameter 15.5 (mm)
|
|

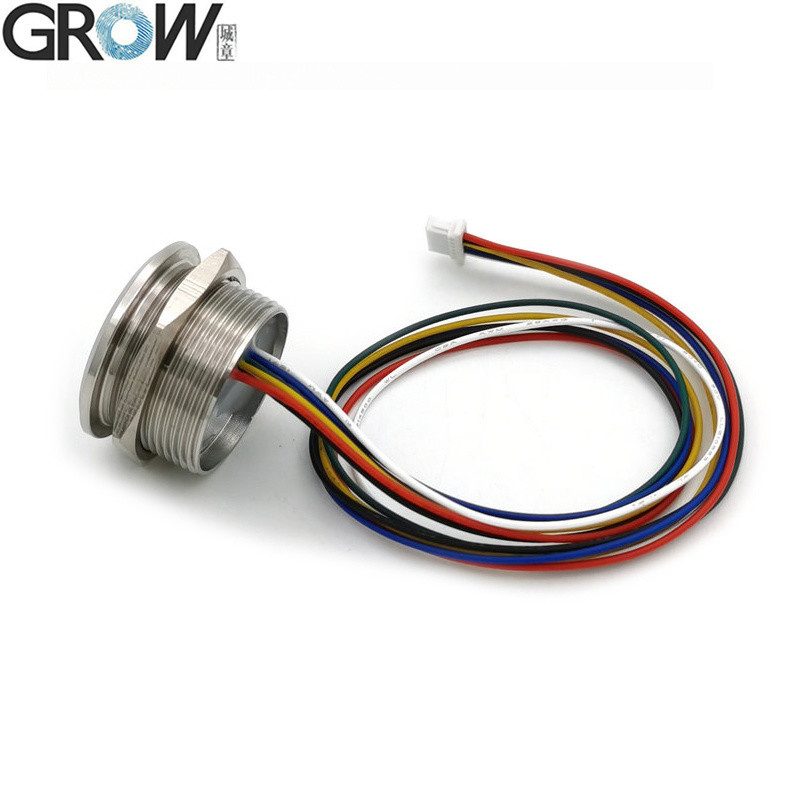

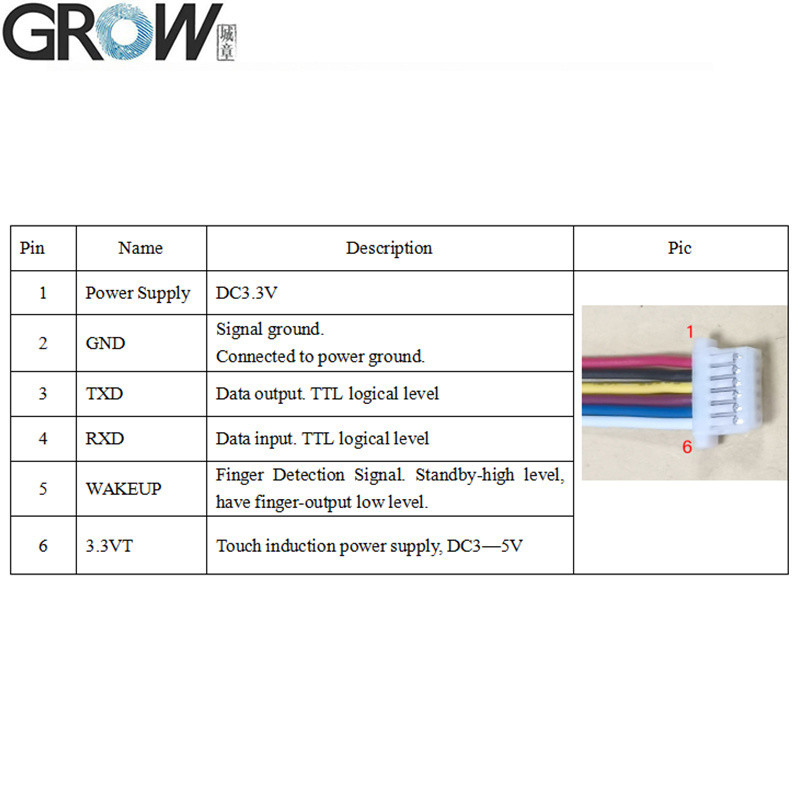

Connector
|
SH1.0-6Pin
|
|
LED Control
|
YES
|
|

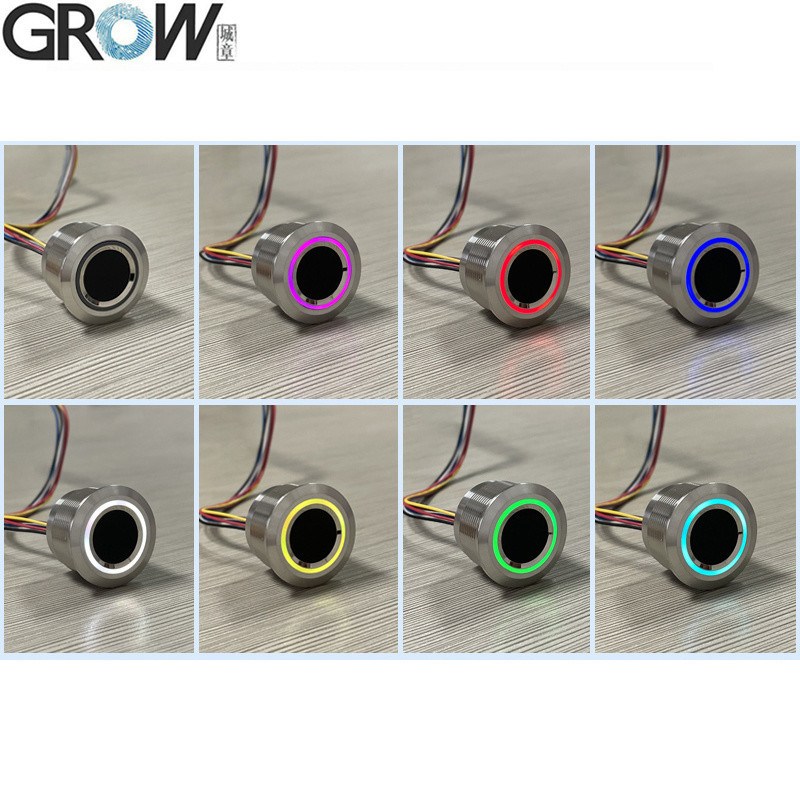

LED Color
|
RGB
|
|
Scanning Speed
|
< 0.2 second
|
|
Verification Speed
|
< 0.3 second
|
|
Matching Method
|
1:1; 1:N
|
|
FRR
|
≤1%
|
|
FAR
|
≤0.001%
|
|
Work environment
|
-20C ---60C
|
|
Work Humidity
|
10-85%
|
|
Anti-static capacity
|
15KV
|
|
Abrasive resistance intensity
|
1 million times
|
|
Communications baud rate (UART):
|
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)
|
