| Place of Origin: | China |
|---|---|
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton |
| Delivery Time: | Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 5000 |
| Model NO.: | GM71 | Operating Current: | 220mA(Max) |
|---|---|---|---|
| Reading Distance: | 30 - 550mm | Interface: | USB/Uart |
| Resolution: | 1d: 3mil 2D: 5mil | Transport Package: | Standard Export Carton Package |
| Specification: | Black | Trademark: | GROW |
| Origin: | China | HS Code: | 8473309000 |
| Supply Ability: | 5000 | Package Size: | 13.00cm * 8.00cm * 9.00cm |
| Package Gross Weight: | 0.200kg | Interface Type: | Uart, USB |
| Scan Element Type: | CMOS | Operating Voltage: | 5V |
| Samples: | US$ 15.5/Piece 1 Piece(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost: | About Shipping Cost And Estimated Delivery Time. | Payment Method: | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
|
Model
|
GM71
|
|
Scan Mode |
640*480 CMOS |
|
Type
|
Barcode Scanner
|
|
Decoding Ability
|
1D: EAN13,ISSN,ISBN,EAN8,UPCA,UPCE,Code128,Code39,Code93, CodeBar,Interleaved 2 of 5, ITF-14, ITF-6, Industrial 2 of 5, Matrix 2 of 5,Code11,MSI-Plessey,GS1-Databar (RSS)
2D: Micro QR,QR,Data Matrix,PDF417,Micro PDF417,Aztec Code
|
|

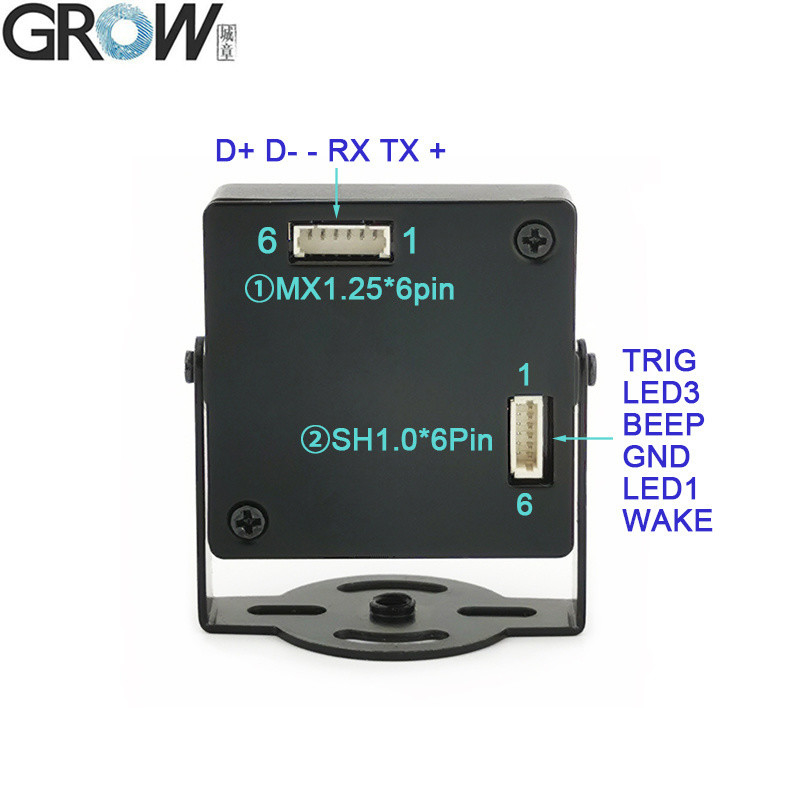

Interface
|
USB2.0 UART
|
|
Contrast
|
≥15%
|
|
Operating Voltage
|
5V
|
|
Operating Current
|
120mA
|
|
Standby Current |
55mA |
|
Weight
|
47g
|
|
Accuracy of reading
|
1D code ≥3mil, 2D code ≥5mil
|
|
Scan Angle
|
Roll: 360° Pitch: 65° Yaw: 65°
|
|
View Angle
|
67° (Horizontal) 53° (Vertical)
|
|
Reading Distance
|
25 - 250mm
|
|
Operating Temperature
|
-20 degrees to 60 degrees
|
|
Storage Temperature
|
-40 degrees to 70 degrees
|
|
Temperature Humidity
|
5% to 95% Relative humidity, Non-condensing
|
