| Place of Origin: | China |
|---|---|
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton |
| Delivery Time: | Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 5000 |

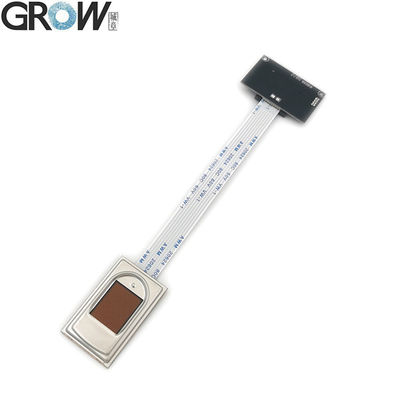

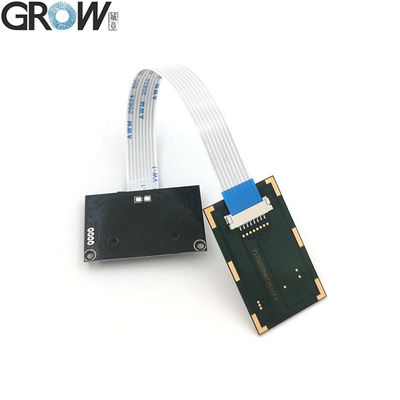

| Model NO.: | R306S | Screen: | As Picture |
|---|---|---|---|
| Communication Interface: | RS232, USB | Fingerprint Capacity: | 1000 |
| Voltage: | DC 4.2-6.0V | Effective Collection Area: | 11 * 15 (mm) |
| Fingerprint Module Size: | 20.4 * 33.4 (mm) | Resolution: | 363 Dpi |
| Fingerprint Chip: | FPC1011f3 | Peak Power Consumption: | 60 Ma |
| Antistatic Capacity: | 15kv | Transport Package: | Standard Export Carton Package |
| Specification: | Fingerprint Module Size: 20.4 * 33.4 (mm) | Trademark: | GROW |
| Origin: | China | HS Code: | 8471609000 |
| Supply Ability: | 5000 | Package Size: | 13.00cm * 8.00cm * 9.00cm |
| Package Gross Weight: | 0.100kg | Voice Service: | Without Voice Service |
| Clock: | Without Clock | Color: | As Picture |
| Customization: | Available | Customized Request | Shipping Cost: | About Shipping Cost And Estimated Delivery Time. |
| Payment Method: | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Power | DC 4.2V-6.0V | Interface | UART(TTL logical level)/ USB 2.0 |
| Working current | 40mA | Matching Mode | 1:1 and 1:N |
| Peak current | 55mA | Sensing Array | 152*200 pixels |
| Resolution | 363 dpi | Average searching time | < 0.2s (1:1000) |
| Baud rate | (9600*N)bps, N=1~12 (default N=6) |
Character file size | 256 bytes |
| Image store time | <0.1s | Template size | 512 bytes |
| Storage capacity | 1000 | Security level | 5 (1, 2, 3, 4, 5(highest)) |
| FAR | <0.0001% | FRR | <1% |
| Working environment | Temp: -20ºC- +45ºC | Storage environment | Temp: -40ºC- +55ºC |
| RH: 10%-85% | RH: <85% | ||
| Window dimension | 11mm*15mm | Sensor Size | 33.4*20.4mm |
