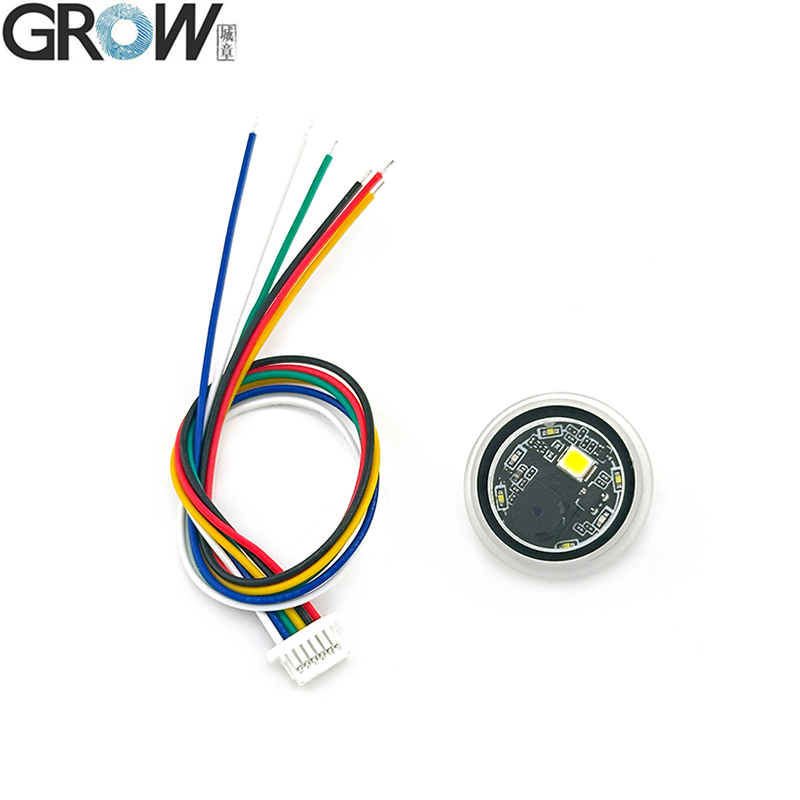

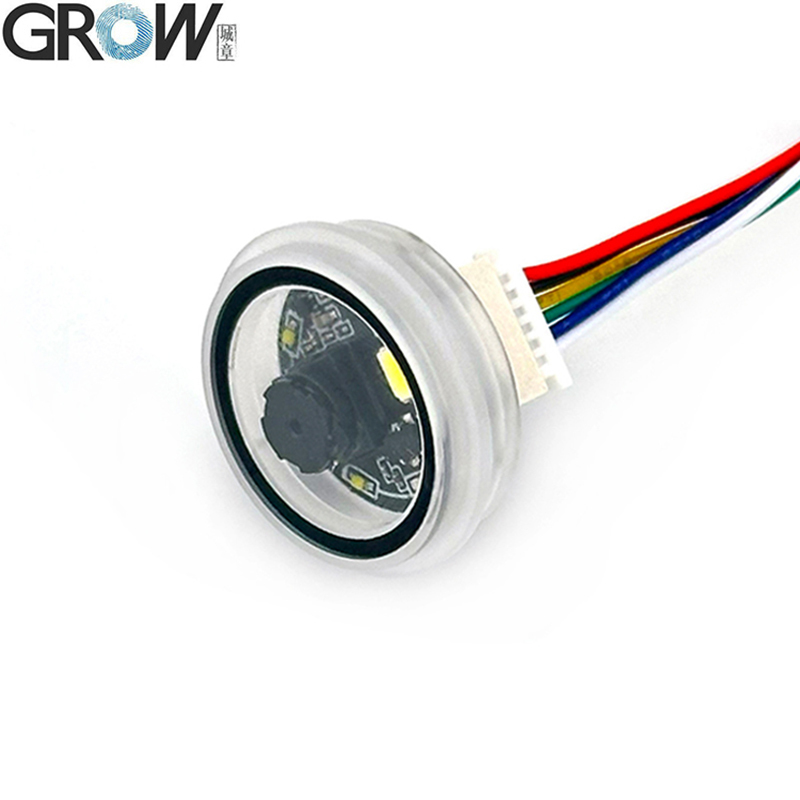

GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows

Basic Information

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T,PayPal
Supply Ability:	5000

Get Best Price Contact Now

Detail Information

Model NO.:	GM861S-LED	Operating Current:	70mA(Max)
Scan Mode:	640*480	Interface:	UART/USB
Resolution:	≥10mil	Weight:	2g
Serial Baud Rate(Uart):	57600	Transport Package:	Standard Export Carton Package
Specification:	Diameter 20.9(mm) Height 6.2(mm)	Trademark:	GROW
Origin:	China	HS Code:	8473309000
Supply Ability:	5000	Package Size:	13.00cm * 8.00cm * 9.00cm
Package Gross Weight:	0.100kg	Interface Type:	UART/USB
Scan Element Type:	CMOS	Operating Voltage:	3.3V
Customization:	Available \| Customized Request	Shipping Cost:	About Shipping Cost And Estimated Delivery Time.
Payment Method:	Initial Payment Full Payment	Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Product Description

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Specifications

Parameter	Performance
Sensor	CMOS
Scan Mode	640*480
GM861S-LED Indicator Light	White light as power on Green light as read successfully

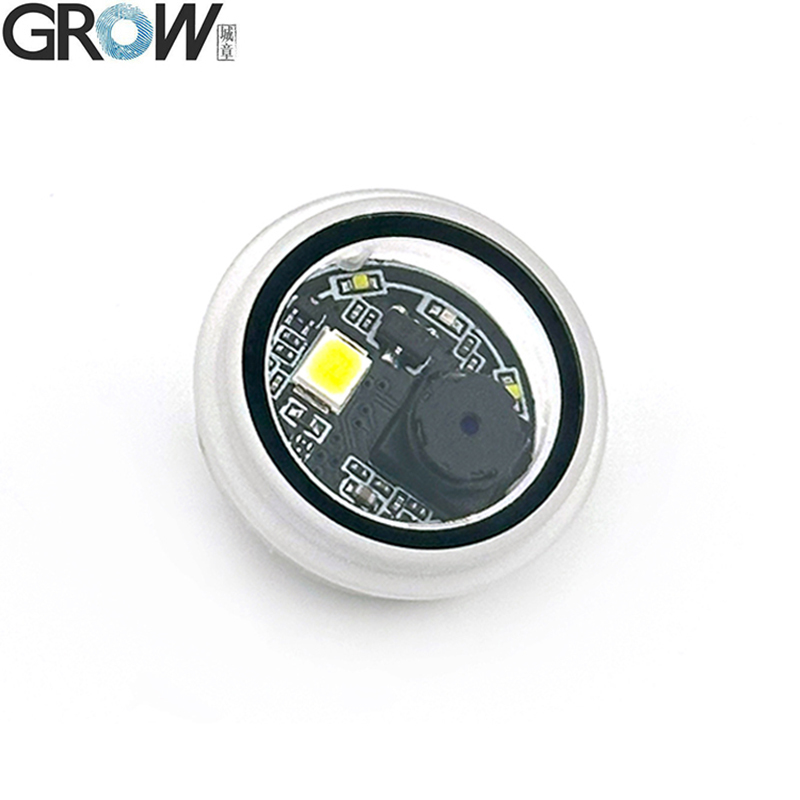

GM861S-LED Fill Light	White light
Read Code Type	1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey,GS1 Composite, GS1-Databar (RSS)
Read Code Type	2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec
GM861S-LED Reading Distance	5-30cm
Contrast*	>25%
Scan Angle**	Roll: 360° Pitch: 65° Yaw: 65°
Viewing Angle	67° (Horizontal) 53° (Vertical)
Accuracy of reading*	≥10mil

Mechanical/electrical Parameters:

Parameter	Performance

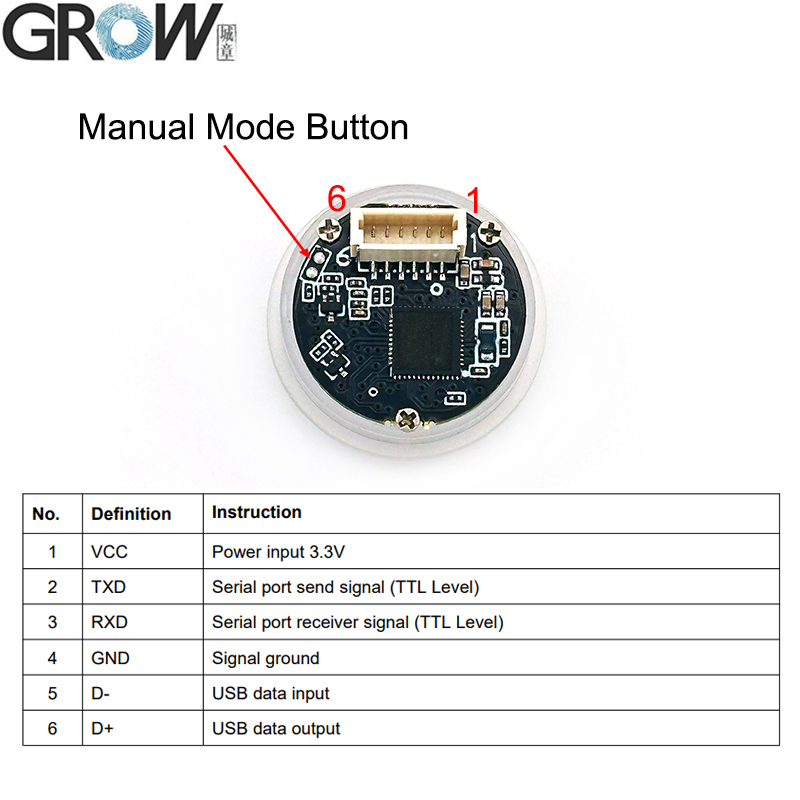

Interface	TTL-232/USB

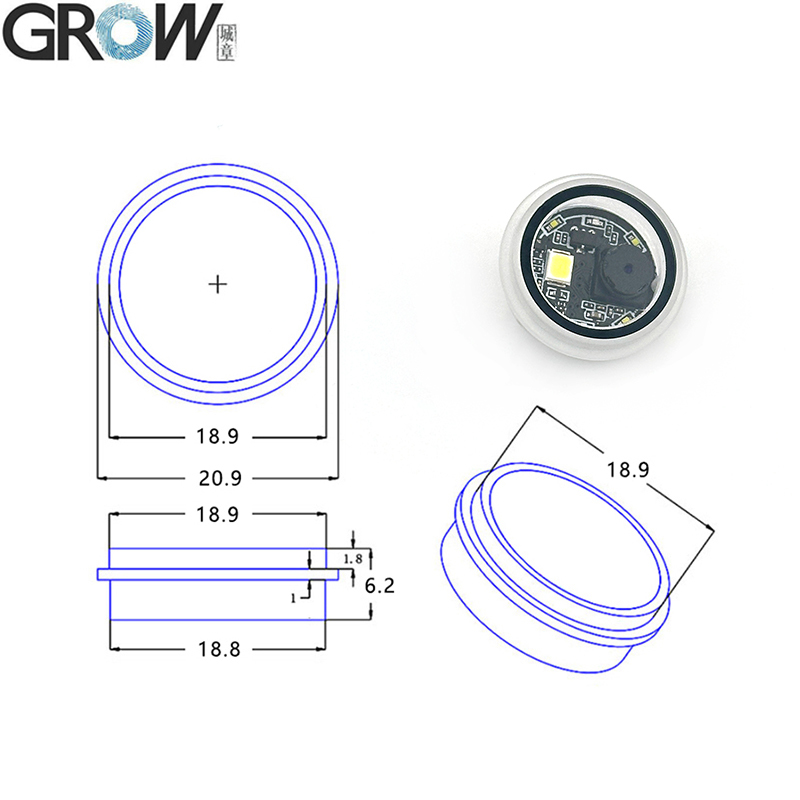

Size(mm)	Diameter 20.9mm Height 6.2mm
Weight	2 g
Prompting Mode	LED Indicator
Operating Voltage	3.3V
Operation Current	70mA(Max)
Standby Current	≤6mA(Typical)
Startup Time	≤250mS (Typical)

Environmental Parameters:

Parameter	Performance
Operating Temperature	-20ºC~60ºC
Storage Temperature	-40ºC~+100ºC
Operating Humidity	5%~95%(Non-Condensing)
Environmental Light	Normal indoor light source
Fall	Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)

Files

·Provide User Manual
·CE Certificate
