| Place of Origin: | China |
|---|---|
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton |
| Delivery Time: | Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 5000 |

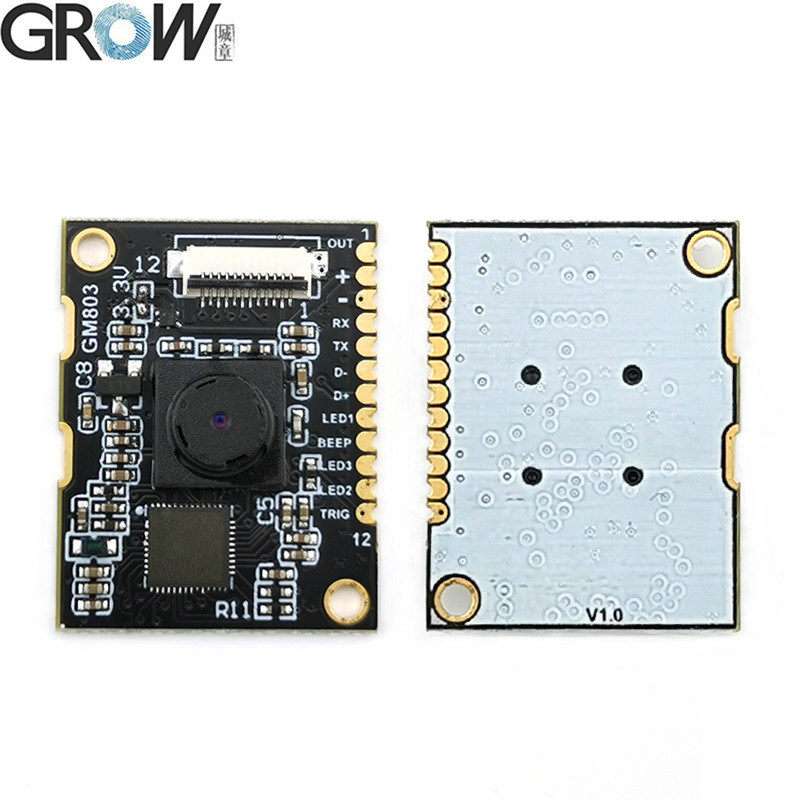

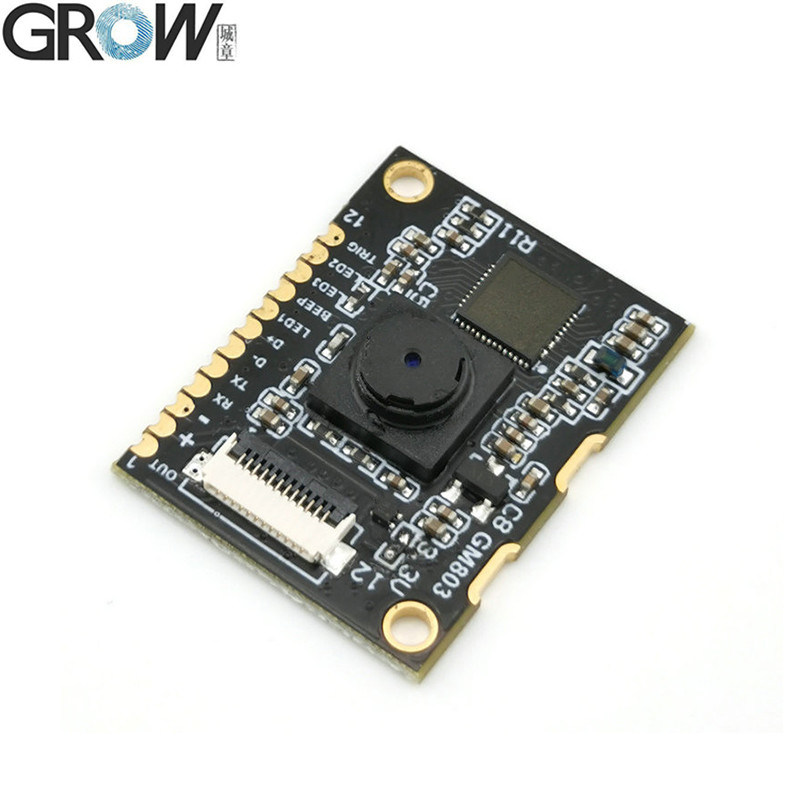

| Model NO.: | GM803 | Operating Current: | 70mA |
|---|---|---|---|

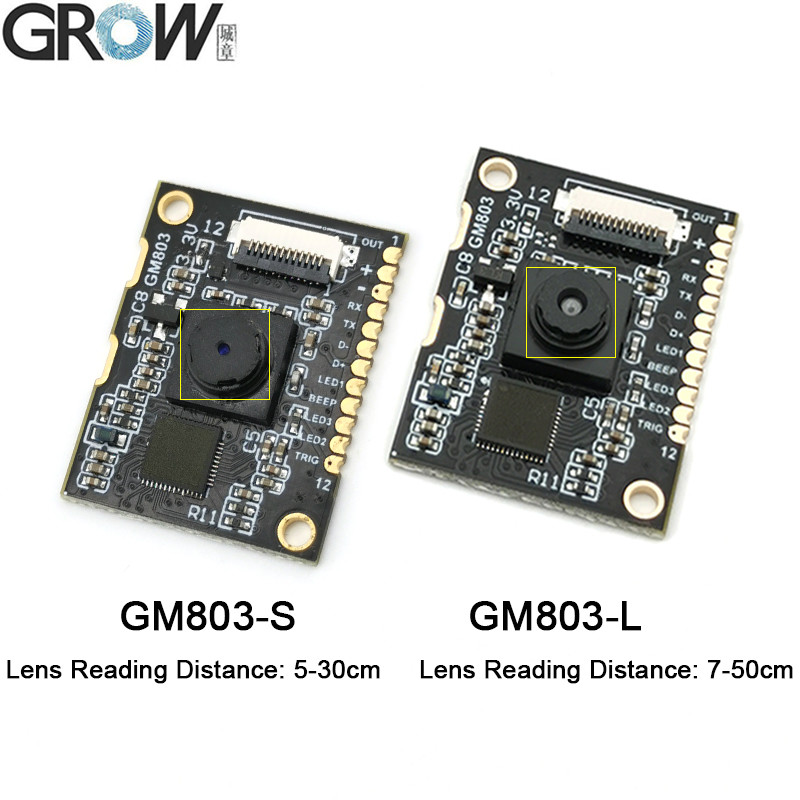

| GM803-S Reading Distance: | 5-30cm | GM803-L Reading Distance: | 7-50cm |
| Interface: | USB/Uart | Resolution: | 10mil |
| Weight: | 2g | Transport Package: | Standard Export Carton Package |
| Specification: | 26*20mm | Trademark: | GROW |
| Origin: | China | HS Code: | 8473309000 |
| Supply Ability: | 5000 | Package Size: | 13.00cm * 8.00cm * 9.00cm |
| Package Gross Weight: | 0.100kg | Interface Type: | Uart, USB |
| Scan Element Type: | CMOS | Operating Voltage: | 3.3V |
| Customization: | Available | Customized Request | Shipping Cost: | About Shipping Cost And Estimated Delivery Time. |
| Payment Method: | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Parameter | Performance |
| Sensor | CMOS |
| Scan Mode | 640*480 |
| Lighting | It is recommended to use white light as lighting, should be uniform and soft |
| Indicator Light | It is recommended to use green/blue light as read successfully |
|
|
1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5, Matrix2of5, Code 39,Code11, MSI-Plessey,GS1-Databar (RSS) |
| 2D: QRCode, DataMatrix, PDF417 | |
| GM803-S Reading Distance |
|
| GM803-L Reading Distance |
|
| Contrast* | >25% |
| Scan Angle** | Roll:360°Pitch:65°Yaw:65° |
| Viewing Angle | 67°(Horizontal)53°(Vertical) |
| Accuracy of reading* | ≥10mil |
| Parameter | Performance |
| Interface | TTL-232/USB |
| Size(mm) | 26*20 mm |
| Weight | 2g |
| Prompting mode | Buzzer LED Indicator |
| OperatingVoltage | 3.3V |
| Operation Current | 70mA(Max) |
| Standby Current | ≤6mA(Typical) |
| Startup time | ≤250mS (Typical) |
| Parameter | Performance |
| Operatingtemperature | -20ºC~60ºC |
| Storage Temperature | -40ºC~+70ºC |
| Operating Humidity | 5%~95%(Non-Condensing) |
| Environmental Light | Normal indoor light source |
| Fall | Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly) |
