Detail Information

Model NO.:	R308	Screen:	As Picture
Communication Interface:	RS232	Fingerprint Capacity:	500
Voltage:	DC 4.2-6.0	Resolution:	500 Dpi
Sensor Life:	100 Million Times	Transport Package:	Standard Export Carton Package
Specification:	55.520.521 Mm	Trademark:	GROW
Origin:	China	HS Code:	8471609000
Supply Ability:	5000	Voice Service:	Without Voice Service
Clock:	Without Clock	Color:	As Picture
Samples:	US$ 11/Piece 1 Piece(Min.Order) \|	Customization:	Available \| Customized Request
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.	Payment Method:	Initial Payment Full Payment
Currency:	US$	Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:	500 Capacity Fingerprint Sensor Module , 500 Capacity finger print arduino , Low power consumption Fingerprint Sensor Module

Product Description

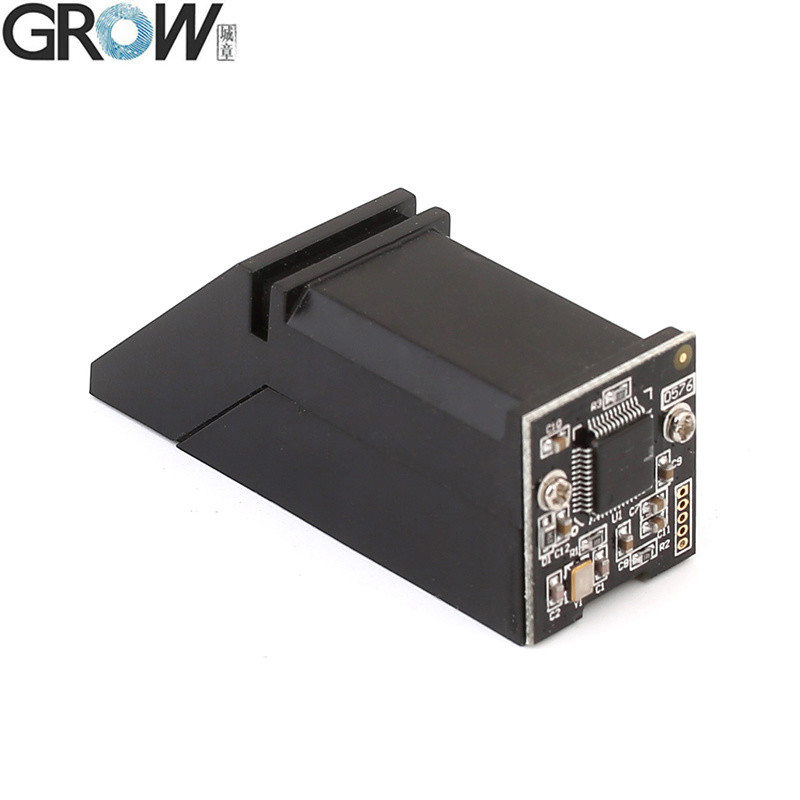

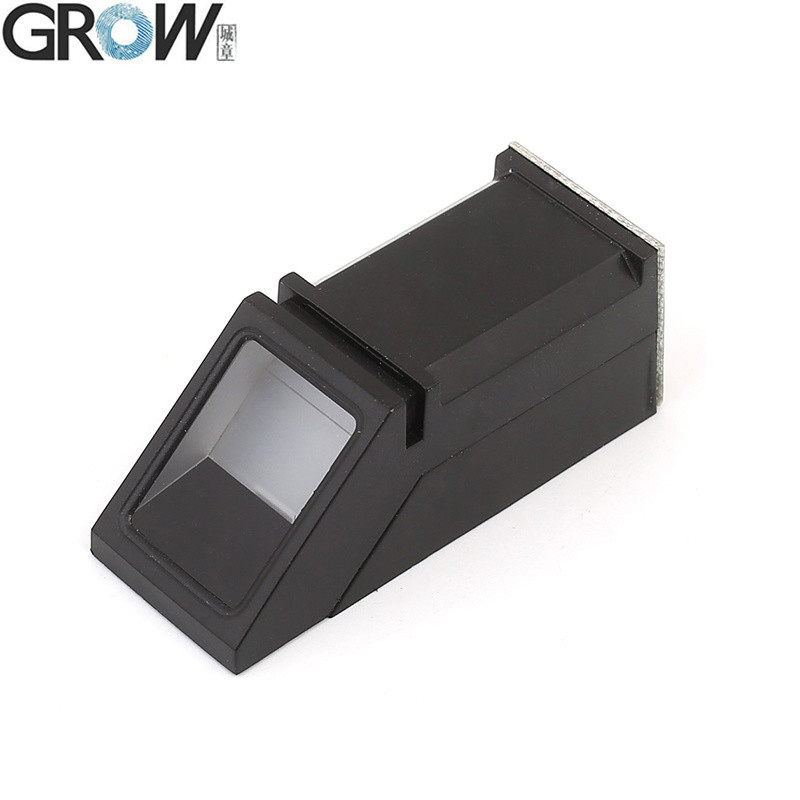

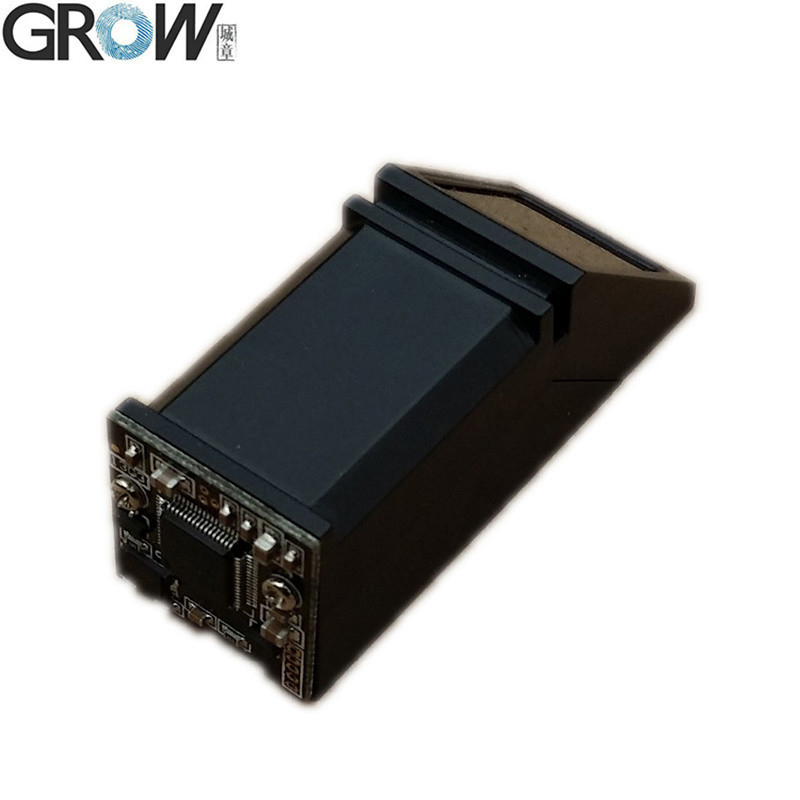

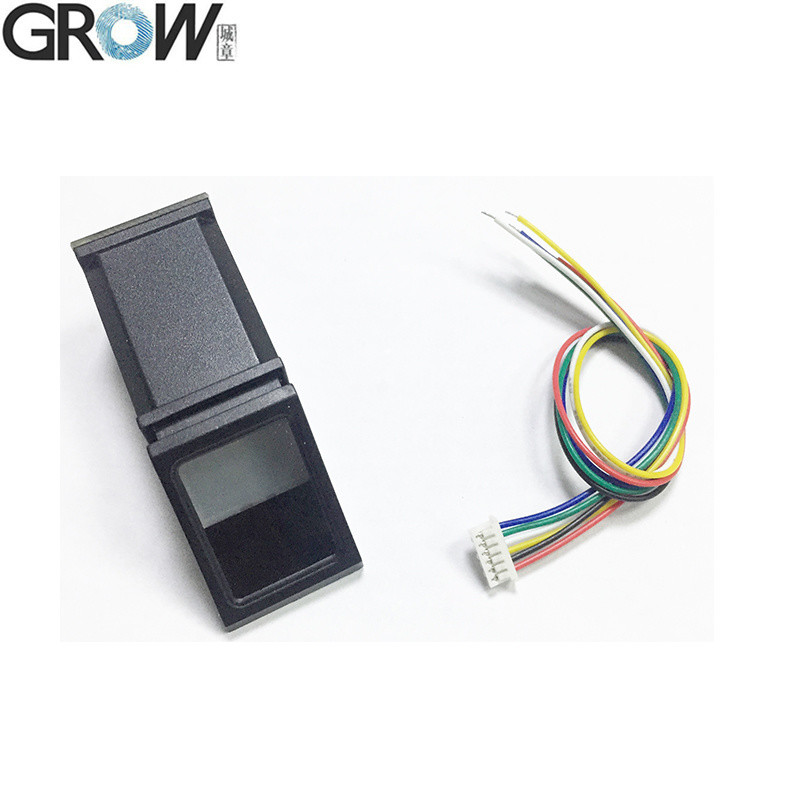

Grow R308 Uart Optical Fingerprint Module with 500 Storage Capacity

Description

1. Integrated image collecting and algorithm chip together, ALL-in-One
2. Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
3. Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
4. Low power consumption, low cost, small size, excellent performance
5. Professional optical technology, precise module manufacturing technics
6. Good image processing capabilities, can successfully capture image up to resolution 500 dpi
7. A total of eight instruction,Convenient MCU development
8. Finger detection signal output

Specifications

·Type: Optical
·Interface: UART(TTL logical level)
·Resolution: 500 DPI
·Work Current: Typical ≤50 mA, Peak 120mA
·Voltage: DC 4.2-6.0V
·Fingerprint capacity: 500

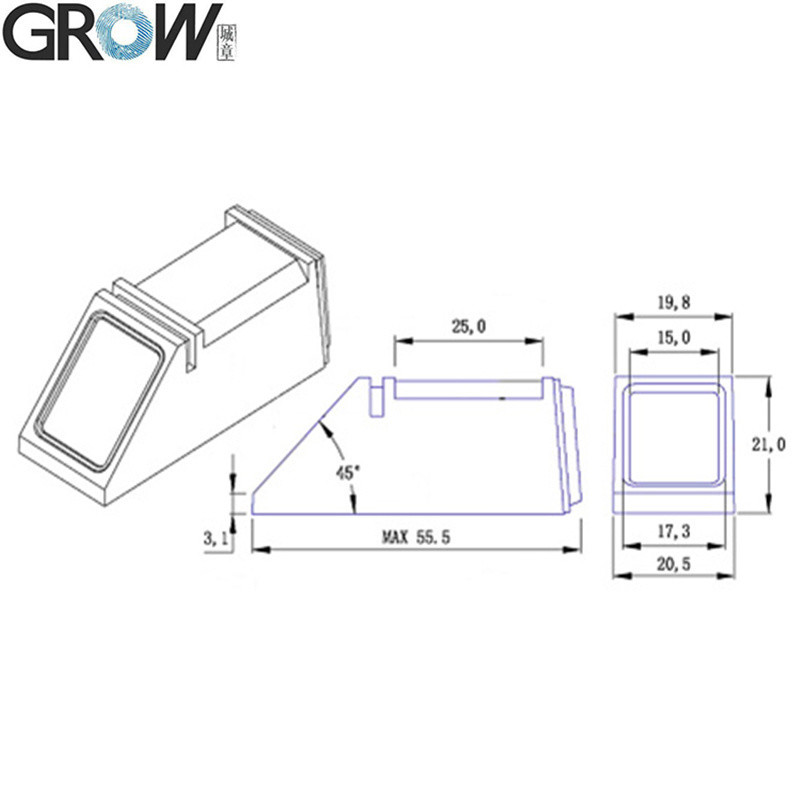

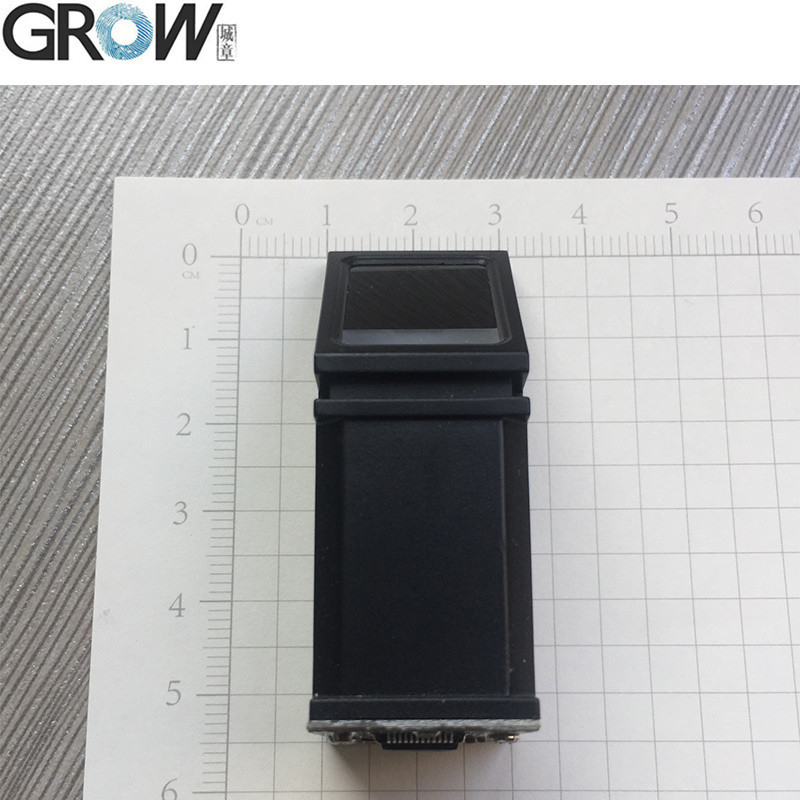

·Dimension: 55.5 *20.5*21 (mm)
·Character file Size: 256 bytes
·Template Size: 512 bytes
·Scanning Speed: < 0.3 second
·Verification Speed: < 0.3 second
·Matching Method: 1:N
·FRR (False Rejection Ratio): ≤0.1%
·FAR (False Acceptance Ratio): ≤0.0001%
·Operating Environment Temperature: -20°C ---45°C
·RS232 communications baud rate: 57600BPS (can not change)

Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual

Grow R308 Uart Optical Fingerprint Module with 500 Storage Capacity

Tag:

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T, PayPal
Supply Ability:	5000

500 Capacity Fingerprint Sensor Module Low Power Consumption
