Detail Information

Communication Interface:	RS232, USB	Fingerprint Capacity:	100
Fingerprint:	100	Password:	10 Sets
Material:	Zinc Alloy	Stand-by Mode Current:	Less Than 25 Ua
Humidity:	Rh10-92%	Service Life:	5 Million Times
Transport Package:	Standard Export Carton Package	Specification:	Power: 4 AA Batteries
Trademark:	GROW	Origin:	China
Supply Ability:	5000	Voice Service:	Without Voice Service
Clock:	Without Clock	Color:	Silver
Samples:	US$ 34.9/Piece 1 Piece(Min.Order) \|	Customization:	Available \| Customized Request
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.	Payment Method:	Initial Payment Full Payment
Currency:	US$	Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:	100 Capacity Fingerprint Cabinet Lock , 100 Capacity password cabinet lock , Fingerprint Cabinet Lock For Home

Product Description

Description

New Design G16 Capacitive Password Fingerpirnt Cabinet Lock

Technical Paremeters

Type	G16 Fingerprint and Password Cabinet Lock
Fingerprint capacity	100 pieces
Password number	10 sets
Power	4 AA batteries
Standby current	less than 25uA
Storage Temperature	-30°C~65 °C
Working condition	-20°C~55 °C
Humidity	RH10-92%

User Manual For G16

1.Register fingerprint:
Press shortly the SET button, and hearing the music, the blue panel indicator lightened; then press finger on fingerprint recognition area, fingerprint registered successful when hearing music. Fingerprint can be registered continuously, it can be registered 100 pieces fingerprints; When hear "DiDiDiDiDiDi", it means the fingerprint library is full; Wait a few seconds to automatically exit the registration status.

2.Setup Password:
After fingerprint passed, press [OK]new password[OK]new password[OK],(after press[OK],the bule light flashes means in edit mode), password registered successful when hearing music; it can set 10 sets of passwords, the password length: 3-8 bits (support Mask Function).

3.Use Password: Start by touching [Touch Sensitive Area] with your finger,white light On, press [Password][OK]

4.Delete Password: After fingerprint passed, long press the [C] until hearing the music.

5.Factory Default: Press SET button until hearing the music and "Di---DiDiDi", means fingerprints and passwords deleted successfully, and back to factory default. Any fingerprint can be used for the state of factory default, and this function disabled after fingerprint registered.

Note:
Emergency power: If the battery is low when open it, hear the "DiDiDi", please replace the battery in time. When there is no electricity, plug the emergency power supply to DC5V charge pal.

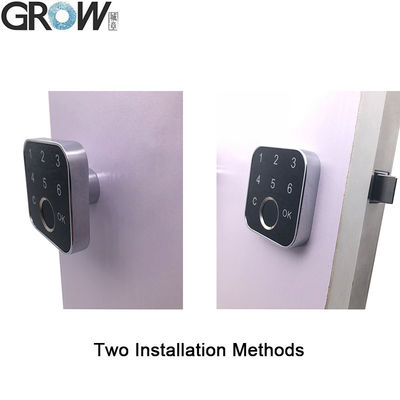

GROW G16 Fingerprint Electric Cabinet Drawer Lock Keypad With Two Installation Methods For Office Home Bank 2

Tag:

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T,PayPal
Supply Ability:	5000

GROW G16 Fingerprint Electric Cabinet Drawer Lock Keypad With Two Installation Methods For Office Home Bank

100 Capacity Fingerprint Cabinet Lock

100 Capacity password cabinet lock

Fingerprint Cabinet Lock For Home

Description

Technical Paremeters

User Manual For G16
