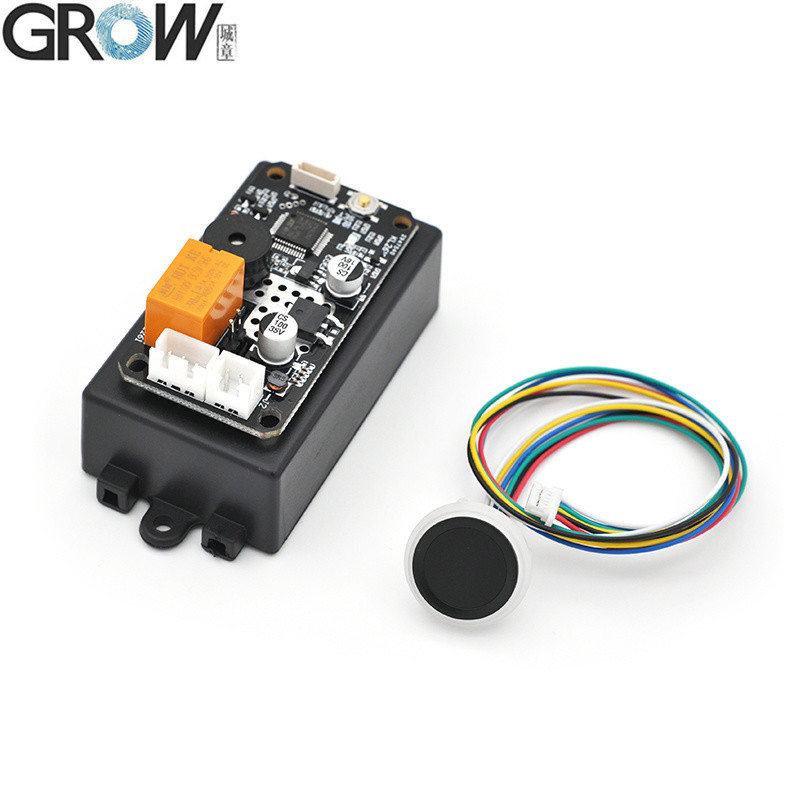

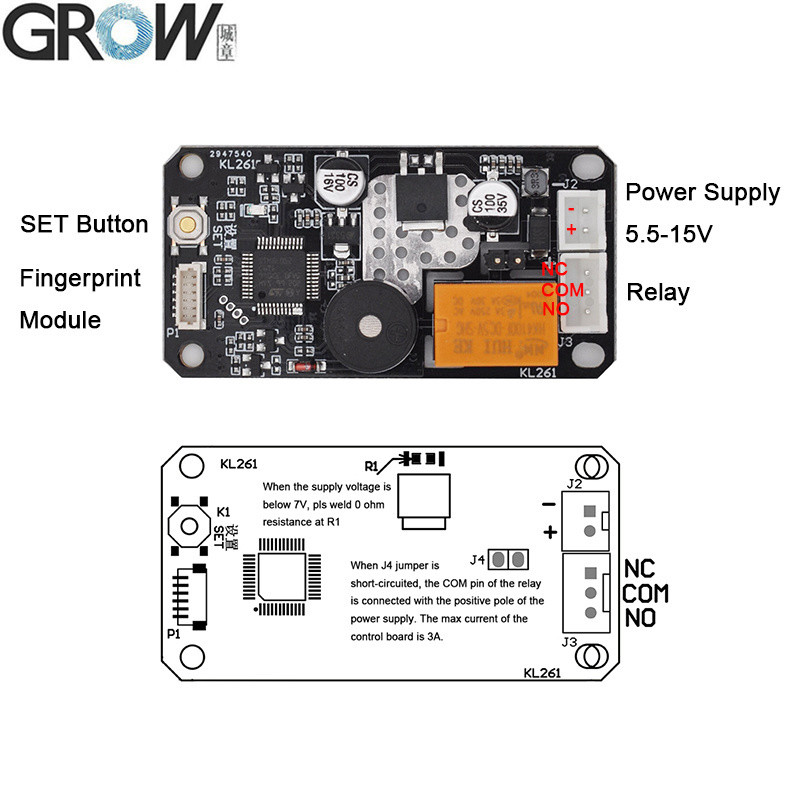

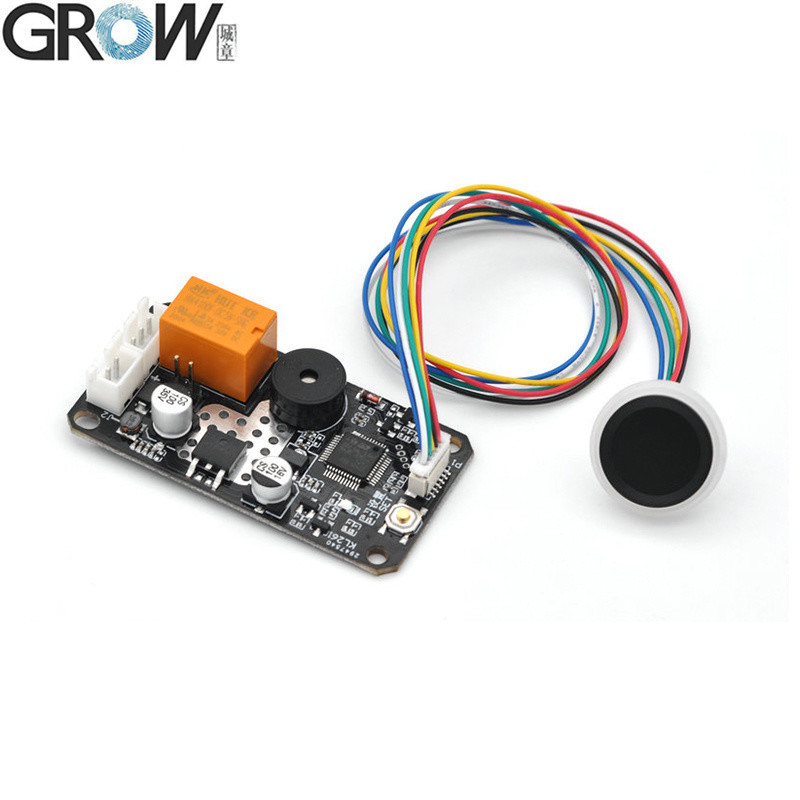

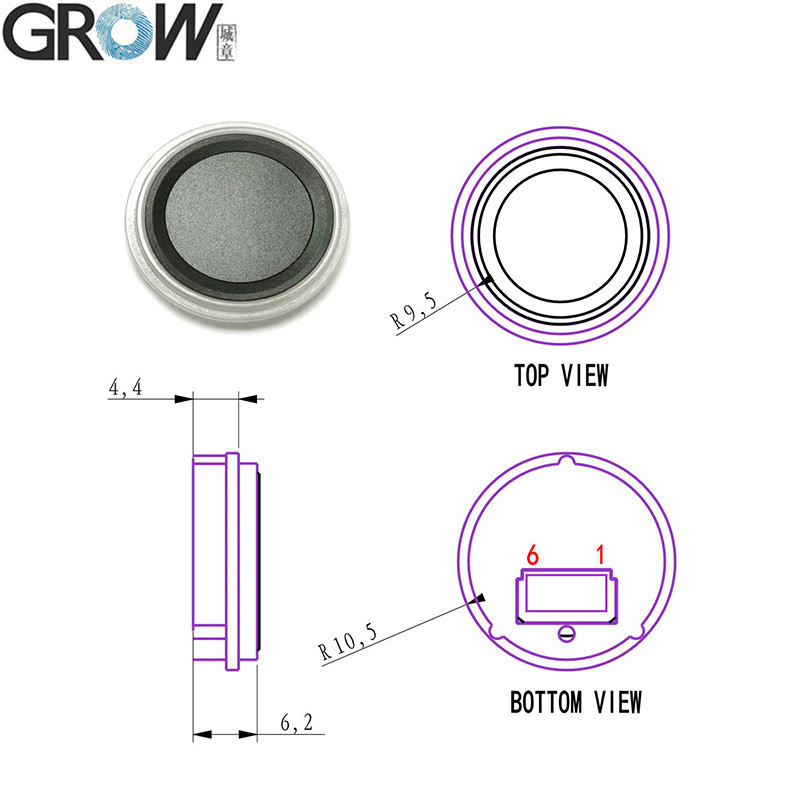

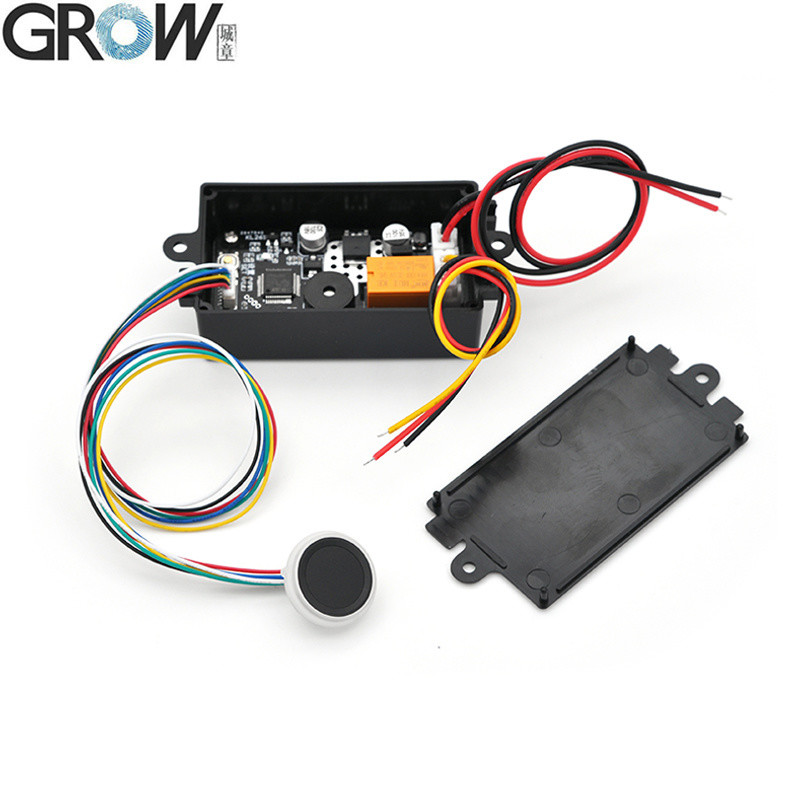

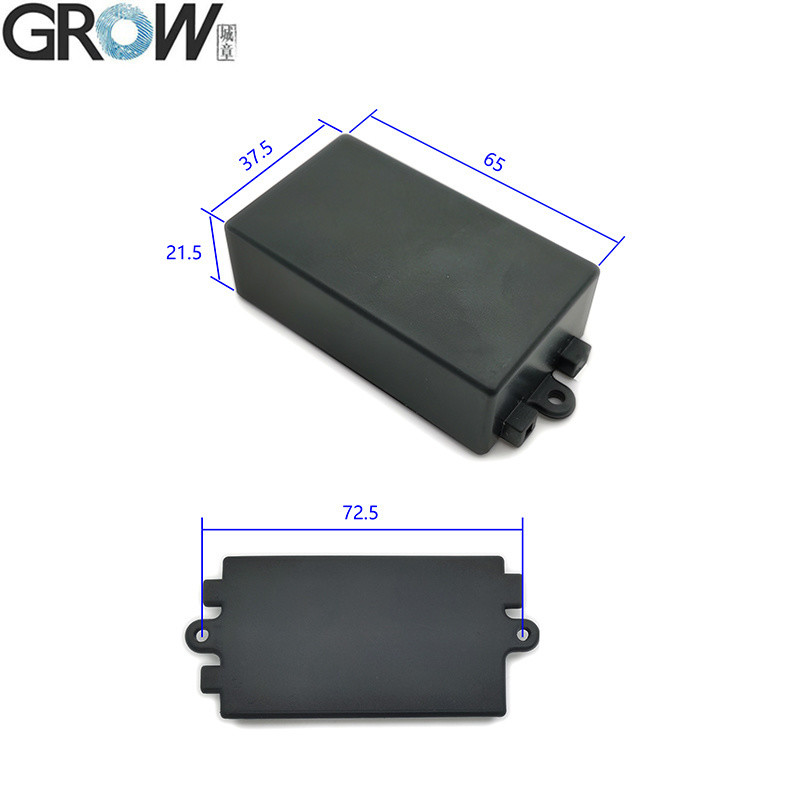

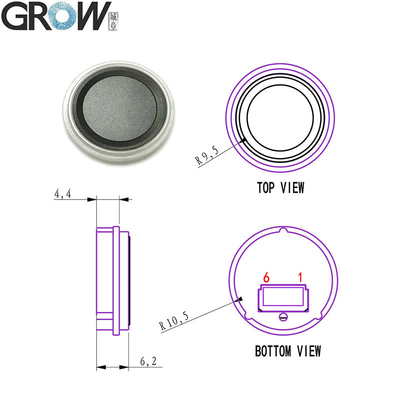

KL261Technical Parameters
·Power supply: DC 5.5-15V, >500mA
·Standby current: 25uA(DC12V)
·Peak current: 200mA(DC12V)
·Fingerprint capacity: 100 pieces (Admin Fingerprint: 20 pieces, User Fingerprint: 80 pieces)
Helpful hints:
If need to connect with car,motorcycle, and needs high security product,suggest to high pixel fingerprint module, like K202+R503,K215-V1.3+R503,KL216 +R503 board and so on.
The KL261+R558S/R558 used low sensing array, only have 112*88 pixel, when register fingerprint, you have to put multiple time in register fingerprint.
If you have high requirements for products and design, we suggest you can chose R503,R502-A serials products, like K202+R503,K215-V1.3+R503,KL216 +R503 board and so on.
KL261 Operation Instruction
1.Register Administrator Fingerprint: Long press the SET button,release finger when the fingerprint module shows purple indicator light and flash fast,put the same admin finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously and it can register 20 pieces administrator fingerprint; if no need adding fingerprint more, waiting a few seconds to exit. If the administrator is fully registered,it will automatically exit the administrator registration state after hear "DiDiDi". It will start register user fingerprint if press SET button again.
2.Register User Fingerprint: Press the administrator fingerprint until shows blue indicator light and hear the music,means can add user fingerprint. Put the same user finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful.Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.
3.Delete User Fingerprint: Press the administrator fingerprint until shows red indicator light and hear "DiDiDi" beep and music,means user fingerprints are deleted.
4.Jog Mode Relay Time Setting: Long press the SET button,release finger when hear "DiDi" beep and the fingerprint module shows yellow indicator light and flash fast. Then short press the SET button, each press increases by 0.5 seconds, increasing from 0. The Max setting time is 4 hours.
5.Self-locking Mode: Long press the SET button,release finger when hear "DiDiDi" beep and the fingerprint module shows cyan indicator light and flash fast. In this mode, relay closed when fingerprint passed, relay will be released when pass fingerprint again.
6.Ignition Mode: Long press the SET button,release finger when hear "DiDiDiDi" beep and the fingerprint module shows green indicator light and flash fast. In this mode, relay closed when fingerprint passed, relay will be released when removing finger.
7.Back to factory default: Long press the SET button,until hear "DiDiDiDiDiDi" beep, the fingerprint module shows red indicator light and flash fast,hear music and the module flash green and white light,means initialization operation successful.
Note:
1.Any fingerprint can be used in the factory state, but the function will be invalid after the fingerprint is registered.
Product Files
·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on. ·Provide User Manual You can dowload the KL261 user manual from this website link:https://hzgrow.en.made-in-china.com If need SDK files,pls contact us.
