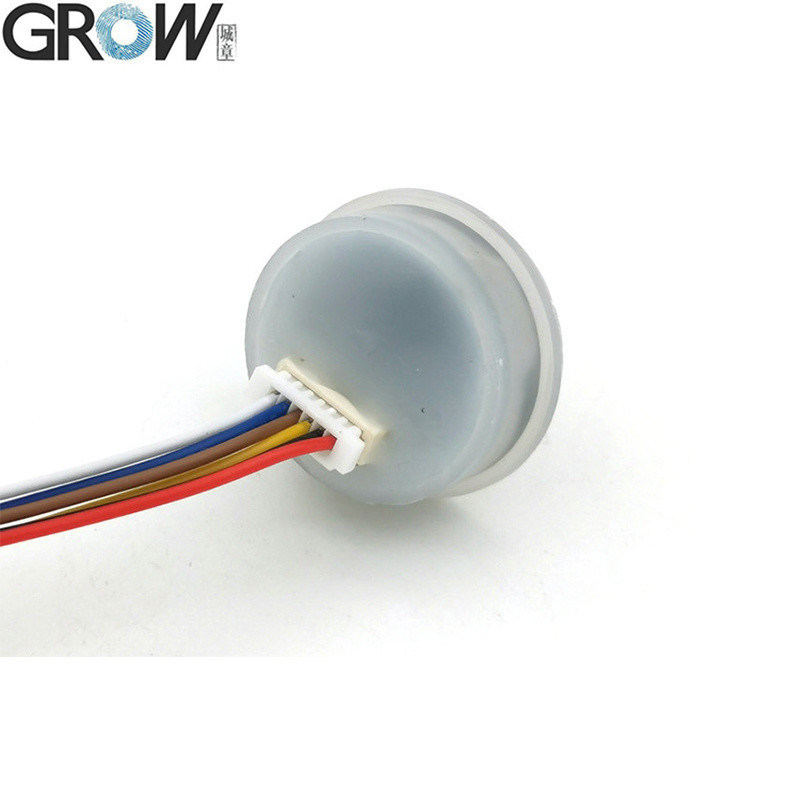

GROW K236-A+R502-F Battery Amin/User DC6V 4*AAA K236-A Fingerprint Control Board+R502-F Waterproof Small Fingerprint Module

GROW K236-A+R502-F Battery Amin/User DC6V 4*AAA K236-A Fingerprint Control Board+R502-F Waterproof Small Fingerprint Module
GROW K236-A+R502-F Battery Amin/User DC6V 4*AAA K236-A Fingerprint Control Board+R502-F Waterproof Small Fingerprint Module
GROW K236-A+R502-F Battery Amin/User DC6V 4*AAA K236-A Fingerprint Control Board+R502-F Waterproof Small Fingerprint Module GROW K236-A+R502-F Battery Amin/User DC6V 4*AAA K236-A Fingerprint Control Board+R502-F Waterproof Small Fingerprint Module GROW K236-A+R502-F Battery Amin/User DC6V 4*AAA K236-A Fingerprint Control Board+R502-F Waterproof Small Fingerprint Module GROW K236-A+R502-F Battery Amin/User DC6V 4*AAA K236-A Fingerprint Control Board+R502-F Waterproof Small Fingerprint Module GROW K236-A+R502-F Battery Amin/User DC6V 4*AAA K236-A Fingerprint Control Board+R502-F Waterproof Small Fingerprint Module GROW K236-A+R502-F Battery Amin/User DC6V 4*AAA K236-A Fingerprint Control Board+R502-F Waterproof Small Fingerprint Module
Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms: T/T,PayPal
Supply Ability: 5000
Get Best Price Contact Now
Detail Information
Model NO.: K236-a+R502-F Screen: As Picture
Communication Interface: RS232, USB Fingerprint Capacity: 80
Power Supply: DC 6V (4*AAA Battery) Standby Current: <7ua
Output: DC5-6V, 300mA K236-a Size: 87*47.1*16.5mm
R502-F Size: Diameter 21.5mm Transport Package: Standard Export Carton Package
Specification: DC 6V (4*AAA Battery) Trademark: GROW
Origin: China HS Code: 8471609000
Supply Ability: 5000 Voice Service: Without Voice Service
Clock: Without Clock Color: As Picture
Samples: US$ 23.4/Piece 1 Piece(Min.Order) | Customization: Available | Customized Request
Shipping Cost: About Shipping Cost And Estimated Delivery Time. Payment Method: Initial Payment Full Payment
Currency: US$ Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Product Description

GROW K236-A+R502-F Battery Amin/User DC6V 4*AAA K236-A Fingerprint Control Board+R502-F Waterproof Small Fingerprint Module 0

K236-A Technical Parameters

*K236-A fingerprint control board, using battery box and circuit board integrated and low power consumption design.
*The power supply is 4*AAA battery.
*Have administrator and user fingerprint function.
*Two output modes can be selected, suitable for electronic lock body, relay and other equipment.
*K236-A can be used with R502-A, R502-AW, R502-F,R503,R503-M22 fingerprint module.


·Power supply: DC 6V (4*AAA Battery)
·Control Board Stand by current: <7uA
·Fingerprint capacity:
   Administrator fingerprint: 20 pieces
   User fingerprint: 60 pieces
·Output: DC5-6V, 300mA
·Size:87*47.1*16.5mm


K236-A Operation Instruction

1.Register Administrator Fingerprint:Press SET button shortly,system in administrator register status and blue indicator light flash fast, put the same finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful.Fingerprint can be registered continuously.If no need for adding fingerprint, waitinga few seconds to exit.
2.Register User Fingerprint:Press the administrator fingerprint until the blue indicator light flash fast and hear the music,means can add user fingerprint.Put the same user finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously. If no need for adding fingerprint, waiting a few seconds to exit.

3.Delete User Fingerprint:Press the administrator fingerprint until the red indicator light flash fast and hear"Di",move away the finger,the red indicator light flash slowly,press finger again,hear"Di-Di-Di"and music,means user fingerprints are deleted.

4.Back toFactory Default:Long press the SET button until hear "Di-Di-Di" beep and release the button,means initialization operation successful.

5.Mode Selection:set by the toggle switch:

[Right]:Output DC5V and keep 0.5 second; stop 5 seconds,then minusvoltage outputted and keep 0.5 seconds.

[Left]:Keeping output DC5V until removing the finger.

Note:
1.When the voltage is less than DC4.7V, the red light lightens, means the low voltage warning.
2.In the "[Left]" mode,when need to register/delete user fingerprint,after press the administrator fingerprint successfully,lifting the finger then press the same administrator finger again until the blue/red indicator light flash fast and hear the music,then it can register/delete user fingerprint.
3.Any fingerprint can be used when factory default, and this function disabled after fingerprint registered.


R502-F Specification
Model
R502-F
Type
Capacitive Fingerprint Module
Interface
UART(TTL)
Resolution
508 DPI
Voltage
DC 3.3V
Fingerprint Capacity
200
Sensing array
192*192 pixel
Working current
20mA
Standby current
Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size
Diameter 21.5 (mm)
Fingerprint module inner size
Diameter 19.5 (mm)
Fingerprint module height
9 (mm)
Effective collection area
Diameter 15.5 (mm)
Connector
SH 1.0-6Pin
LED Control
YES
LED Color
Blue and Red
Scanning Speed
< 0.2 second
Verification Speed
< 0.3 second
Matching Method
1:1; 1:N
FRR
≤1%
FAR
≤0.001%
Work environment
-20C ---60C
Work Humidity
10-85%
Anti-static capacity
15KV
Abrasive resistance intensity
1 million times
Communications baud rate (UART):
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)



 Files:
·ProvideFree Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual


If need SDK files,pls contact us.
