K236-A Technical Parameters

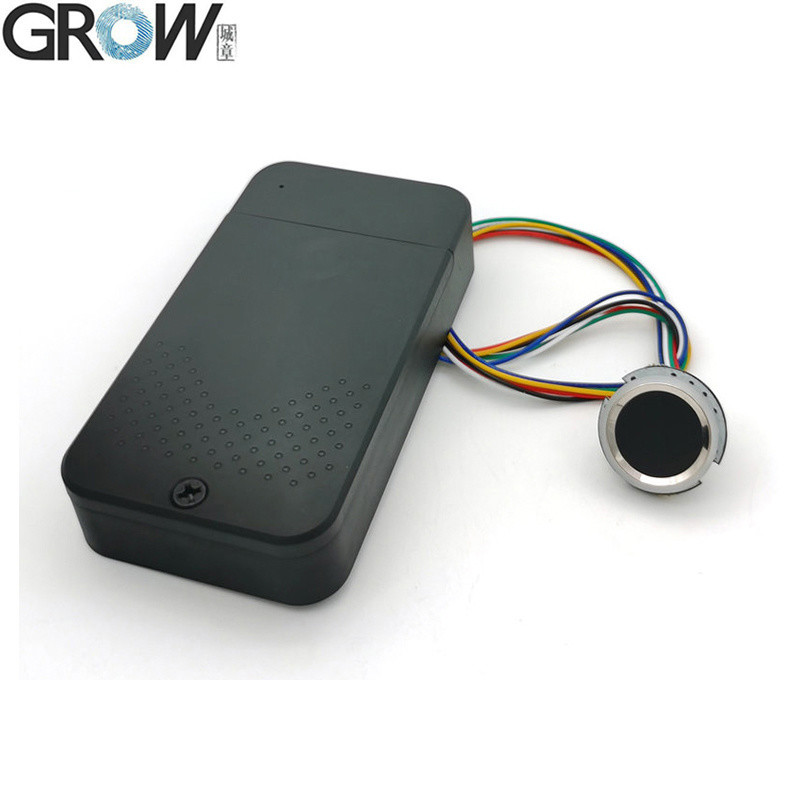

*K236-A fingerprint control board, using battery box and circuit board integrated and low power consumption design.
*The power supply is 4*AAA battery.
*Have administrator and user fingerprint function.
*Two output modes can be selected, suitable for electronic lock body, relay and other equipment.
*K236-A can be used with R502, R502A, R502AW, R503 fingerprint module.

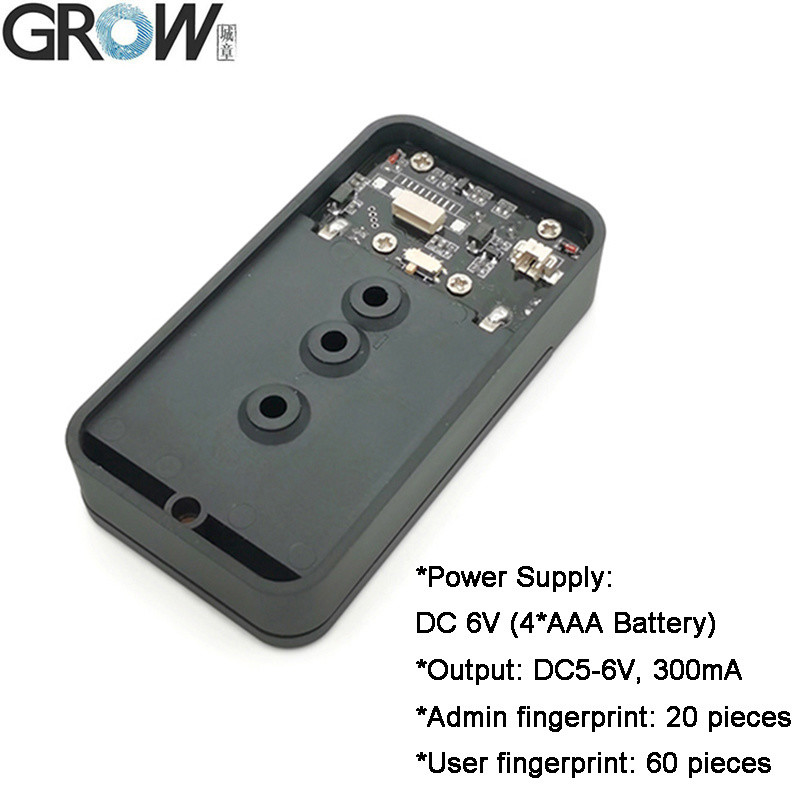

·Power supply: DC 6V (4*AAA Battery)
·Control Board Stand by current: <7uA
·Fingerprint capacity:
Administrator fingerprint: 20 pieces
User fingerprint: 60 pieces
·Output: DC5-6V, 300mA

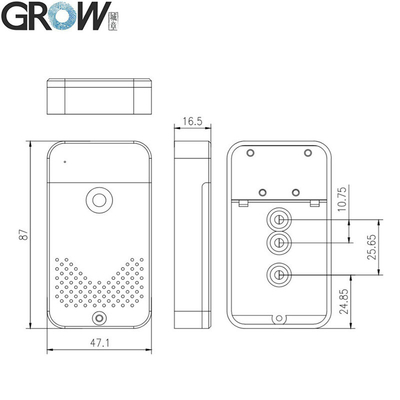

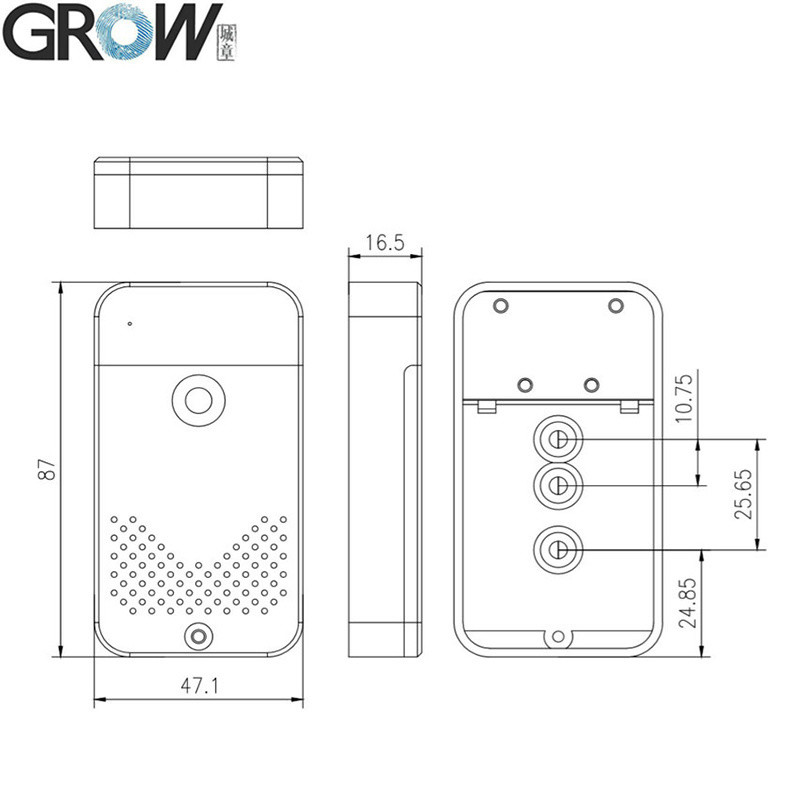

·Size:87*47.1*16.5mm


K236-A Operation Instruction

1.Register Administrator Fingerprint:Press SET button shortly,system in administrator register status and blue indicator light flash fast, put the same finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful.Fingerprint can be registered continuously.If no need for adding fingerprint, waitinga few seconds to exit.
2.Register User Fingerprint:Press the administrator fingerprint until the blue indicator light flash fast and hear the music,means can add user fingerprint.Put the same user finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously. If no need for adding fingerprint, waiting a few seconds to exit.

3.Delete User Fingerprint:Press the administrator fingerprint until the red indicator light flash fast and hear"Di",move away the finger,the red indicator light flash slowly,press finger again,hear"Di-Di-Di"and music,means user fingerprints are deleted.

4.Back toFactory Default:Long press the SET button until hear "Di-Di-Di" beep and release the button,means initialization operation successful.

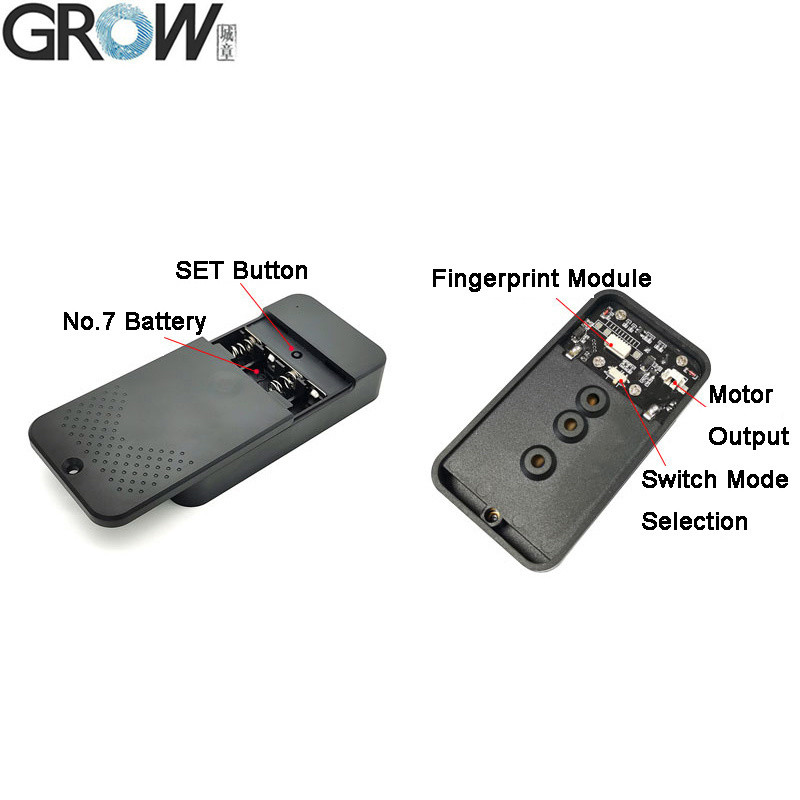

5.Mode Selection:set by the toggle switch:

[Right]:Output DC5V and keep 0.5 second; stop 5 seconds,then minusvoltage outputted and keep 0.5 seconds.

[Left]:Keeping output DC5V until removing the finger.

Note:
1.When the voltage is less than DC4.7V, the red light lightens, means the low voltage warning.
2.In the "[Left]" mode,when need to register/delete user fingerprint,after press the administrator fingerprint successfully,lifting the finger then press the same administrator finger again until the blue/red indicator light flash fast and hear the music,then it can register/delete user fingerprint.
3.Any fingerprint can be used when factory default, and this function disabled after fingerprint registered.

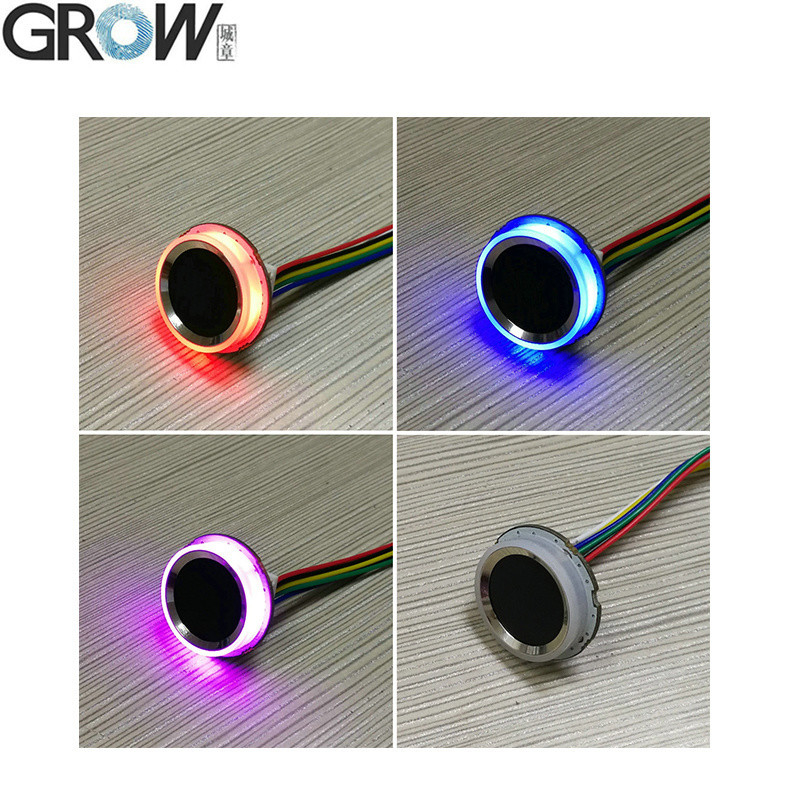

R502-A Specification

Model

R502-A

Type

Capacitive Fingerprint Module

Interface

UART(TTL)

Resolution

508 DPI

Voltage

DC 3.3V

Fingerprint Capacity

200

Sensing array

192*192 pixel

Working current

20mA

Standby current

Typical touch standby voltage: 3.3V, Average current: 2uA

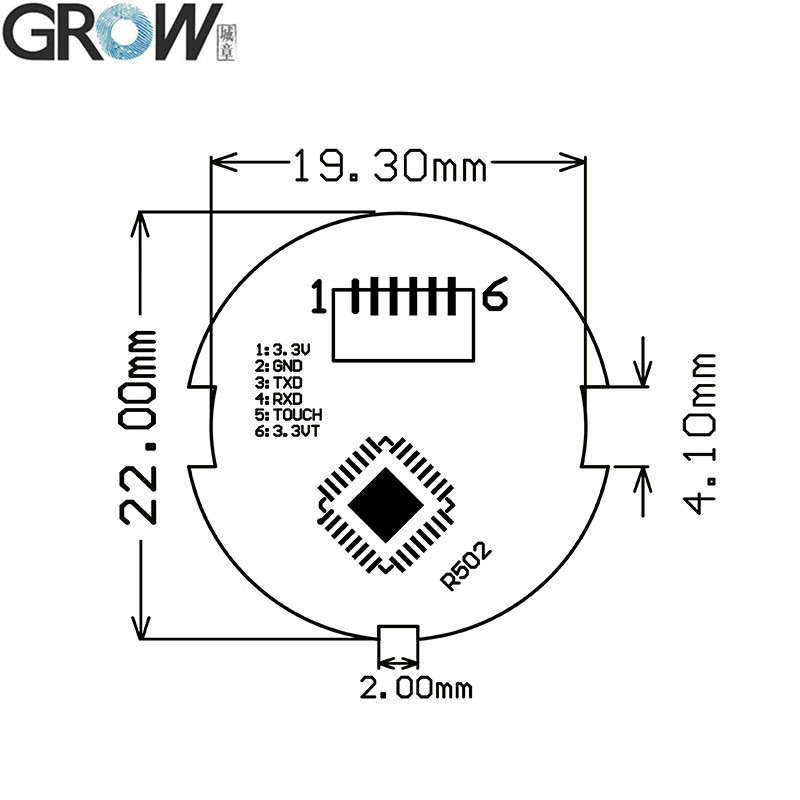

Fingerprint module external size

Diameter 22 (mm)

Fingerprint module inner size

Diameter 19.3 (mm)

Fingerprint module height

5 (mm)(Except the connector)

Effective collection area

Diameter 15.5 (mm)

Connector

MX1.0-6Pin

LED Control

YES

LED Color

Purple and Blue and Red

Scanning Speed

< 0.2 second

Verification Speed

< 0.3 second

Matching Method

1:1; 1:N

FRR

≤1%

FAR

≤0.001%

Work environment

-20C ---60C

Work Humidity

10-85%

Anti-static capacity

15KV

Abrasive resistance intensity

1 million times

Communications baud rate (UART):

(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)



Files:
·ProvideFree Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual


If need SDK files,pls contact us.
