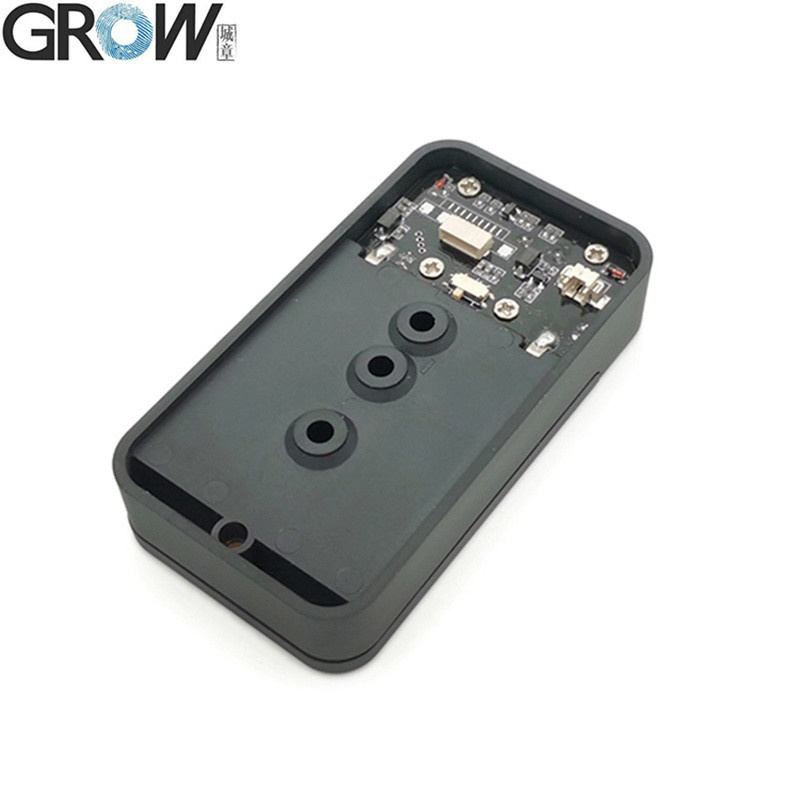

Grow K236-A DC6V 4*AAA Fingerprint Control Board with Battery Case

Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms: T/T, PayPal
Supply Ability: 5000
Detail Information
Model NO.: K236-A Screen: As Picture
Communication Interface: RS232, USB Fingerprint Capacity: 80
Power Supply: DC 6V (4*AAA Battery) Standby Current: <7ua
Output: DC5-6V, 300mA K236-a Size: 87*47.1*16.5mm
Transport Package: Standard Export Carton Package Specification: DC 6V (4*AAA Battery)
Trademark: GROW Origin: China
HS Code: 8471609000 Supply Ability: 5000
Voice Service: Without Voice Service Clock: Without Clock
Color: As Picture Samples: US$ 9.5/Piece 1 Piece(Min.Order) |
Customization: Available | Customized Request Shipping Cost: About Shipping Cost And Estimated Delivery Time.
Payment Method: Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Product Description

Grow K236-a DC6V 4*AAA Fingerprint Control Board with Battery Case

Technical Parameters

*K236-A fingerprint control board, using battery box and circuit board integrated and low power consumption design.
*The power supply is 4*AAA battery.
*Have administrator and user fingerprint function.
*Two output modes can be selected, suitable for electronic lock body, relay and other equipment.
*K236-A can be used with R502, R502A, R502AW, R503 fingerprint module.


·Power supply: DC 6V (4*AAA Battery)
·Control Board Stand by current: <7uA
·Fingerprint capacity:
Administrator fingerprint: 20 pieces
User fingerprint: 60 pieces
·Output: DC5-6V, 300mA
·Size:87*47.1*16.5mm


Operation Instruction

1.Register Administrator Fingerprint:Press SET button shortly,system in administrator register status and blue indicator light flash fast, put the same finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful.Fingerprint can be registered continuously.If no need for adding fingerprint, waitinga few seconds to exit.
2.Register User Fingerprint:Press the administrator fingerprint until the blue indicator light flash fast and hear the music,means can add user fingerprint.Put the same user finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously. If no need for adding fingerprint, waiting a few seconds to exit.

3.Delete User Fingerprint:Press the administrator fingerprint until the red indicator light flash fast and hear"Di",move away the finger,the red indicator light flash slowly,press finger again,hear"Di-Di-Di"and music,means user fingerprints are deleted.

4.Back toFactory Default:Long press the SET button until hear "Di-Di-Di" beep and release the button,means initialization operation successful.

5.Mode Selection:set by the toggle switch:

[Right]:Output DC5V and keep 0.5 second; stop 5 seconds,then minusvoltage outputted and keep 0.5 seconds.

[Left]:Keeping output DC5V until removing the finger.

Note:
1.When the voltage is less than DC4.7V, the red light lightens, means the low voltage warning.
2.In the "[Left]" mode,when need to register/delete user fingerprint,after press the administrator fingerprint successfully,lifting the finger then press the same administrator finger again until the blue/red indicator light flash fast and hear the music,then it can register/delete user fingerprint.
3.Any fingerprint can be used when factory default, and this function disabled after fingerprint registered.




 Files:
·ProvideFree Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual


If need SDK files,pls contact us.
