| Place of Origin: | China |
|---|---|
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton |
| Delivery Time: | Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 5000 |
| Model NO.: | K215-V1.2+R503-A | Screen: | As Picture |
|---|---|---|---|
| Communication Interface: | RS232 | Fingerprint Capacity: | 200 |
| Power Supply: | DC 10V--30V | Standby Current: | 40mA |
| Transport Package: | Standard Export Carton Package | Specification: | Power Supply: DC 10V--30V |
| Trademark: | GROW | Origin: | China |
| HS Code: | 8471609000 | Supply Ability: | 5000 |
| Voice Service: | Without Voice Service | Clock: | Without Clock |
| Color: | As Picture | Samples: | US$ 22.8/Piece 1 Piece(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost: | About Shipping Cost And Estimated Delivery Time. |
| Payment Method: | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

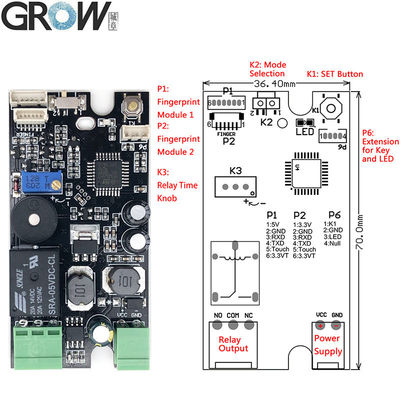

1. Press SET button shortly,system in register state and blue indicator light flash fast, place your finger in the collection area, fingerprint register successful when hearing music;Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.
2. When back to factory default, press SET button until hear "Di" and music,means initialization operation successful.
3. Mode Selection Usage: when chose 2, operating time of the relay is 1s-20s after pass fingerprint,can adjust by knob. When chose 1, relay operated when fingerprint passed, and then relay released when fingerprint passed again, relay operated and released circularly. Relay released when power off.
Note:
In factory status, any fingerprint can pass, after register fingerprints, this function is invalid;
Set sleep mode, long press (about 10s) the SET button and do not release your finger until hearing the "DiDiDi" sound and the music,means initialization operation successful.
| Model | R502-A |
| Type | Capacitive Fingerprint Module |
| Interface | UART(TTL) |
| Resolution | 508 DPI |
| Voltage | DC 3.3V |
| Fingerprint Capacity | 200 |
| Sensing array | 192*192 pixel |
| Working current | 20mA |
| Standby current | Typical touch standby voltage: 3.3V, Average current: 2uA |
| Fingerprint module external size | Diameter 22 (mm) |
| Fingerprint module inner size | Diameter 19.5 (mm) |
| Fingerprint module height | 5 (mm) |
| Effective collection area | Diameter 15.5 (mm) |
| Connector | MX1.0-6Pin |
| LED Control | YES |
| LED Color | Purple and Blue and Red |
| Scanning Speed | < 0.2 second |
| Verification Speed | < 0.3 second |
| Matching Method | 1:1; 1:N |
| FRR | ≤1% |
| FAR | ≤0.001% |
| Work environment | -20C ---60C |
| Work Humidity | 10-85% |
| Anti-static capacity | 15KV |
| Abrasive resistance intensity | 1 million times |
| Communications baud rate (UART): | (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
