GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board

GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board
GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board
GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board
Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms: T/T,PayPal
Supply Ability: 5000
Get Best Price Contact Now
Detail Information
Model NO.: KS200+R503 Screen: As Picture
Communication Interface: RS232, USB, TCP/IP Fingerprint Capacity: 200
Power Supply: 4*AA Battery Or DC3.7V--6.5V Output: DC5--6V,1.5A(Peak:2.5A)
Standby Mode Current: Less Than 7ua Transport Package: Standard Export Carton Package
Specification: 4*AA Battery Or DC3.7V--6.5V Trademark: GROW
Origin: China HS Code: 8471609000
Supply Ability: 5000 Voice Service: Without Voice Service
Clock: Without Clock Color: As Picture
Samples: US$ 21.3/Piece 1 Piece(Min.Order) | Customization: Available | Customized Request
Shipping Cost: About Shipping Cost And Estimated Delivery Time. Payment Method: Initial Payment Full Payment
Currency: US$ Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

3.7V Fingerprint Control Board

,

3.7V finger print arduino

,

6.5V Fingerprint Control Board

Product Description

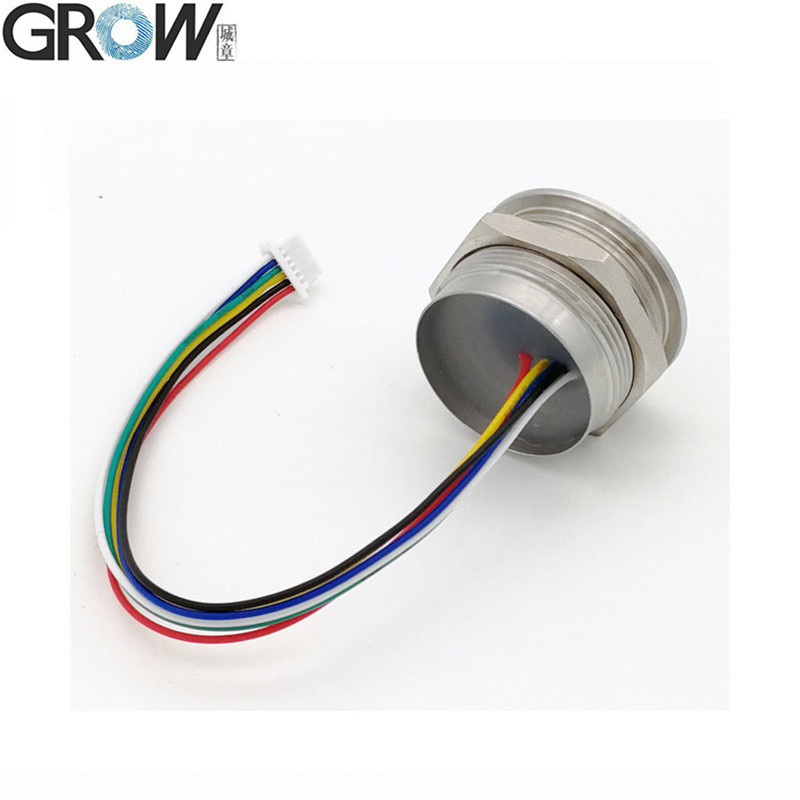

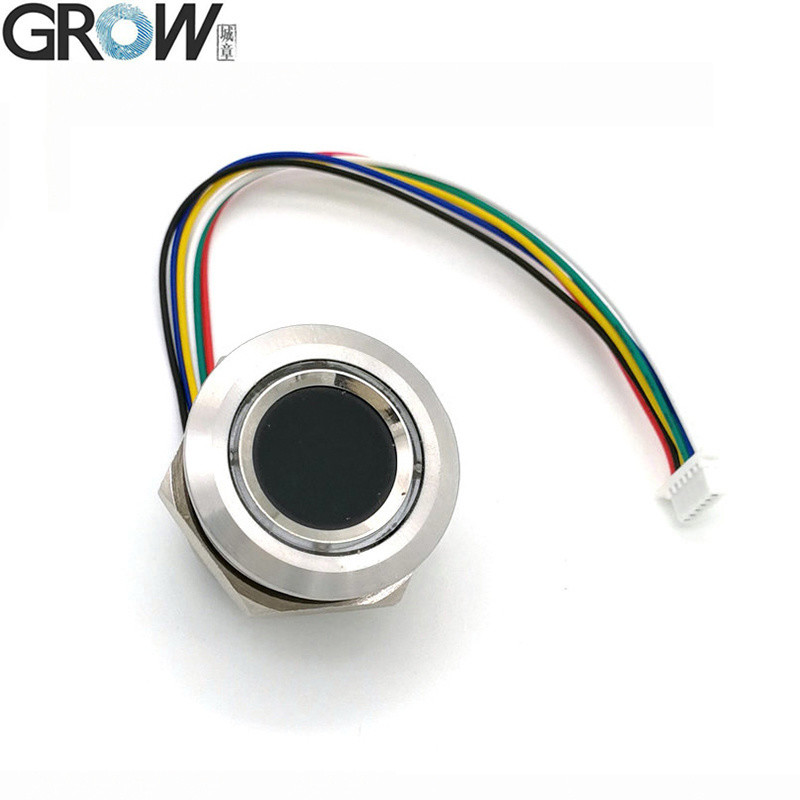

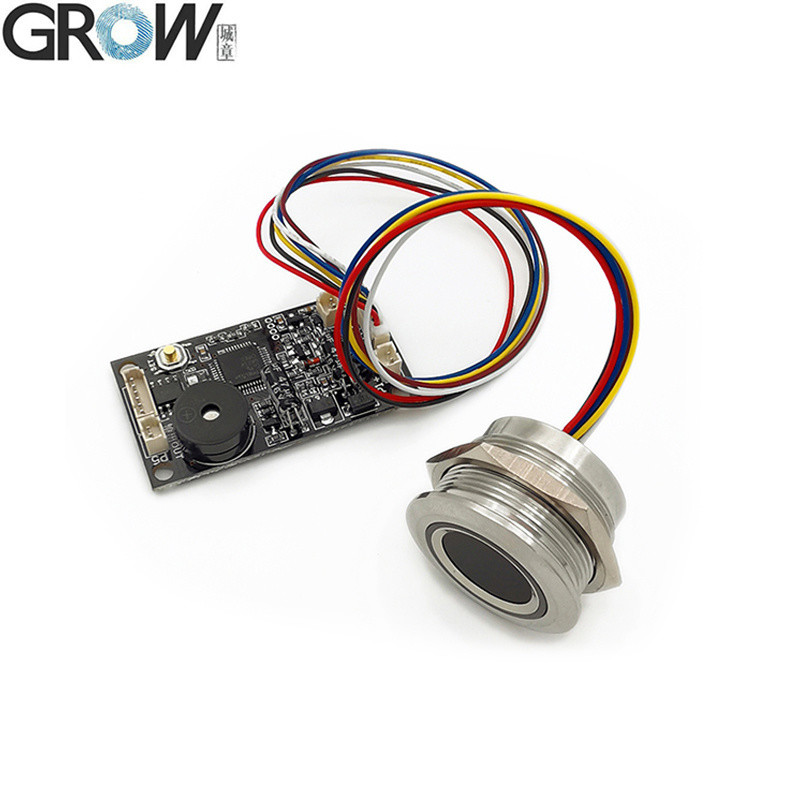

GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board 0

KS200 Technical Parameters

4*AA battery or DC3.7-6.5V, Motor Output, Low Power Consumption, Admin/User Function
·Power supply:DC3.7V--6.5V
·Stand-by mode current:<7uA
·Output:DC5--6V,1.5A(Peak:2.5A)
·Administrator Fingerprint:20 pieces
·User Fingerprint:180 pieces
·Low voltage alarm:4.8V (dry battery)
                                3.5V (Lithium battery)


Motor Working Mode:
1. Forward 0.5 seconds → Rest 5 seconds → Reverse 0.5 seconds.
2. Forward 1 seconds → Rest 5 seconds → Reverse 1 seconds.
3. Forward 1 seconds
4. Forward 2 seconds
5. Self-locking Mode
6. Hold Mode



KS200 Operation Instruction

1 Register Administrator Fingerprint:
Long press the SET button,release finger when shows blue indicator light on the control board,now the fingerprint module indicator flash fast,put the same admin finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously and it can register 20 pieces administrator fingerprint; if no need adding fingerprint more, waiting a few seconds to exit. If the administrator is fully registered,it will automatically exit the administrator registration state after hear "DiDiDi" and will start register user fingerprint if press SET button again.

2 Register User Fingerprint:
Press the administrator fingerprint until the blue indicator light flash fast and hear the music,means can add user fingerprint. Put the same user finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful.Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.

3 Delete User Fingerprint:Press the administrator fingerprint until red indicator light flash fast and hear music,means user fingerprints are deleted.

4 Factory Setting:
Long press the SET button,until shows red indicator light on the control board and hear the music, then release the finger,means initialization operation successful.

Note:
1.Any fingerprint can be used when factory default, and this function disabled after fingerprint registered.
2.When the voltage is less than DC4.7V, the red light lightens, means the low voltage warning.
3.In hold mode, when register user fingerprint, press the administrator's fingerprint first. After passing, lift the finger and press the administrator's fingerprint again. When the light flashes and hear the music sounds, the user's fingerprint can be registered.

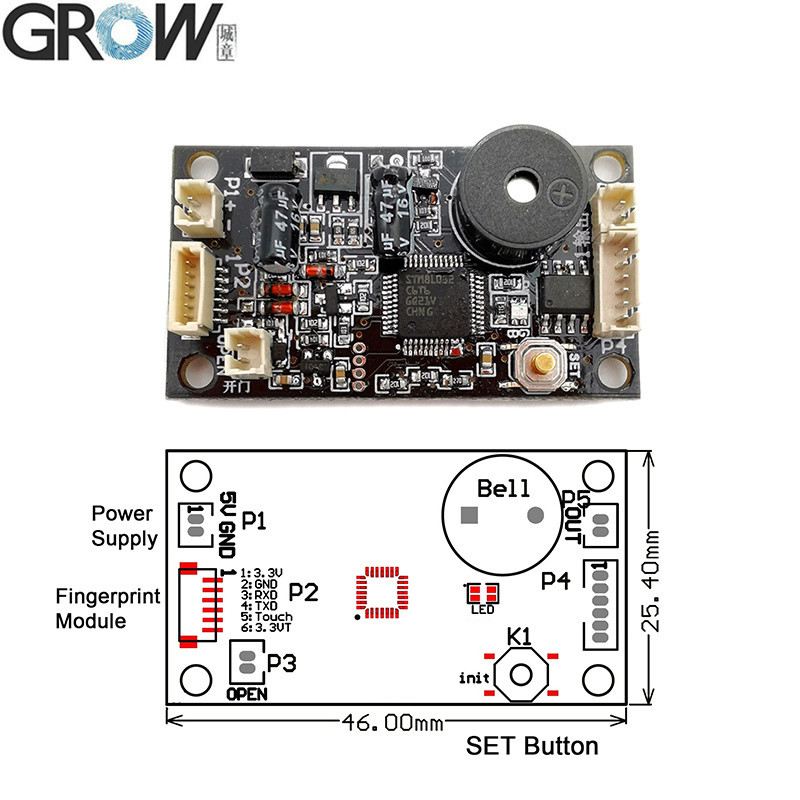

KS200 suitable for R502-A,R502-F,R502-AW,R503,R503-M22 fingerprint module.




R503 Specifications
Model R503
Type Capacitive Fingerprint Module
Interface UART(TTL)
Resolution 508 DPI
Voltage DC 3.3V
Fingerprint Capacity 200
Sensing array 192*192 pixel
Working current 20mA
Standby current Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size Diameter 28 (mm)
Fingerprint module inner size Diameter 23.5 (mm)
Fingerprint module height 19 (mm)
Effective collection area Diameter 15.5 (mm)

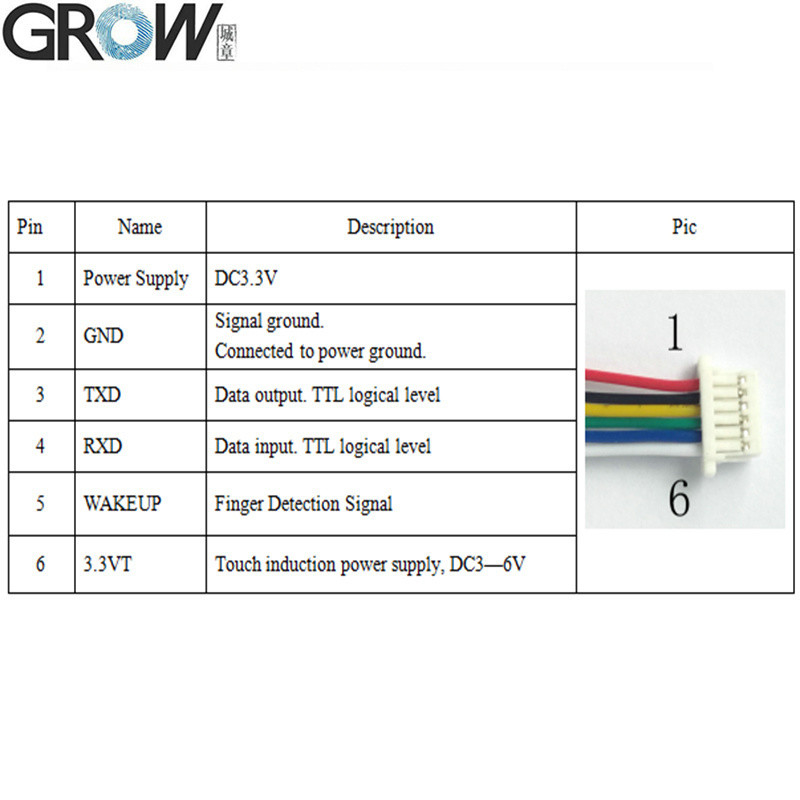

Connector SH1.0-6Pin
LED Control YES

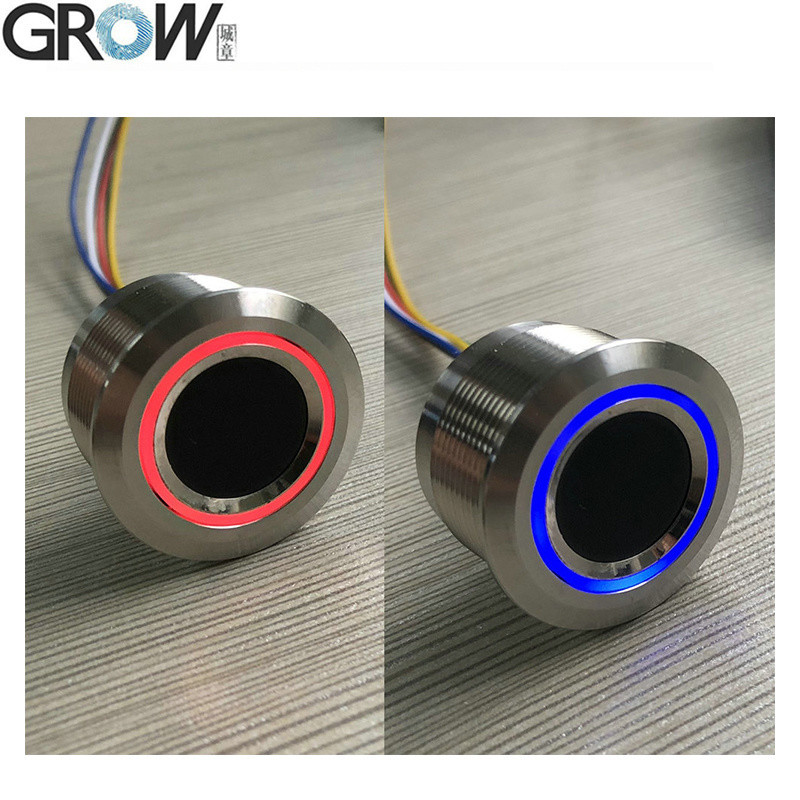

LED Color RGB
Scanning Speed < 0.2 second
Verification Speed < 0.3 second
Matching Method 1:1; 1:N
FRR ≤1%
FAR ≤0.001%
Work environment -20C ---60C
Work Humidity 10-85%
Anti-static capacity 15KV
Abrasive resistance intensity 1 million times
Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)


GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board 1
GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board 2GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board 3GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board 4


GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board 5
GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board 6
GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board 7
GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board 8GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board 9GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board 10
GROW KS200+R503 4*AA Battery or DC3.7V-6.5V Ring Indicator Light Door Access Control Capacitive Fingerprint Access Control Board 11
