Description
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

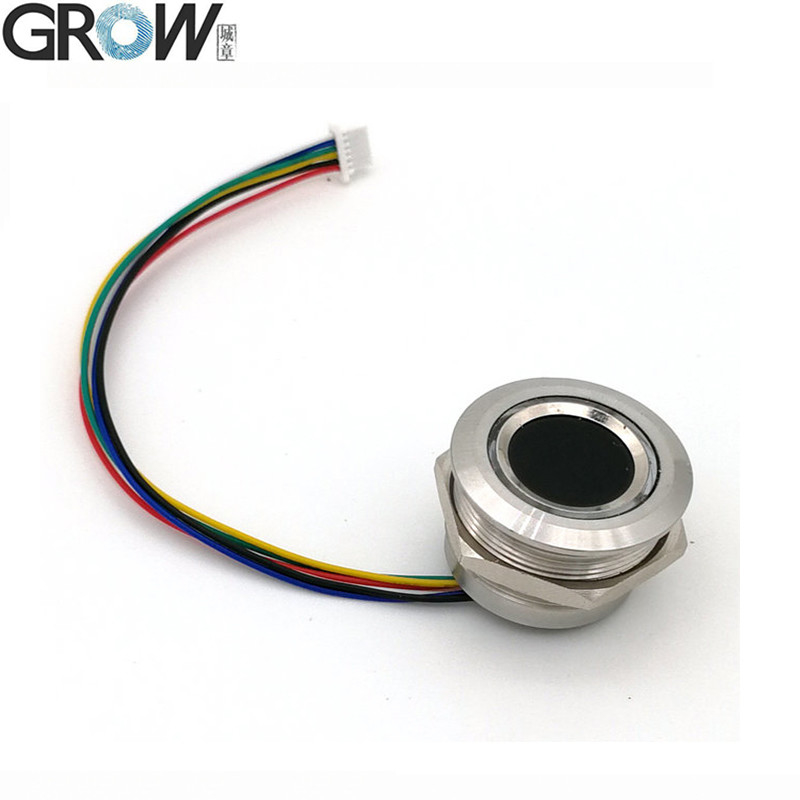

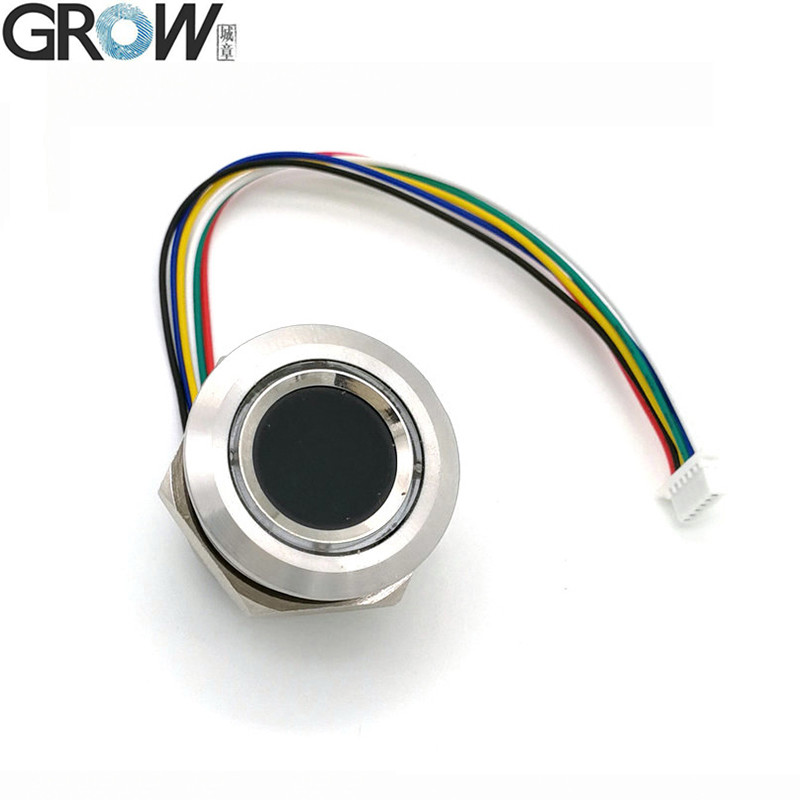

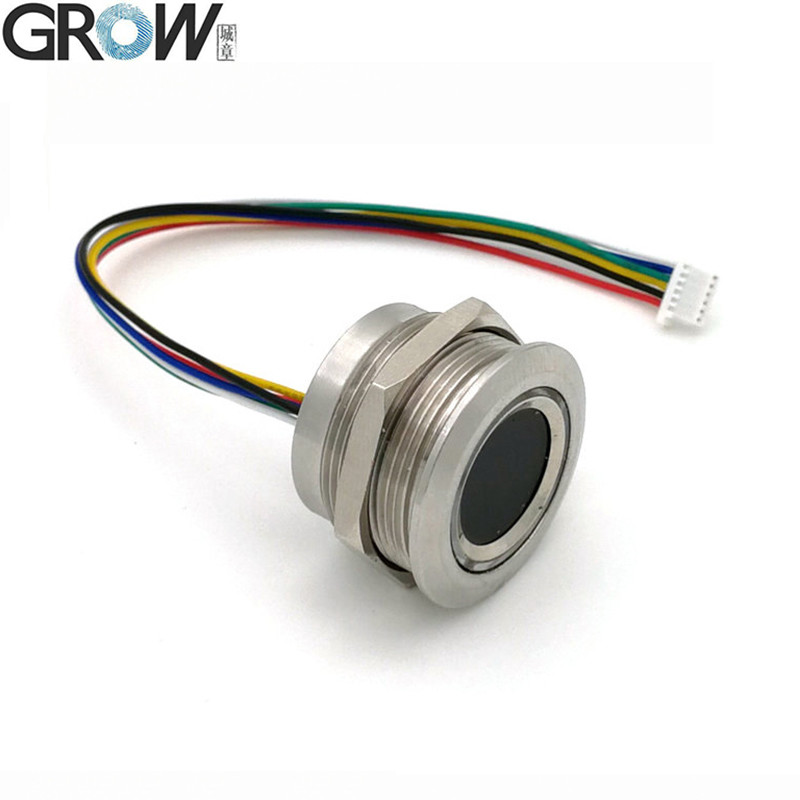

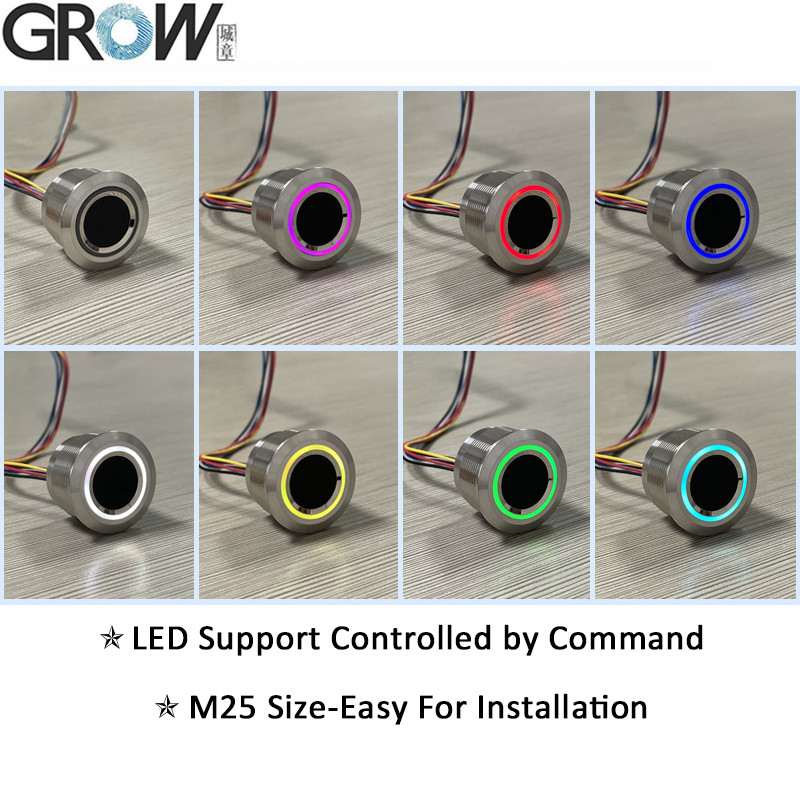

R503 fingerprint module with RGB ring indicator light, LED can be controlled by command.
|
|
R503
|
R503-5V
|
R503-M22
|
R503Pro
|
R503S
|
|
Power Supply
|
DC 3.3V
|
DC 5V
|
DC 3.3V
|
UART:
DC 3.3V
USB:DC 5V
|
DC 3.3V
|
|
Sensing Array
|
192*192 Pixel
|
192*192 Pixel
|
192*192 Pixel
|
192*192 Pixel
|
160*160 Pixel
|
|
Fingerprint Capacity
|
200
|
200
|
200
|
1500
|
150
|
|
Size
|
M25
|
M25
|
M22
|
M25
|
M25
|
|
Connector
|
SH 1.0mm 6pin
|
MX 1.25mm 6pin
|
SH 1.0mm 6pin
|
SH 1.0mm 6pin
|
SH 1.0mm 6pin
|
R503 Specifications
|
Model
|
R503
|
|
Type
|
Capacitive Fingerprint Module
|
|
Interface
|
UART(TTL)
|
|
Resolution
|
508 DPI
|
|
Voltage
|
DC 3.3V
|
|
Fingerprint Capacity
|
200
|
|
Sensing array
|
192*192 pixel
|
|
Working current
|
20mA
|
|
Standby current
|
Typical touch standby voltage: 3.3V, Average current: 2uA
|
|

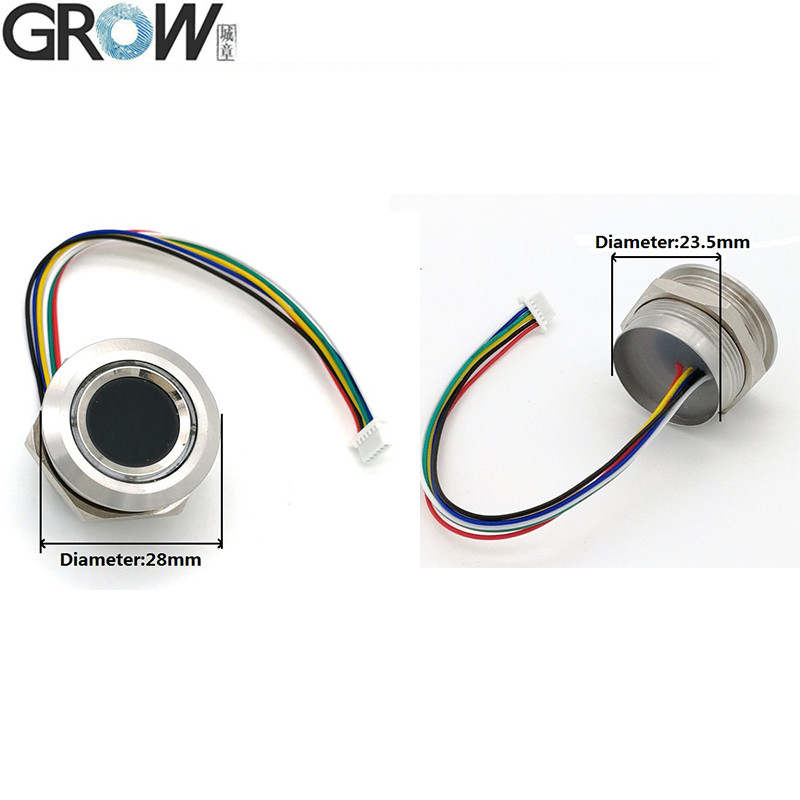

Fingerprint module external size
|
Diameter 28 (mm)
|
|
Fingerprint module inner size
|
Diameter 25 (mm) (M25)
|
|
Fingerprint module height
|
19 (mm)
|
|
Effective collection area
|
Diameter 15.5 (mm)
|
|

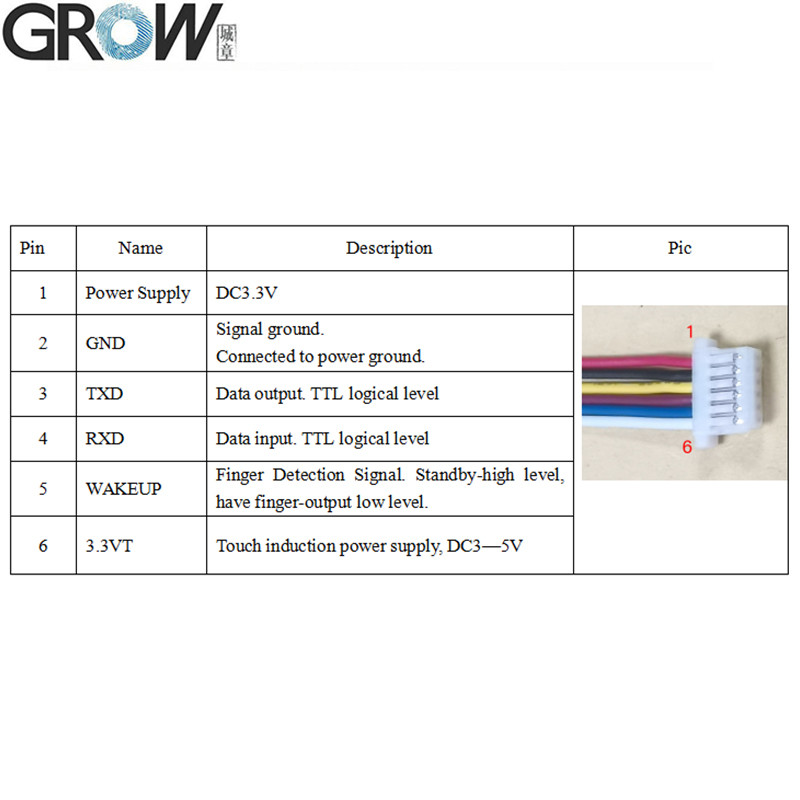

Connector
|
SH1.0-6Pin
|
|
LED Control
|
YES
|
|
LED Color
|
RGB
|
|
Scanning Speed
|
< 0.2 second
|
|
Verification Speed
|
< 0.3 second
|
|
Matching Method
|
1:1; 1:N
|
|
FRR
|
≤1%
|
|
FAR
|
≤0.001%
|
|
Work environment
|
-20C ---60C
|
|
Work Humidity
|
10-85%
|
|
Anti-static capacity
|
15KV
|
|
Abrasive resistance intensity
|
1 million times
|
|
Communications baud rate (UART):
|
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)
|
Files
·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual
You can download the R503 user manual from this website link:
https://hzgrow.en.made-in-china.com
R503 Test program operation display video on Youtube: https://youtu.be/eD2xtwCWOmQ
If need SDK files,pls contact us.
Superior biometrics:The R503 fingerprint module adopts advanced capacitive fingerprint identification technology, which collects fingerprint data through a micro-capacitor array. When the finger is pressed, the ridges and valleys of the finger generate different tiny capacitances between the epidermis and the chip, and the chip measures these changes to obtain fingerprint information, enabling fast unlocking and enhancing user experience.
Accuracy:With an image resolution of up to 508 dpi and 192*192 image pixels, the R503 fingerprint module can capture the subtle features of fingerprints, thus ensuring identification accuracy. Its false recognition rate is extremely low and almost negligible, preventing unauthorized access.
Durability & Stability:The R503 fingerprint module can operate normally in relatively harsh environments, including extreme weather conditions such as extreme cold and heat. Its operating temperature range is -20 ℃ to 45 ℃, and the relative humidity range is 10% RH to 85% RH (without condensation). At the same time, the service life of the R503 fingerprint module can reach over a million touches, ensuring stability and reliability in different environments. Users can use it for a long time without worrying about performance degradation or damage.
Multi-Device Connectivity:The R503 fingerprint module supports multiple operating systems, such as Arduino, Android, Windows, Linux, etc., and can easily adapt to most devices on the market.
Fingerprints data protection:As the R503 fingerprint module is designed to collect sensitive information, security is of utmost importance. The five level security level setting and data protection technology can prevent fingerprint images from being stolen or reconstructed.
Low-power consumption:Low power supply, the entire circuit is usually powered off, and the detection finger function of the module is used to power on the whole machine.
