Detail Information

Model NO.:	R503-5V	Screen:	As Picture
Communication Interface:	RS232	Fingerprint Capacity:	200
Voltage:	DC 5V	Effective Collection Area:	Diameter 15.5 (mm)
Sensing Array:	190*190 Pixel	Resolution:	508 Dpi
Abrasive Resistance Intensity:	1 Million Times	Antistatic Capacity:	15kv
Fingerprint Module External Diameter:	28mm	Fingerprint Module Inner Diameter:	25mm(M25)
Fingerprint Module Height:	19mm	Weight:	32g
LED Control:	Yes	Transport Package:	Standard Export Carton Package
Specification:	Diameter 28 (mm)	Trademark:	GROW
Origin:	China	HS Code:	8471609000
Supply Ability:	5000	Package Size:	13.00cm * 8.00cm * 9.00cm
Package Gross Weight:	0.100kg	Voice Service:	Without Voice Service
Clock:	Without Clock	Color:	Black
Samples:	US$ 13.9/Piece 1 Piece(Min.Order) \|	Customization:	Available \| Customized Request
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.	Payment Method:	Initial Payment Full Payment
Currency:	US$	Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:	Waterproof capacitive fingerprint module , dc 5v capacitive fingerprint sensor module , Waterproof capacitive fingerprint sensor module

Product Description

Description

1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

	R503	R503-5V	R503-M22	R503Pro	R503S
Power Supply	DC 3.3V	DC 5V	DC 3.3V	UART: DC 3.3V USB:DC 5V	DC 3.3V
Sensing Array	192*192 Pixel	192*192 Pixel	192*192 Pixel	192*192 Pixel	160*160 Pixel
Fingerprint Capacity	200	200	200	1500	150
Size	M25	M25	M22	M25	M25
Connector	SH 1.0mm 6pin	MX 1.25mm 6pin	SH 1.0mm 6pin	SH 1.0mm 6pin	SH 1.0mm 6pin

R503-5V Specifications

Model	R503-5V
Type	Capacitive Fingerprint Module
Interface	UART(TTL)
Resolution	508 DPI
Voltage	DC 5V
Fingerprint Capacity	200
Sensing array	192*192 pixel
Working current	20mA
Standby current	Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size	Diameter 28 (mm)
Fingerprint module inner size	Diameter 25 (mm) (M25)
Fingerprint module height	19 (mm)
Effective collection area	Diameter 15.5 (mm)
Connector	MX1.25-6Pin
LED Control	YES
LED Color	RGB
Scanning Speed	< 0.2 second
Verification Speed	< 0.3 second
Matching Method	1:1; 1:N
FRR	≤1%
FAR	≤0.001%
Work environment	-20C ---60C
Work Humidity	10-85%
Anti-static capacity	15KV
Abrasive resistance intensity	1 million times
Communications baud rate (UART):	(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Note:

1. R503-5V: IP65 Waterproof

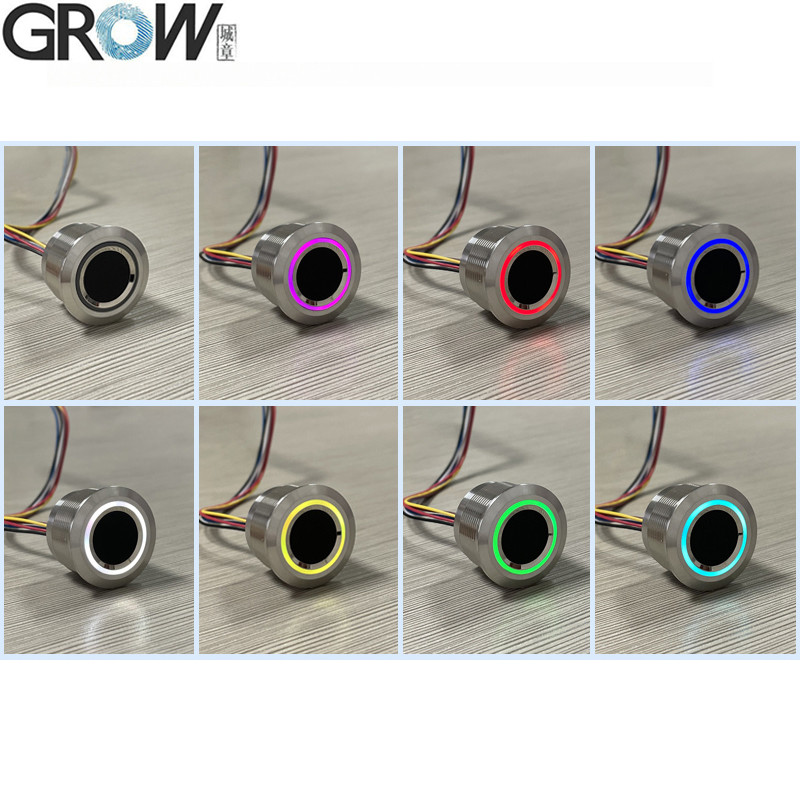

2. RGB LED Color, have 7 colors which can be controlled by command.

3. The R503-5V is not compatible with all of GROW's control board.

Files

·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

You can download the R503-5V user manual from this website link:
https://hzgrow.en.made-in-china.com

R503 Test program operation display video on Youtube: https://youtu.be/eD2xtwCWOmQ

If need SDK files,pls contact us.

What is FPC fingerprint module technology all about?

Fingerprint module is the core component of fingerprint lock, installed in devices such as fingerprint access control or hard drive, mobile phone, etc., used to complete the fingerprint acquisition and fingerprint recognition module. Fingerprint module is mainly composed of fingerprint acquisition module, fingerprint recognition module and extended function module (such as lock drive module), FPC fingerprint module is its important component.

FPC fingerprint module can be divided according to its fingerprint recognition method:

1. Optical fingerprint module, which relies on the principle of refraction and reflection of light to identify fingerprints;

2.Capacitance fingerprint module, which collects fingerprints by the value change of capacitance;

3.RF fingerprint module (scratch fingerprint module), using trace RF signal to detect the pattern.

Principle of FPC fingerprint module:

1.optical fingerprint module, the use of light refraction and reflection principle, light from the bottom of the prism to the prism, and through the prism shot, shot light on the fingerprint surface fingerprints uneven lines on the angle of refraction and reflection back to the light will not be the same, CMOS or CCD optical device will be collected to the different degree of brightness of the picture information, fingerprints on the completion of the collection.

2.semiconductor fingerprint module, whether capacitive or inductive, the principle is similar, in a piece of integrated thousands of semiconductor devices on the ‘plate’, the finger affixed to its composition of the capacitance (inductance) of the other side, due to the unevenness of the finger planes, the bumps and bumps in contact with the plate of the actual distance between the size of the different, the formation of the capacitance/inductance value. The capacitance/inductance value will be different, and the equipment will summarise the different values collected according to this principle, and the fingerprint collection will be completed.

3.RF fingerprint module, using biological RF fingerprint identification technology, through the sensor itself to emit a trace of RF signal, penetrate the epidermis of the finger to control the inner layer of the texture, in order to obtain the best fingerprint image. Strong anti-fake fingerprint ability, RF identification principle only reacts to human dermal skin, which fundamentally eliminates the problem of artificial fingerprints.
