| Model NO.: | GM861XS | Operating Current: | 70mA |
|---|---|---|---|
| Scan Mode: | 640*480 | Interface: | Uart |
| Resolution: | 10mil | Weight: | 1g |
| Serial Baud Rate(Uart): | 9600 | Transport Package: | Standard Export Carton Package |
| Specification: | Diameter 17.2 (mm) | Trademark: | GROW |
| Origin: | China | HS Code: | 8473309000 |
| Supply Ability: | 5000 | Package Size: | 13.00cm * 8.00cm * 9.00cm |
| Package Gross Weight: | 0.100kg | Interface Type: | USB Uart |
| Scan Element Type: | CMOS | Operating Voltage: | 3.3V |
| Samples: | US$ 10.5/Piece 1 Piece(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost: | About Shipping Cost And Estimated Delivery Time. | Payment Method: | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Highlight: | barcode scanner module 1d 2d codes reader,barcode scanner uart,uart laser barcode scanner module |
||
|
Parameter
|
Performance
|
|
Sensor
|
CMOS
|
|
Scan Mode
|
640*480
|
|
Indicator Light
|
Green light as read successfully
|
|
Read Code Type |
1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128,
Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5,Matrix 2 of 5, Code 39,Code 11, MSI-Plessey,GS1 Composite,GS1-Databar (RSS)
|
|
2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec
|
|
|
GM861XS
Reading Distance |
5-30cm |
|
Contrast*
|
>25%
|
|
Scan Angle**
|
Roll: 360° Pitch: 65° Yaw: 65°
|
|
Viewing Angle
|
67° (Horizontal) 53° (Vertical)
|
|
Accuracy of reading*
|
≥10mil
|
|
Parameter
|
Performance
|
|

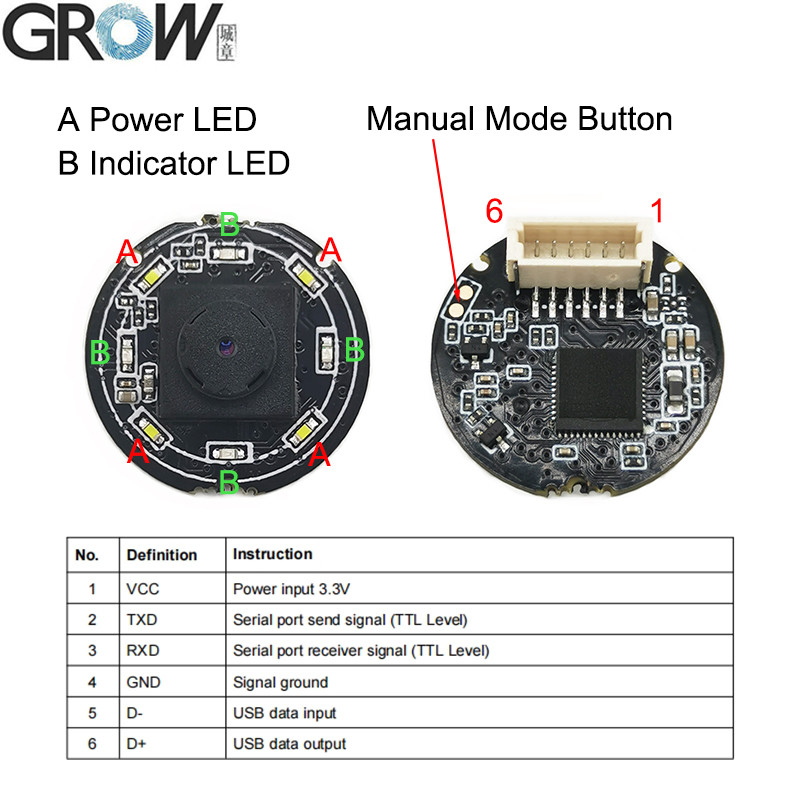

Interface
|
TTL-232/USB
|
|

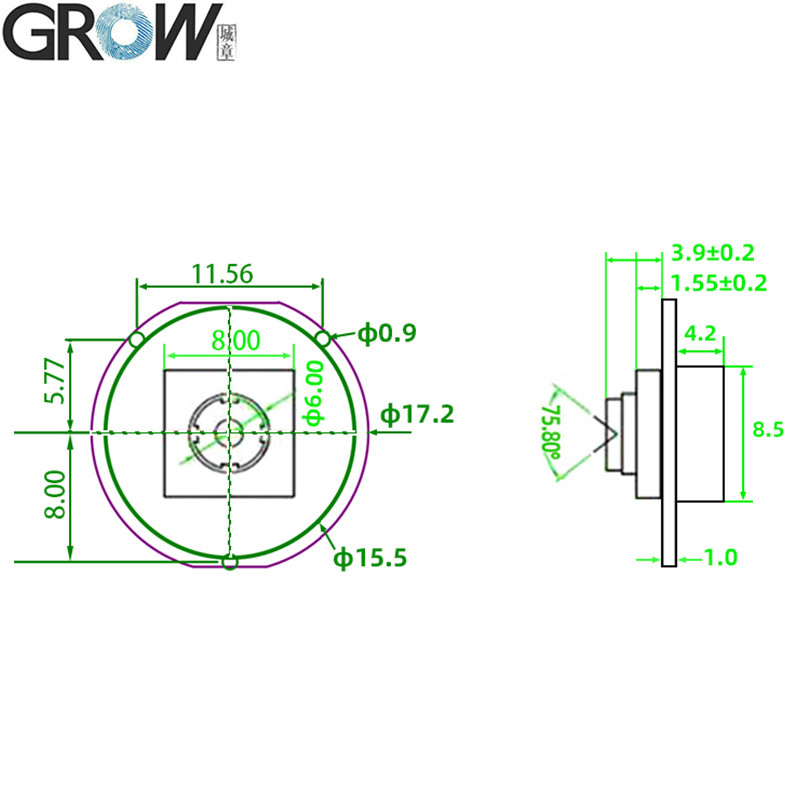

Size(mm)
|
Diameter 17.2mm Height 4.9mm
|
|
Weight
|
1 g
|
|
Prompting mode
|
LED Indicator
|
|
Operating Voltage
|
3.3V
|
|
Operation Current
|
70mA(Max)
|
|
Standby Current
|
≤6mA(Typical)
|
|
Startup time
|
≤250mS (Typical)
|
|
Parameter
|
Performance
|
|
Operating temperature
|
-20ºC~60ºC
|
|
Storage Temperature
|
-40ºC~+100ºC
|
|
Operating Humidity
|
5%~95%(Non-Condensing)
|
|
Environmental Light
|
Normal indoor light source
|
|
Fall
|
Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)
|
