Detail Information

Model NO.:	GM71	Operating Current:	220mA(Max)
Reading Distance:	30 - 550mm	Interface:	USB/Uart
Resolution:	1d: 3mil 2D: 5mil	Transport Package:	Standard Export Carton Package
Specification:	Black	Trademark:	GROW
Origin:	China	HS Code:	8473309000
Supply Ability:	5000	Package Size:	13.00cm * 8.00cm * 9.00cm
Package Gross Weight:	0.200kg	Interface Type:	Uart, USB
Scan Element Type:	CMOS	Operating Voltage:	5V
Samples:	US$ 15.5/Piece 1 Piece(Min.Order) \|	Customization:	Available \| Customized Request
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.	Payment Method:	Initial Payment Full Payment
Currency:	US$	Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:	220mA barcode scanner module , Uart barcode scanner module , CMOS barcode scanner module

Product Description

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

9. Free to change lens, lens size M12.

Specifications

Model	GM71
Scan Mode	640*480 CMOS
Type	Barcode Scanner
Decoding Ability	1D: EAN13,ISSN,ISBN,EAN8,UPCA,UPCE,Code128,Code39,Code93, CodeBar,Interleaved 2 of 5, ITF-14, ITF-6, Industrial 2 of 5, Matrix 2 of 5,Code11,MSI-Plessey,GS1-Databar (RSS) 2D: Micro QR,QR,Data Matrix,PDF417,Micro PDF417,Aztec Code
Interface	USB2.0 UART
Contrast	≥15%
Operating Voltage	5V
Operating Current	120mA
Standby Current	55mA
Weight	47g
Accuracy of reading	1D code ≥3mil, 2D code ≥5mil
Scan Angle	Roll: 360° Pitch: 65° Yaw: 65°
View Angle	67° (Horizontal) 53° (Vertical)
Reading Distance	25 - 250mm
Operating Temperature	-20 degrees to 60 degrees
Storage Temperature	-40 degrees to 70 degrees
Temperature Humidity	5% to 95% Relative humidity, Non-condensing

Files

·Provide User Manual

Scan Modules: Essential Tools for Efficient Data Collection and Tracking in Modern Businesses

Scan modules have revolutionized the way we handle data collection and tracking in various industries, from retail to manufacturing and healthcare. Among the various types of scan modules, those designed for Data Matrix code scanning, barcode verification, PDF417 scanning, and general barcode scanning stand out for their efficiency, accuracy, and versatility.

A Data Matrix code scanner is a must-have for any industry that relies on high-density data encoding. These codes, which can store significant amounts of information in a small space, are ideal for applications like asset tracking, product identification, and even patient management in healthcare settings. Scan modules capable of reading Data Matrix codes feature advanced optics and decoding algorithms to ensure quick and accurate scanning, even in challenging environments where codes may be partially obscured or damaged.

Barcode verification scanners are another crucial component in ensuring data integrity. These devices not only scan barcodes but also verify their accuracy, checking for errors or inconsistencies that could lead to misidentification or inventory discrepancies. Verification scanners are especially important in sectors like pharmaceuticals, where precise tracking and traceability are essential for patient safety and regulatory compliance.

PDF417 scanners are designed to handle a specific type of 2D barcode that is commonly used in transportation, government ID cards, and other applications that require the encoding of large amounts of data. These scanners must be capable of quickly and accurately decoding the complex patterns of a PDF417 barcode, even when printed on curved surfaces or in challenging lighting conditions.

When it comes to buying a barcode scanner, businesses have a wide range of options to choose from. Whether you need a scanner for point-of-sale systems, inventory management, or mobile data collection, there are scan modules available to suit your needs. Key factors to consider when purchasing a barcode scanner include scanning speed, accuracy, compatibility with your existing systems, and ease of use.

In summary, scan modules for Data Matrix code scanning, barcode verification, PDF417 scanning, and general barcode scanning are essential tools for modern businesses. They enable efficient data collection and tracking, help reduce errors, and improve overall operational efficiency. By investing in high-quality scan modules, businesses can stay ahead of the competition and provide better service to their customers.

Tag:

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T, PayPal
Supply Ability:	5000

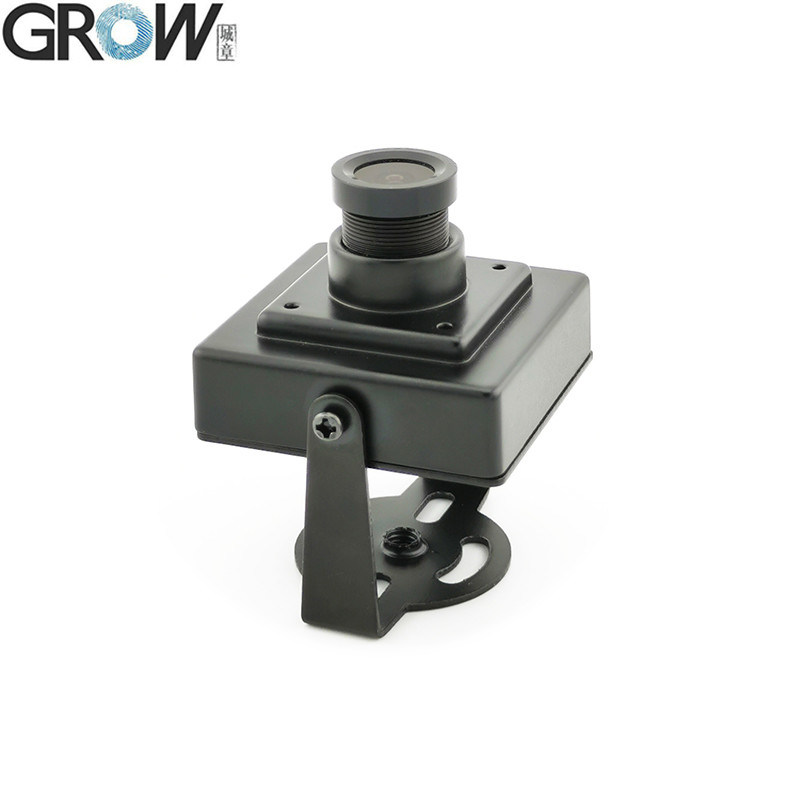

Grow GM71 1d 2D USB / Uart Barcode Scanner Module Reader with Interchangeable M12 Lens
