Description

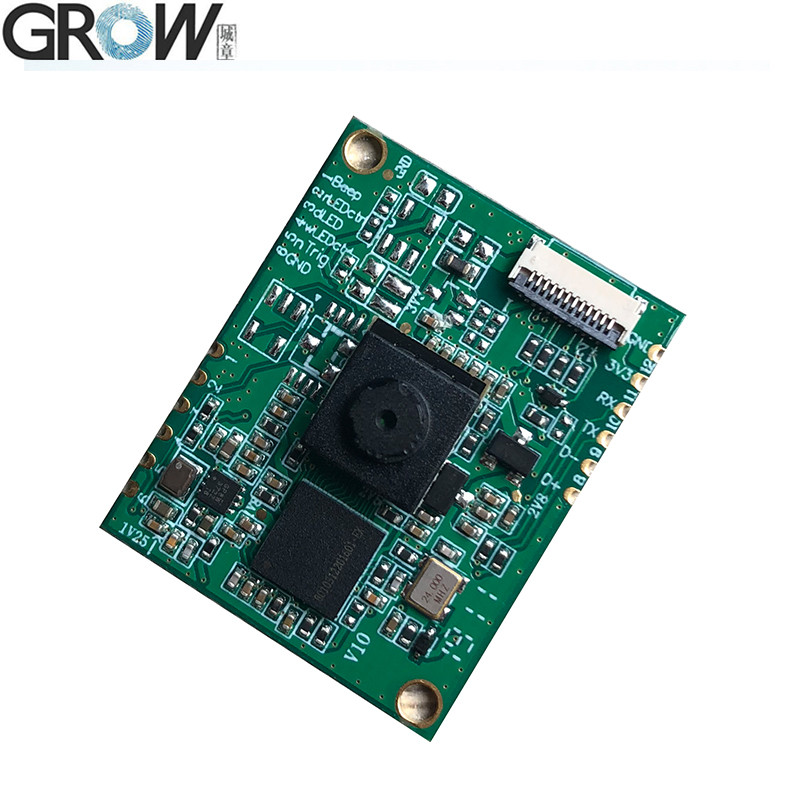

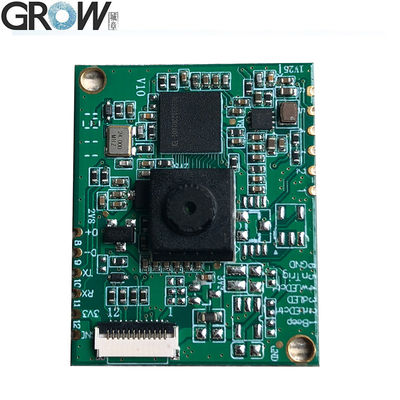

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
2. High-efficiency recognization and high upload speed for improving your working efficiency.
3. With buzzer for reminding you that the scanning successfully or not.
4. Compatible with USB and UART interface.
5. Over 180 configurable options
6. Macro support replace a string in the bar code with another
7. Programmable preamble postamble and termination strings
8.Superior reading performance utilizing advanced decoding algorithms
Specifications
·Decoding Ability:
1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect.
2D: PDF417,QR Code ,Data Matrix , Maxicode, Aztec
·Resolution: 6mil
·Reading Distance :30 - 150mm
·Interfaces: USB2.0 UART
·Operating Voltage :3.3V
·Operating Current :100mA
·Weight:6g
·Size:30*24*7mm
·Type of Illuminant: 617nm LED(Aimer), 6500K LEDs(Illumination)
·Scan Angle: Roll:0-360°, Pitch:±65°or greater, Yaw:±60°or greater
·Scanning angle Inclination angle: 34°, Elevation angle 26° Print Contrast 30% minimum reflective difference
·LED Indicator:Buzzer and bi-color light: Red-power, Blue-decoding Successfully
·Operating Temperature:-20 degrees to 55 degrees
·Storage Temperature:-40 degrees to 65 degrees
·Temperature Humidity:5% to 95% Relative humidity, Non-condensing
·Light Levels:0-85000LUX
Files
·Provide User Manual
What are the diverse application areas of embedded barcode scanning heads?
The embedded barcode recognition module, as a key component in contemporary technology, has a wide range of applications and profoundly affects our daily lives and the progress trajectory of various industries. From convenient mobile payment methods to precise industrial production processes, from busy commercial retail formats to efficient logistics and transportation systems, and even in the medical and health field that concerns people's livelihoods, embedded barcode recognition modules continue to drive intelligent transformation in various fields with their efficient, accurate, and easy-to-use characteristics.
On the stage of mobile payments, embedded barcode recognition modules have become one of the core elements. Whether it's self-service checkout terminals in supermarkets, intelligent point of sale systems, or automatic ticket gates in subways, the built-in barcode recognition modules in these devices can quickly capture mobile payment QR codes or ticket barcode information, significantly accelerating the payment and passage process, reducing human errors, and giving consumers a smoother and more efficient payment experience.
In the field of industrial production, embedded barcode recognition modules also occupy a key position. From raw material inventory registration to product tracking, and then to industrial equipment maintenance, the barcode recognition module achieves precise control of the production process by scanning barcode labels on products and equipment. This not only improves production efficiency, but also ensures the reliability of product quality and the safety of equipment operation, laying a solid foundation for the long-term development of the enterprise.
The commercial retail industry has also widely benefited from the popularity of embedded barcode recognition modules. The rise of emerging retail models such as self checkout services, unmanned retail stores, and smart stores all rely on the support of barcode recognition modules. They can quickly read product barcodes, achieve real-time capture and transmission of data, optimize customers' shopping experience, and reduce retailers' operating expenses.
In the logistics industry, the application of embedded barcode recognition modules is also widely used. From the inbound and outbound operations of goods to the sorting and distribution process, the barcode recognition module runs through the entire process. It ensures accurate identification and tracking of goods, improves the efficiency and accuracy of logistics operations, and provides a solid technological foundation for the rapid growth of industries such as e-commerce and express delivery services.
In the field of healthcare, embedded barcode recognition modules have also demonstrated extraordinary value. From strict management of drugs to maintenance records of medical equipment, to self-service printing of medical films and the application of medical handheld terminals (PDAs), barcode recognition modules, with their efficient and convenient performance, have helped medical institutions achieve refined management of drugs and equipment, improving the quality and efficiency of medical services.
In summary, embedded barcode recognition modules have become an indispensable key element in modern society due to their wide range of application scenarios and excellent performance. With the continuous evolution and innovation of technology, we have reason to believe that barcode recognition modules will demonstrate their enormous potential in more fields, bringing more convenience and surprises to our lives.
