Description
GM805 serial have GM805-S and GM805-L model.
The only difference between the GM805-S and GM805-L is the lens.
GM805-S lens reading distance is 5-30cm.
GM805-L lens reading distance is 7-50cm.
(The actual data depends on the size and content of the code)

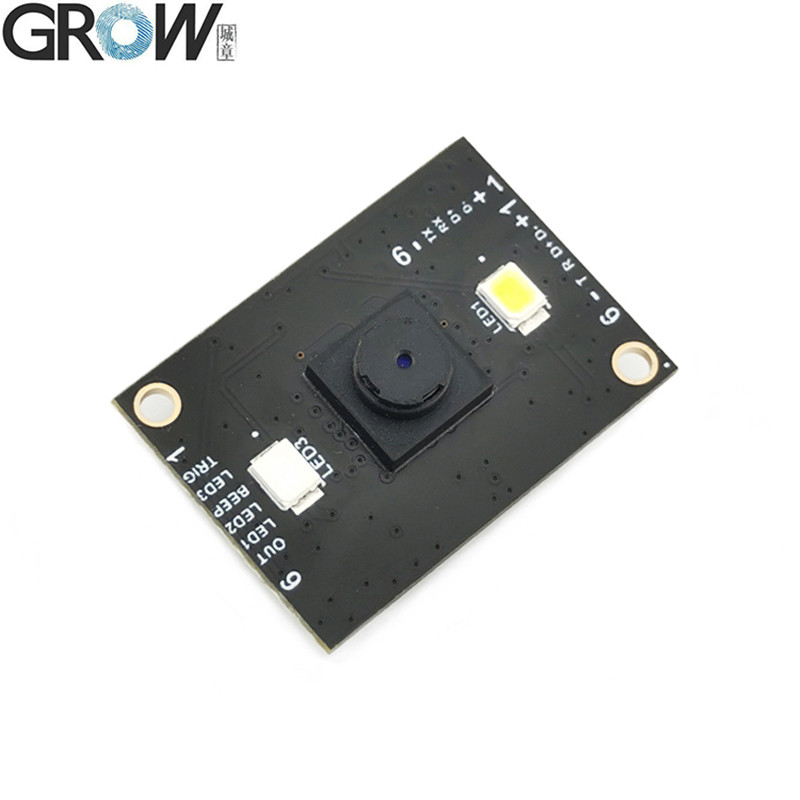

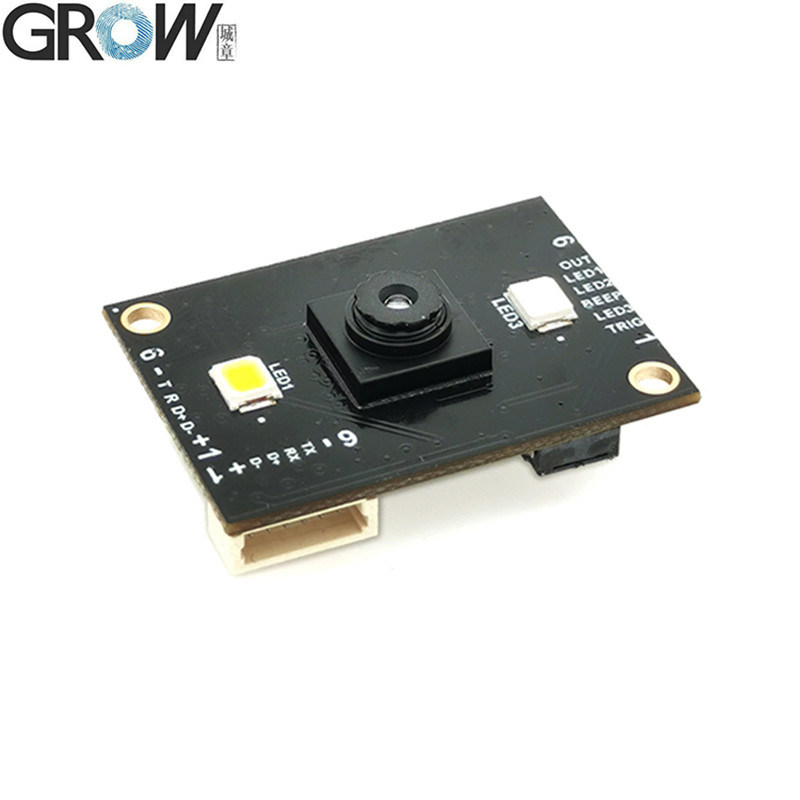

GM805 serial bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen.
GM805 serial bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.
Specifications
|
Parameter
|
Performance
|
|
Sensor
|
CMOS
|
|
Scan Mode
|
640*480
|
|
Lighting
|
White LED
|
|
Indicator Light
|
Blue LED
|
|
Read Code Type
|
1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128,
Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5,Matrix 2 of 5,
Code 39,Code 11, MSI-Plessey,GS1 Composite,GS1-Databar (RSS)
|
|
2D: QR Code, Data Matrix, PDF417
|
|
GM805-S
Reading Distance
|
5-30cm
|
|
GM805-L
Reading Distance
|
7-50cm
|
|
Contrast*
|
>25%
|
|
Scan Angle**
|
Roll: 360° Pitch: 65° Yaw: 65°
|
|
Viewing Angle
|
67° (Horizontal) 53° (Vertical)
|
|
Accuracy of reading*
|
≥10mil
|
Mechanical/electrical Parameters:
|
Parameter
|
Performance
|
|
Interface
|
TTL-232/USB
|
|
Size(mm)
|
28*20 mm
|
|
Weight
|
2.1 g
|
|
Prompting mode
|
Buzzer LED Indicator
|
|
Operating Voltage
|
5V
|
|
Operation Current
|
70mA(Max)
|
|
Standby Current
|
≤6mA(Typical)
|
|
Startup time
|
≤250mS (Typical)
|
Environmental Parameters:
|
Parameter
|
Performance
|
|
Operatingtemperature
|
-20℃~60℃
|
|
Storage Temperature
|
-40℃~+70℃
|
|
Operating Humidity
|
5%~95%(Non-Condensing)
|
|
Environmental Light
|
Normal indoor light source
|
|
Fall
|
Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)
|
Files
·Provide User Manual
Scanner Module:in-depth exploration of market demand and future application trends
In the current era of surging digitalization, scanning module, as an advanced automatic recognition technology, is quietly integrating into every corner of our lives. With its efficient, convenient, and precise characteristics, it is accelerating the intelligent process of related industries and demonstrating strong market demand and broad development blueprints in many fields.
1.Market demand: steady growth, driven by diversification
Firstly, thanks to the comprehensive promotion of mobile payments. Mobile payment is undoubtedly the most direct and critical application area of the scanning module. With the widespread popularity of smart phones and mobile Internet, two-dimensional code payment has become an indispensable payment method in people's daily life. From small street vendors to large supermarkets and restaurant chains, QR code payment devices have become standard. This trend has greatly promoted the vigorous development of the scanning module market, and also prompted continuous innovation and improvement of scanning module technology in the payment field.
Next is the rise of smart homes and smart transportation. Both smart homes and smart transportation provide a broad market demand for scanning modules. In the field of smart homes, scanning modules have shone brightly in access control and security, device interconnection, and other aspects, greatly facilitating people's daily lives. In the field of smart transportation, scanning code modules are widely used in automatic ticket checking, automatic ticket purchasing, and in car QR code charging, effectively improving travel efficiency and user experience.
In depth application in industrial, medical and other fields. In addition, the scanning module has demonstrated strong application capabilities in industrial, medical and other fields. In industrial production, barcode scanning modules can be used for barcode recognition and product traceability on the production line, helping to improve production efficiency and product quality. In the medical field, scanning code modules are widely used in drug management, patient information entry and other scenarios, effectively simplifying medical processes and improving medical safety.
2.Application prospects: unlimited potential, innovation is not limited
Technological innovation leads application deepening: With the continuous progress of technology, scanning modules will achieve a qualitative leap in recognition speed, accuracy, stability, and other aspects. This will promote the widespread application of scanning modules in more fields and facilitate the continuous deepening of application depth. For example, in the field of intelligent manufacturing, scanning modules can be used for parts traceability, product quality management, and other processes to achieve refined management of the production process.
Diversified market demand drives customized development: Faced with diverse market demands, scanning module providers will pay more attention to the research and promotion of customized solutions. By providing customized scanning module solutions based on customers' actual needs, we will better meet the diverse demands of the market and promote the sustained prosperity of the scanning module market.
The potential of emerging markets is enormous: although scanning modules have been widely used in multiple fields, emerging markets still have enormous development potential. Especially in third - and fourth tier regions and below, with the gradual popularity of mobile payments and smart homes, the market demand for scanning modules will continue to grow. At the same time, in emerging fields such as smart new retail and smart healthcare, scanning modules will also usher in more application opportunities.
In summary, the scanning module, as an efficient automatic recognition technology, is gradually integrating into our daily lives. Its market demand continues to grow, its application areas are constantly expanding, and its future development potential is unlimited. With the continuous advancement of technology and the continuous expansion of the market, scanning modules will play an important role in more fields, bringing more convenience to people's lives and work. At the same time, providers of scanning module should continuously innovate and optimize their products to meet the diverse needs of the market and promote the prosperous development of the scanning module market.
