Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code

Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code
Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code
Basic Information
Get Best Price Contact Now
Detail Information
Model NO.: GM69Pro Operating Voltage: 5V
Operating Current: 200mA Interface: USB Uart
Resolution: 3mil/0.076mm (PCS90%,Code 39) Size: 54.8mm L* 31.5mm W * 13.5mm H
Scan Mode: 1280*800 CMOS Transport Package: Standard Export Carton Package
Specification: Black Trademark: GROW
Origin: China HS Code: 8473309000
Supply Ability: 5000 Package Size: 13.00cm * 8.00cm * 9.00cm
Package Gross Weight: 0.100kg
Highlight:

1280*800 CMOS Barcode Scanner Module

,

OCR Barcode Scanner Module

,

1D / 2D Barcode Scanner Module

Product Description

Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code 0
Description

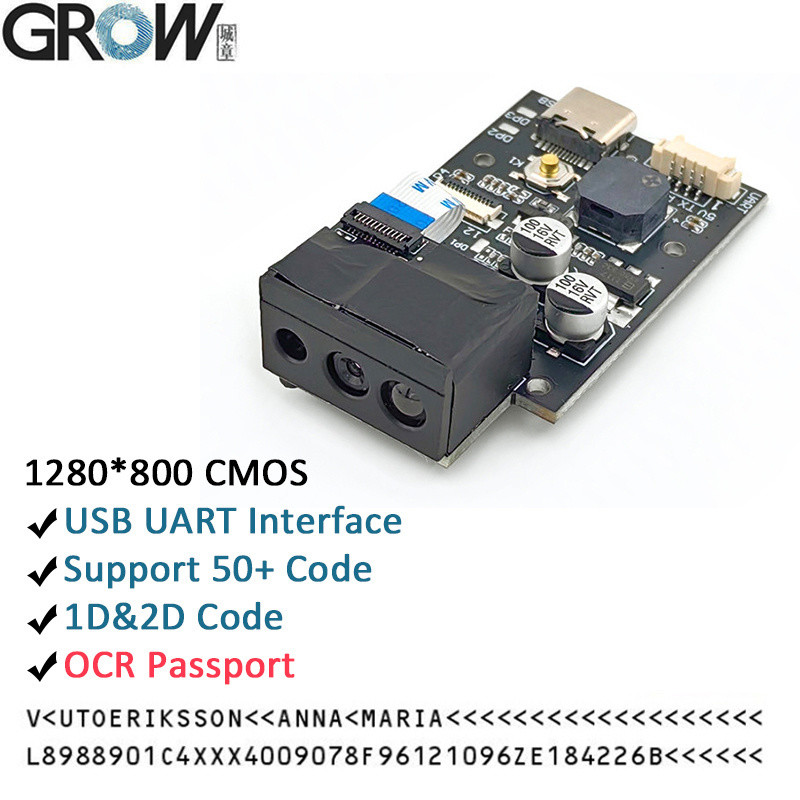

GM69Pro can read 50+ codes type, including bar code and qr code and OCR passport. It use 1280*800 CMOS, can read high density code, have USB and UART interface.

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
2. High-efficiency recognization and high upload speed for improving your working efficiency.

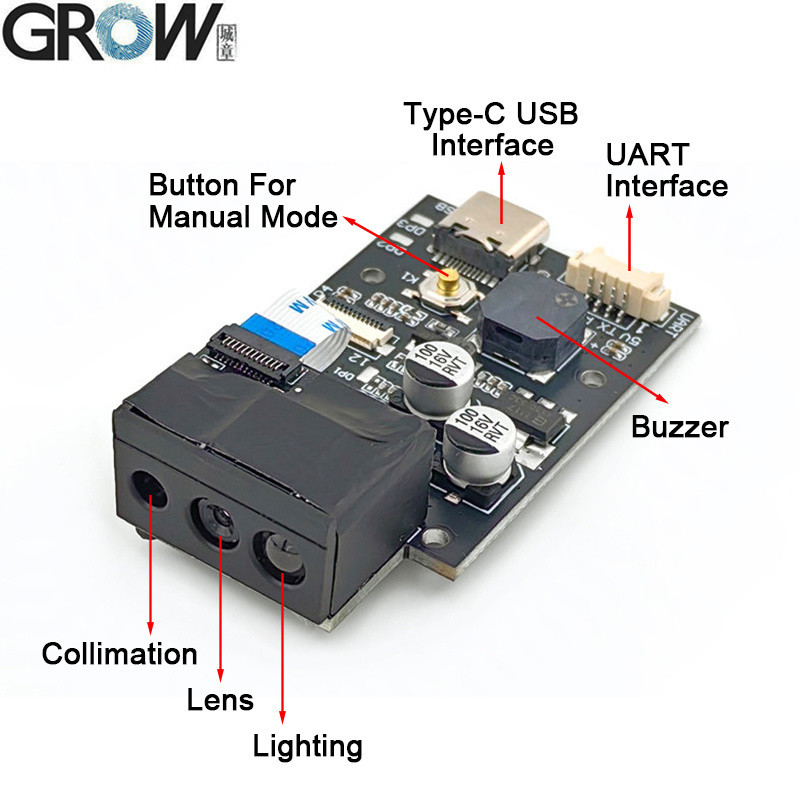

3. With buzzer for reminding you that the scanning successfully or not.

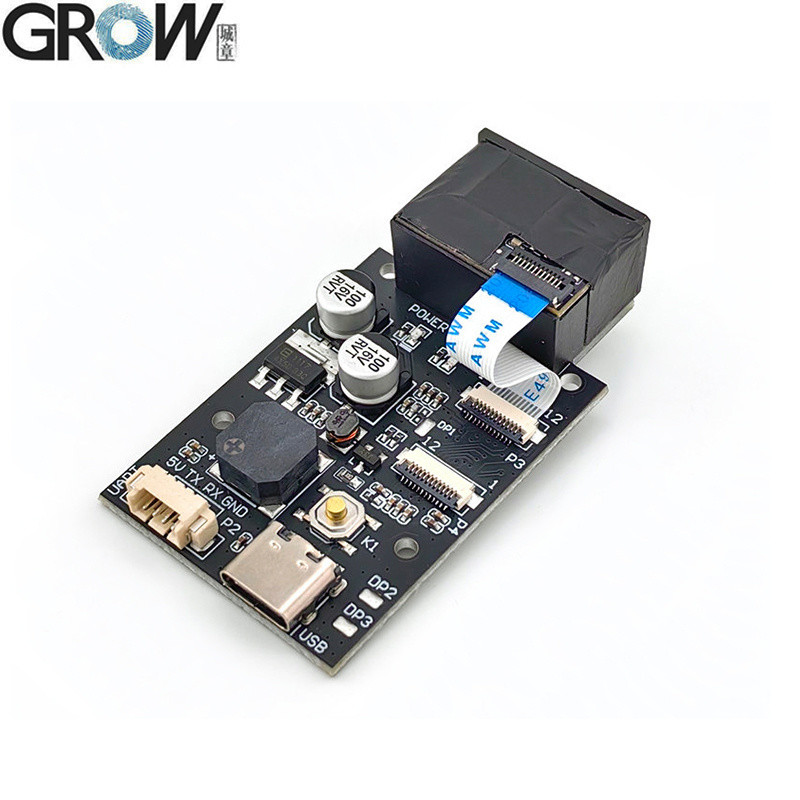

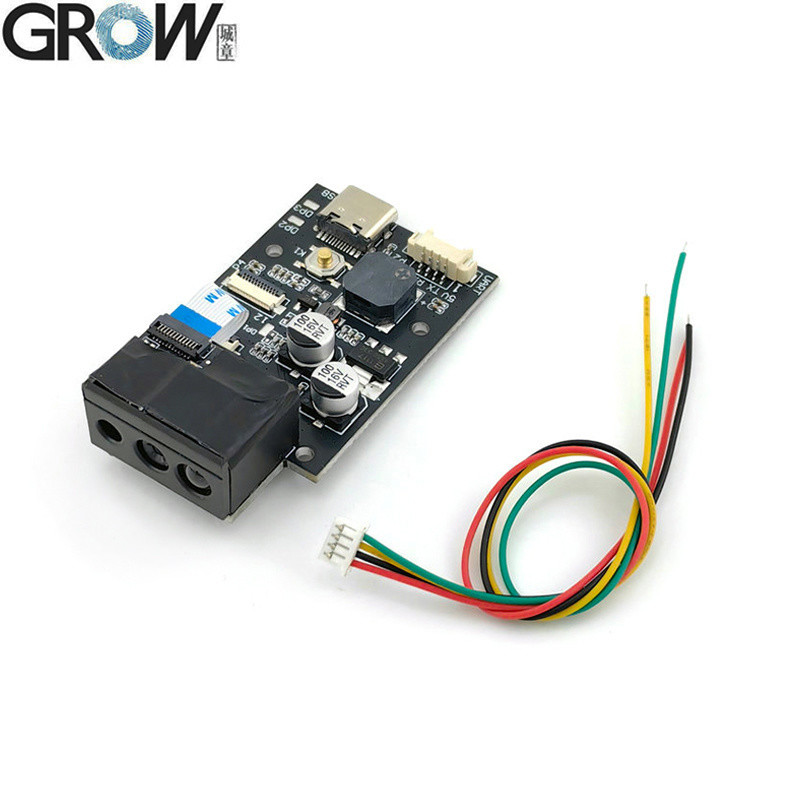

4. Compatible with USB and UART interface.
5. Over 180 configurable options
6. Macro support replace a string in the bar code with another
7. Programmable preamble postamble and termination strings
8.Superior reading performance utilizing advanced decoding algorithms


Specifications









Scanning Performance		 Interface USB(USB-KBW,USB-COM,HID-POS),TTL-232
Image sensor CMOS, Global
Pixel 1 million pixel
Resolution ≥3mil/0.076mm (PCS90%,CODE 39)
Read Mode Manual Mode,Induction Mode,Continuous Mode
Prompting mode LED, Buzzer

Read Code

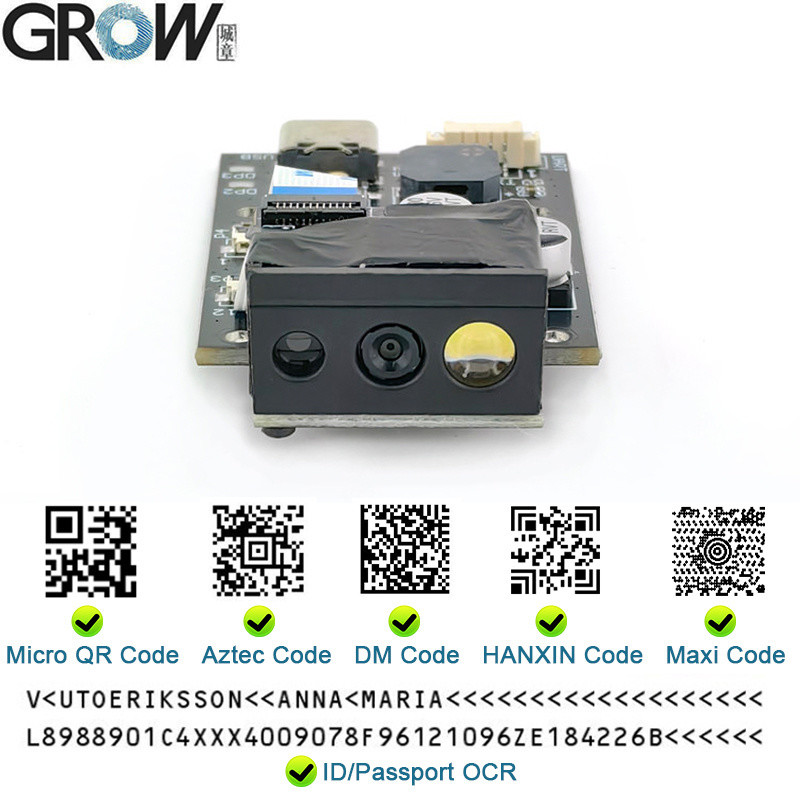

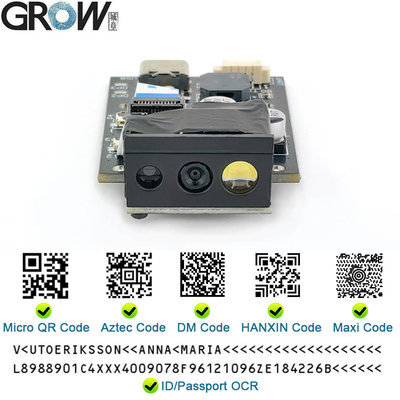

Type		     2D QR code,Micro QR,Data Matrix,PDF417,Micro PDF417
Maxi Code,Aztec Code,Hanxin Code,Pharma Code,Codablock A Code,Codablock F Code,Code16K,
Code49,Dot Code,Grid Matrix,Australian Post,British Post,USPS Intelligent Mail,Japanese Post,Planet Code,Postnet Code,UPU 4-State,KIX Code,etc.

1D		 UPC-A,UPC-E0,UPC-E1,EAN-8,EAN-13,ISBN,ISSN,
Code 128,GS1 128,ISBT 128,Code 39,Code 32 Pharmaceutical,Code 93,Code11,Codabar,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5,
NEC 2 of 5,MSI Plessey,UK Plessey,Posi Code,Telepen
Trioptic,BC412,Febraban,Coupon,HongKong 2 of 5(China Post),Korea Post,GS1 DataBar 14 (RSS-14)
GS1 Databar Limited,GS1 Databar Expanded
GS1 Composite Code,TLC 39 Code,OCR
Depth of Field 40mm~900mm (different bar code range)
Decode speed 65CM/S
Contrast ≥20%
Scanning angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
Roll: ±360°, Pitch:±60°, Skew: ±55°
Viewing Angle H:42° V:27°  opposite angles: 49°
Mechanical/
Electrical Parameters		 Weight 11.8g

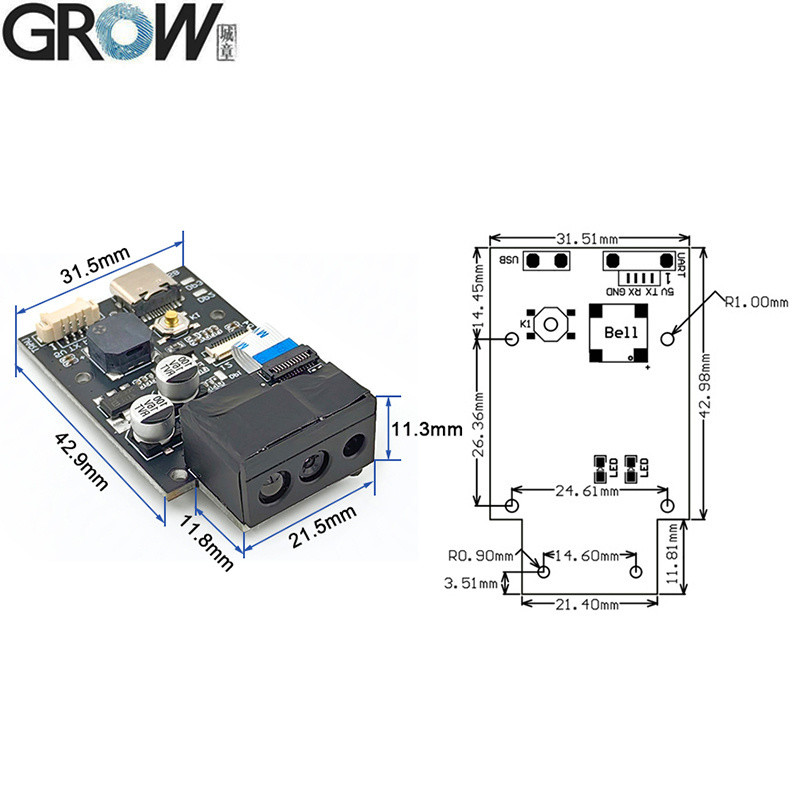

Dimension 54.8mm L* 31.5mm W * 13.5mm H
Operating Voltage DC 5V
Current 200mA(Average Work), 95mA(Standby), 38mA(Sleep)
Environmental Parameters Operating Temperature -20ºC~+50ºC
Storage Temperature -40ºC~+60ºC
Operating Humidity 5%~95%(Non-Condensing)
Environmental Light 0~100000LUX


Files

·Provide User Manual



Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code 1Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code 2Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code 3Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code 4Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code 5Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code 6Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code 7
Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code 8
Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code 9

Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code 10
Grow GM69PRO 1280*800 CMOS OCR / 1D / 2D Barcode Scanner Module Support Ocr Passport Code 11
