| Place of Origin: | China |
|---|---|
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton |
| Delivery Time: | Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 5000 |

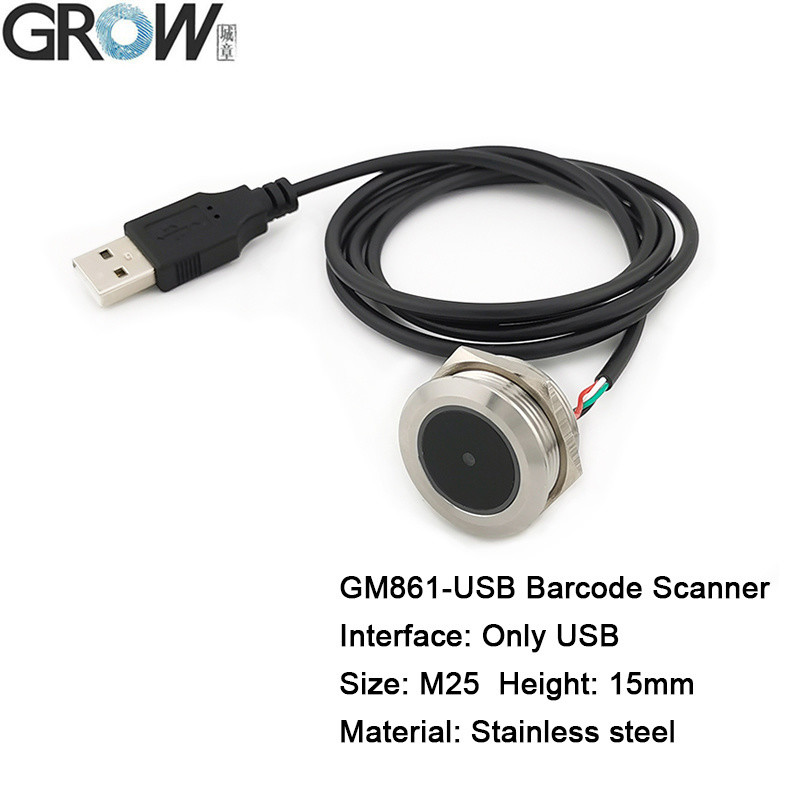

| Model NO.: | GM861-USB | Operating Current: | 70mA |
|---|---|---|---|
| Scan Mode: | 640*480 | Interface: | USB |
| Resolution: | 10mil | Weight: | 25g |
| Serial Baud Rate(Uart): | 57600 | Transport Package: | Standard Export Carton Package |
| Specification: | Diameter 28 (mm) | Trademark: | GROW |
| Origin: | China | HS Code: | 8473309000 |
| Supply Ability: | 5000 | Package Size: | 13.00cm * 8.00cm * 9.00cm |
| Package Gross Weight: | 0.100kg | Interface Type: | USB |
| Scan Element Type: | CMOS | Operating Voltage: | 5V |
| Customization: | Available | Customized Request | Shipping Cost: | About Shipping Cost And Estimated Delivery Time. |
| Payment Method: | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Parameter | Performance |
| Sensor | CMOS |
| Scan Mode | 640*480 |
| Indicator Light | Green light as read successfully |
Read Code Type |
1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS) |
| 2D: QR Code, Data Matrix, PDF417 | |
| GM861 Reading Distance |
5-30cm |
| Contrast* | >25% |
| Scan Angle** | Roll: 360° Pitch: 65° Yaw: 65° |
| Viewing Angle | 67° (Horizontal) 53° (Vertical) |
| Accuracy of reading* | ≥10mil |
| Parameter | Performance |
| Interface | USB |
| Size(mm) | External diameter: 28mm Internal diameter: 25mm Height: 15mm Thread M25 |
| Weight | 25 g |
| Prompting mode | LED Indicator |
| Operating Voltage | 5V |
| Operation Current | 70mA(Max) |
| Standby Current | ≤6mA(Typical) |
| Startup time | ≤250mS (Typical) |
| Parameter | Performance |
| Operating temperature | -20ºC~60ºC |
| Storage Temperature | -40ºC~+100ºC |
| Operating Humidity | 5%~95%(Non-Condensing) |
| Environmental Light | Normal indoor light source |
| Fall | Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly) |
