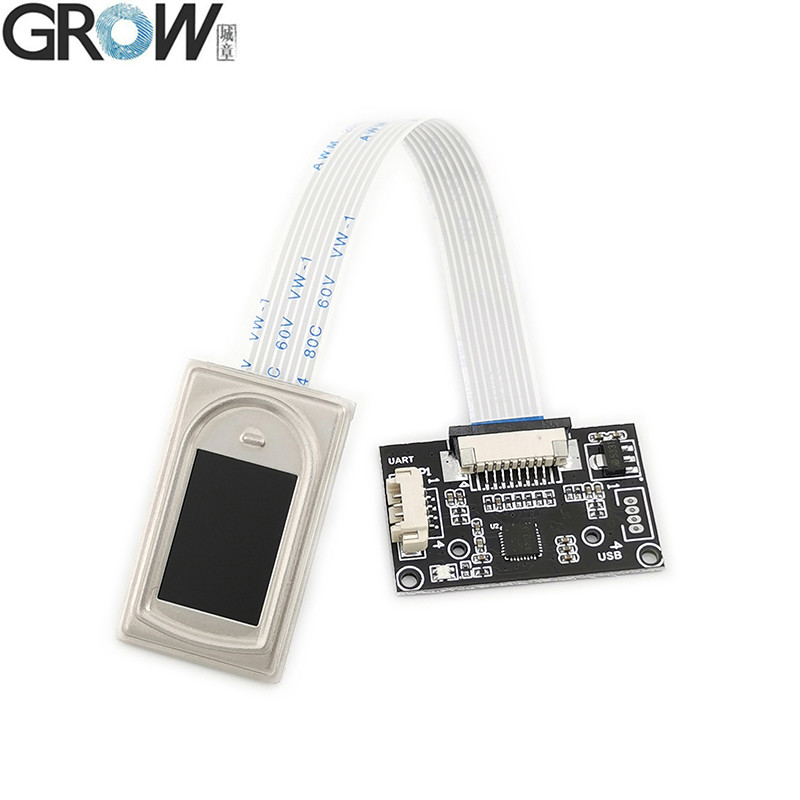

Grow R304A DC4.2-6V 208*288 Pixel Capacitive Fingerprint Module Scanner

Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms: T/T, PayPal
Supply Ability: 5000
Detail Information
Model NO.: R304A Screen: As Picture
Communication Interface: RS232, USB Fingerprint Capacity: 1500
Voltage: DC 4.2-6.0V Effective Collection Area: 12 * 17.5 (mm)
Fingerprint Module Size: 20.4 * 33.4 (mm) Sensing Array: 208*288 Pixel
Template Size: 512 Bytes Resolution: 508 DPI
Work Current: <55mA Security Level: 1-5, Default Is 3
Transport Package: Standard Export Carton Package Specification: Fingerprint Module Size: 20.4 * 33.4 (mm)
Trademark: GROW Origin: China
HS Code: 8471609000 Supply Ability: 5000
Voice Service: Without Voice Service Clock: Without Clock
Color: As Picture Samples: US$ 22.5/Piece|1 Piece(Min.Order)
Customization: Available | Customized Request Shipping Cost: Contact The Supplier About Freight And Estimated Delivery Time.
Payment Method: Initial Payment,Full Payment Currency: US$
Return&refunds: Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Product Description

R304s 208*288 Pixel Capacitive Fingerprint Module Scanner

Description

·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android



Specifications

·Interface:USB 2.0 and UART(3.3V-TTL logic)
·Resolution:508 DPI
·Work Current: <55mA
·Voltage: DC 4.2-6.0V
·Fingerprint capacity:1500
·Security Level: 1-5, default is 3
·Sensor Array: 208*288 pixel
·Template Size: 512 bytes
·Fingerprint reader module size: 20.4 * 33.4 (mm)
·Effective collection area: 12*17.5 (mm)
·ScanningSpeed: < 0.2 second
·Verification Speed: < 0.3 second
·Matching Method: 1:1; 1:N
·FRR (False Rejection Ratio): ≤0.01%
·FAR (False Acceptance Ratio): ≤0.00001%
·Work environment: -20°C ---55°C
·Work Humidity: 20-80%
·Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)



Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual



R304s 208*288 Pixel Capacitive Fingerprint Module Scanner
R304s 208*288 Pixel Capacitive Fingerprint Module Scanner



Grow R304A DC4.2-6V 208*288 Pixel Capacitive Fingerprint Module Scanner 3

R304s 208*288 Pixel Capacitive Fingerprint Module ScannerGrow R304A DC4.2-6V 208*288 Pixel Capacitive Fingerprint Module Scanner 5
Grow R304A DC4.2-6V 208*288 Pixel Capacitive Fingerprint Module Scanner 6
Grow R304A DC4.2-6V 208*288 Pixel Capacitive Fingerprint Module Scanner 7


R304s 208*288 Pixel Capacitive Fingerprint Module ScannerR304s 208*288 Pixel Capacitive Fingerprint Module ScannerR304s 208*288 Pixel Capacitive Fingerprint Module Scanner
R304s 208*288 Pixel Capacitive Fingerprint Module Scanner
