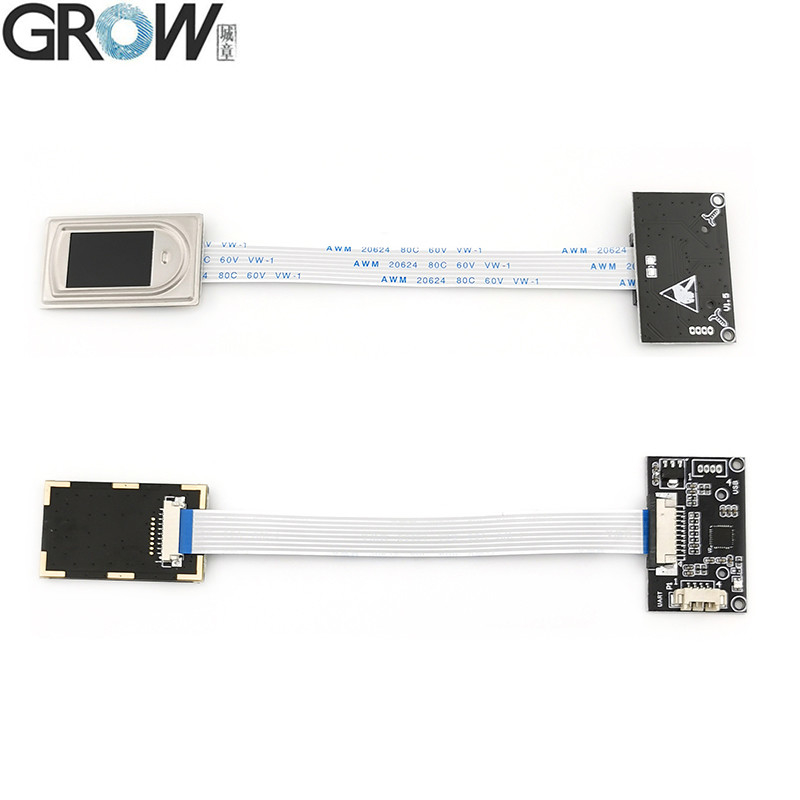

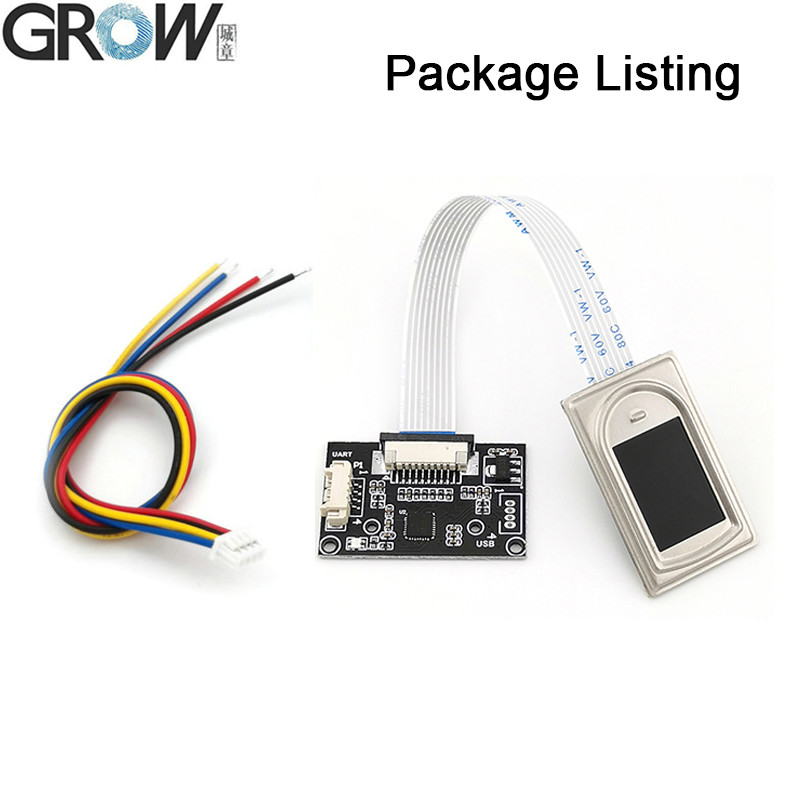

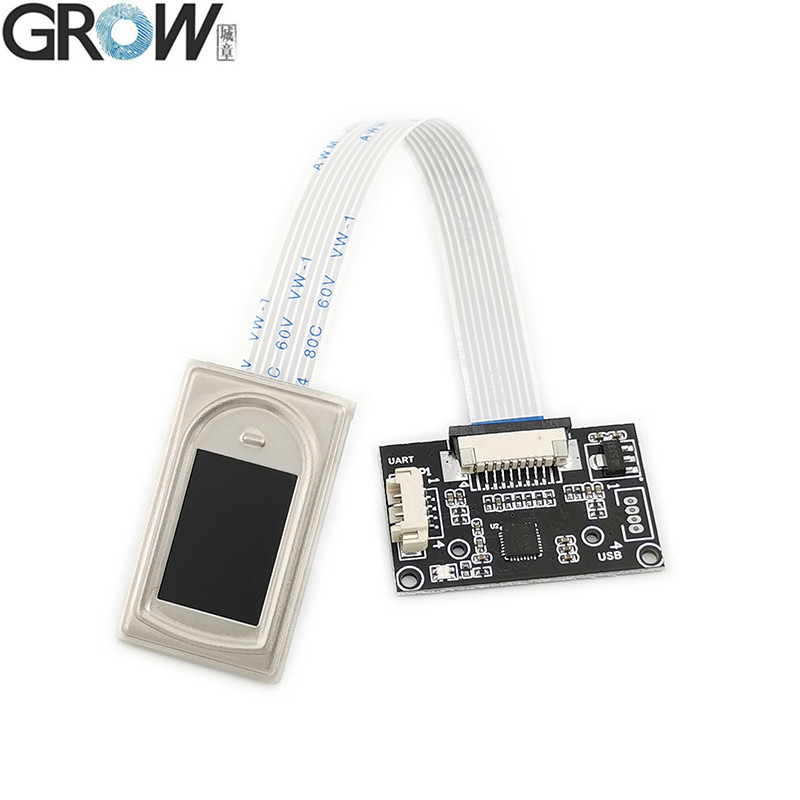

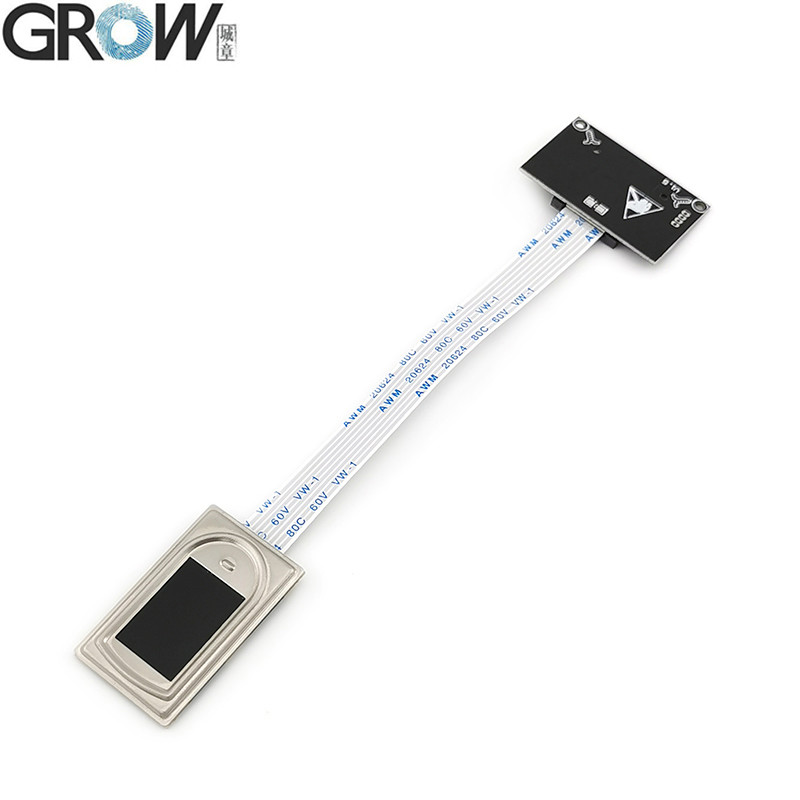

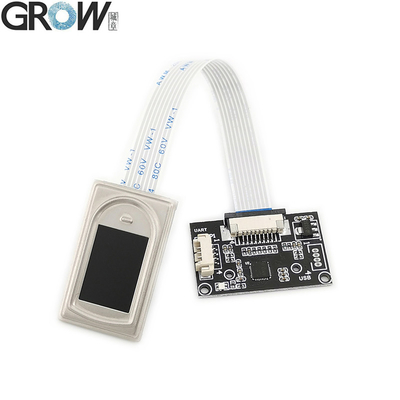

GROW R304A DC4.2-6V 208*288 Pixel Fingerprint Module Scanner Reader Free SDK With 1500 Capacity For Arduino Windows Android

Basic Information

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T,PayPal
Supply Ability:	5000

Get Best Price Contact Now

Detail Information

Model NO.:	R304A	Screen:	As Picture
Communication Interface:	RS232, USB	Fingerprint Capacity:	1500
Voltage:	DC 4.2-6.0V	Effective Collection Area:	12 * 17.5 (mm)
Fingerprint Module Size:	20.4 * 33.4 (mm)	Sensing Array:	208*288 Pixel
Template Size:	512 Bytes	Resolution:	508 DPI
Work Current:	<55mA	Security Level:	1-5, Default Is 3
Transport Package:	Standard Export Carton Package	Specification:	Fingerprint Module Size: 20.4 * 33.4 (mm)
Trademark:	GROW	Origin:	China
HS Code:	8471609000	Supply Ability:	5000
Voice Service:	Without Voice Service	Clock:	Without Clock
Color:	As Picture	Samples:	US$ 22.5/Piece\|1 Piece(Min.Order)
Customization:	Available \| Customized Request	Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.
Payment Method:	Initial Payment,Full Payment	Currency:	US$
Return&refunds:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:	6V Capacitive Fingerprint Sensor Arduino , 6V embedded fingerprint module , High Speed Capacitive Fingerprint Sensor Arduino

Product Description

Description

·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android

Specifications

·Interface:USB 2.0 and UART(3.3V-TTL logic)
·Resolution:508 DPI
·Work Current: <55mA
·Voltage: DC 4.2-6.0V

·Fingerprint capacity:1500
·Security Level: 1-5, default is 3
·Sensor Array: 208*288 pixel

·Template Size: 512 bytes

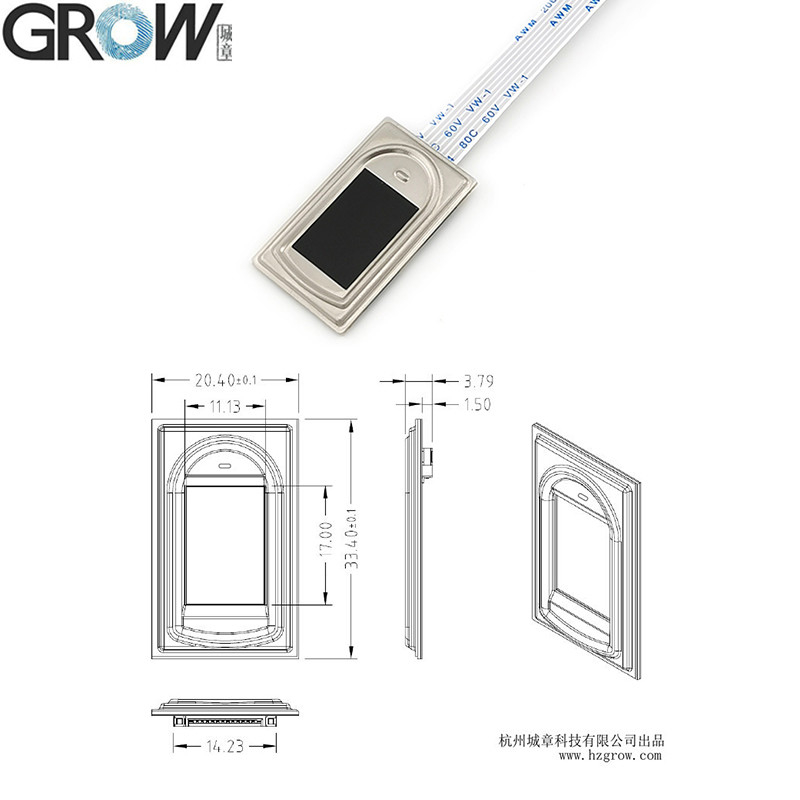

·Fingerprint reader module size: 20.4 * 33.4 (mm)
·Effective collection area: 12*17.5 (mm)
·ScanningSpeed: < 0.2 second
·Verification Speed: < 0.3 second
·Matching Method: 1:1; 1:N
·FRR (False Rejection Ratio): ≤0.01%
·FAR (False Acceptance Ratio): ≤0.00001%
·Work environment: -20°C ---55°C
·Work Humidity: 20-80%
·Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual
