GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417

GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417
GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417
GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417
Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms: T/T,PayPal
Supply Ability: 5000
Get Best Price Contact Now
Detail Information
Model NO.: GM811 Series Operating Current: 70mA
GM811-S Reading Distance: 5-30cm GM811-L Reading Distance: 7-50cm
Interface: USB/Uart Resolution: 10mil
Weight: 68g Transport Package: Standard Export Carton Package
Specification: 50*50 Mm Trademark: GROW
Origin: China HS Code: 8473309000
Supply Ability: 5000 Package Size: 13.00cm * 8.00cm * 9.00cm
Package Gross Weight: 0.250kg Interface Type: Uart, USB
Scan Element Type: CMOS Operating Voltage: 5V
Customization: Available | Customized Request Shipping Cost: About Shipping Cost And Estimated Delivery Time.
Payment Method: Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Product Description

GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 0
Description


GM811 series have GM811-S and GM811-L model.
The only difference between GM811-S and GM811-L is the lens.
GM811-S lens reading distance is 5-30cm.
GM811-L lens reading distance is 7-50cm.
(The actual data depends on the size and content of the code)

GM811 series bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen.

GM811 series bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.


Specifications

Parameter Performance
Sensor CMOS
Scan Mode 640*480

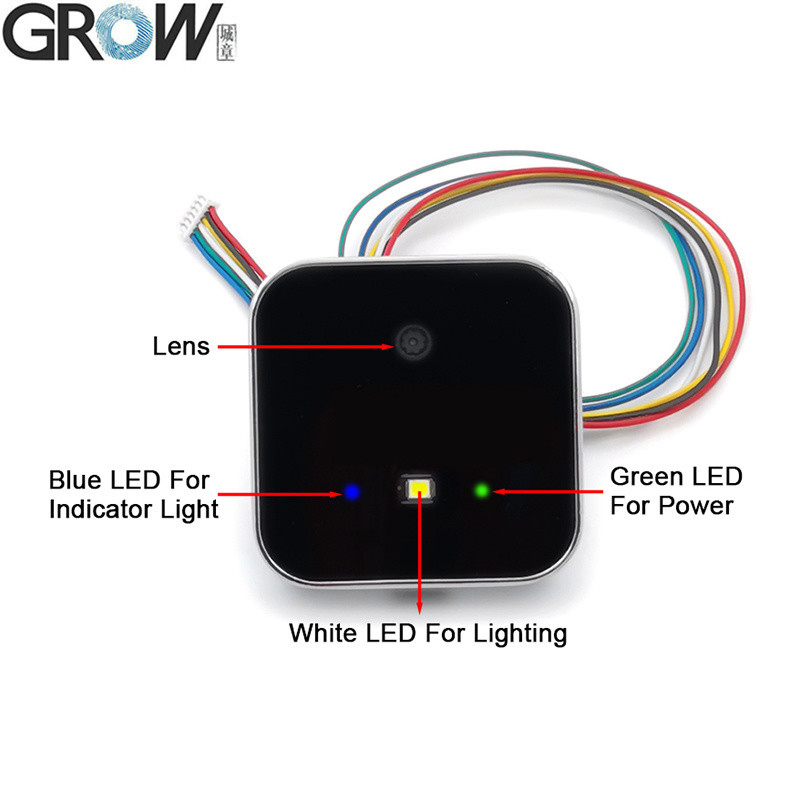

Lighting White LED
Power On Green LED
Indicator Light Blue LED

Read Code Type		 1D:   EAN-13, EAN-8, UPC-A, UPC-E   ISSN, ISBN, CodaBar,Code 128,
      Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5,
      Matrix 2 of 5, Code 39,Code 11, MSI-Plessey,
GS1 Composite,GS1-Databar (RSS)

2D:   QR Code, Data Matrix, PDF417
GM811-S
Reading Distance
5-30cm
GM811-L
Reading Distance
7-50cm
Contrast* >25%
Scan Angle** Roll: 360°  Pitch: 65°  Yaw: 65°
Viewing Angle 67° (Horizontal) 53° (Vertical)
Accuracy of reading* ≥10mil

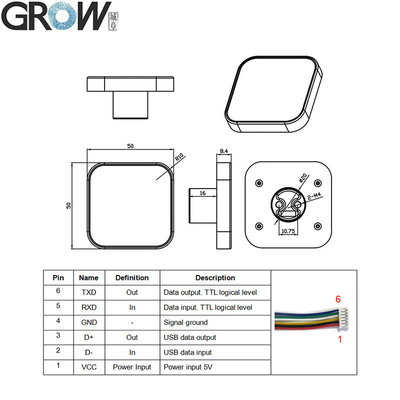

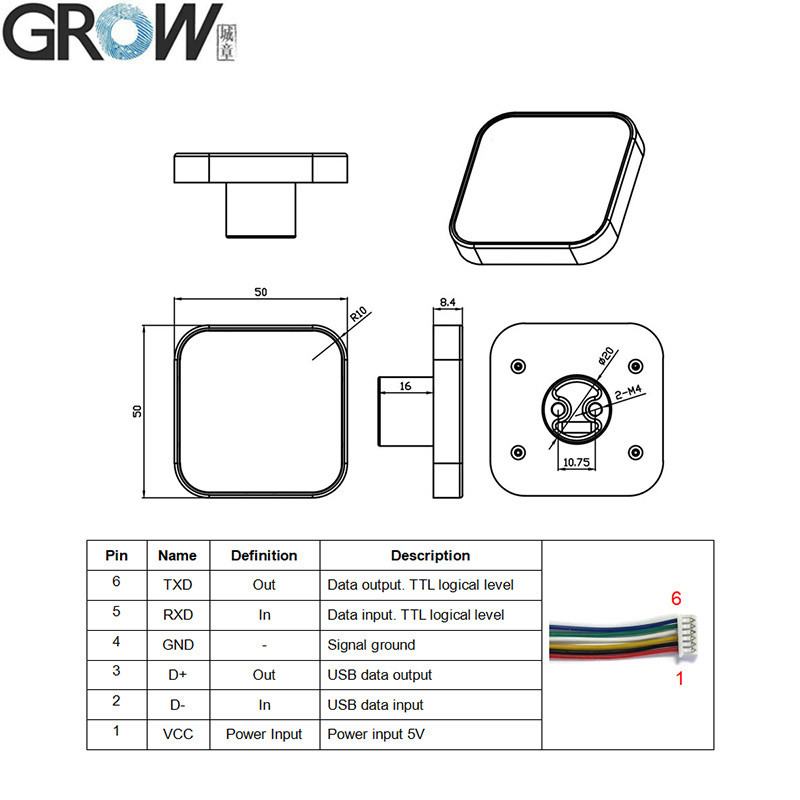

Mechanical/electrical Parameters:
        Parameter Performance
Interface TTL-232/USB
Size(mm) 50*50 mm
Weight 68 g
Prompting mode Buzzer  LED Indicator
Operating Voltage 5V
Operation Current ≤70mA
Continuous Reading Peak Current ≤120mA
Standby Current ≤6mA(Typical)
Startup time ≤250mS (Typical)

Environmental Parameters:
Parameter Performance
Operatingtemperature -20ºC~60ºC
Storage Temperature -40ºC~+70ºC
Operating Humidity 5%~95%(Non-Condensing)
Environmental Light Normal indoor light source
Fall Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)


Files

·Provide User Manual



GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 1GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 2GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 3GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 4
GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 5GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 6GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 7
GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 8
GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 9

GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 10
GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417 11
