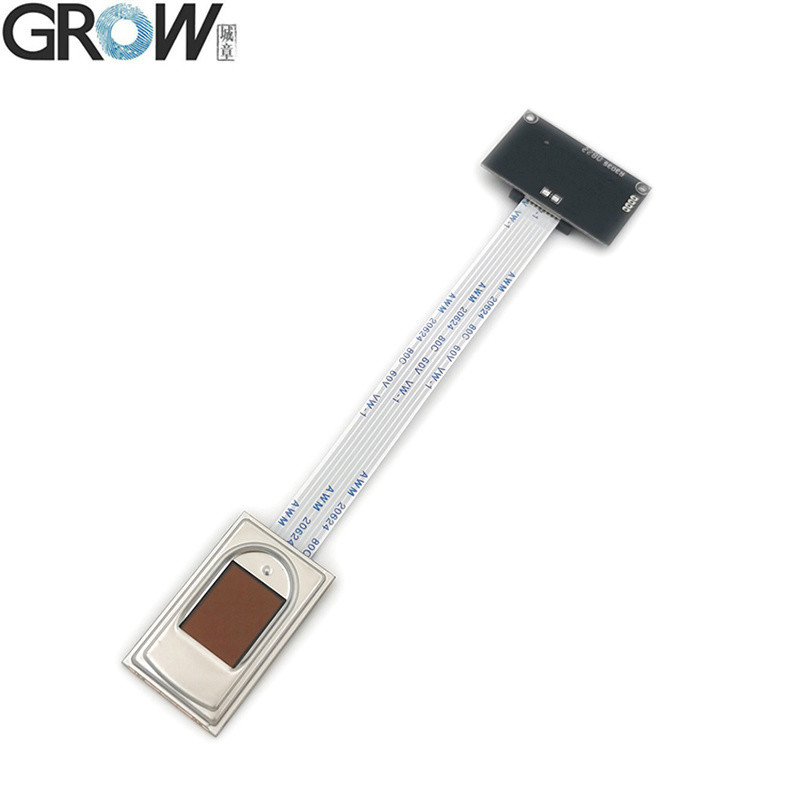

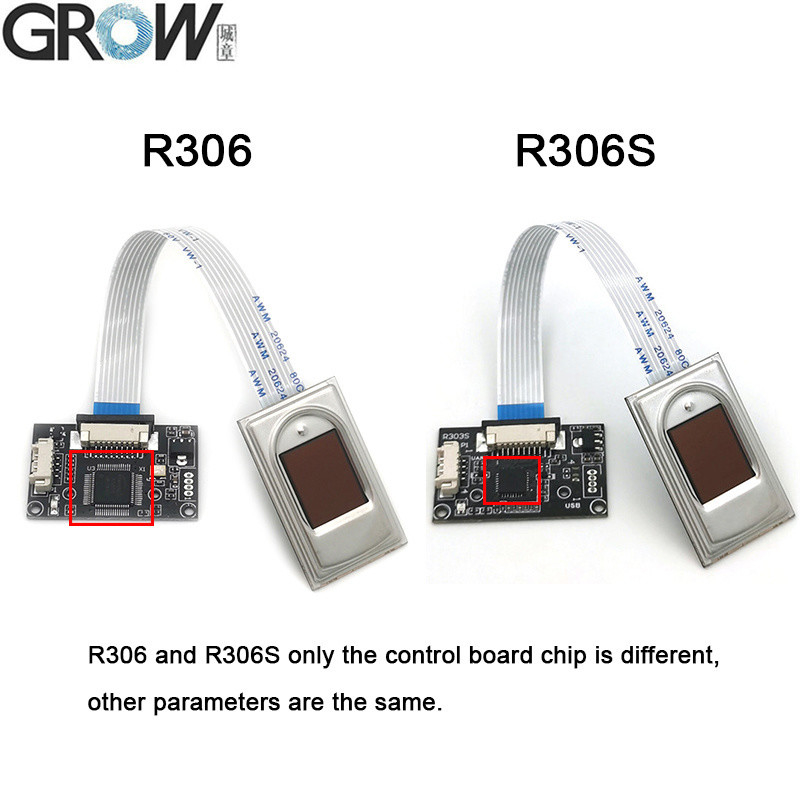

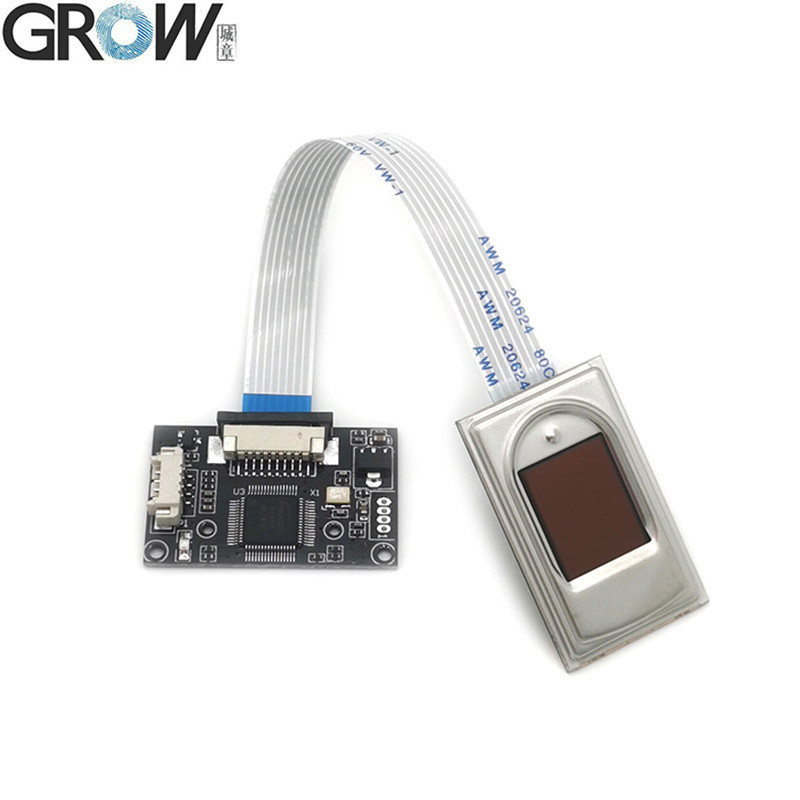

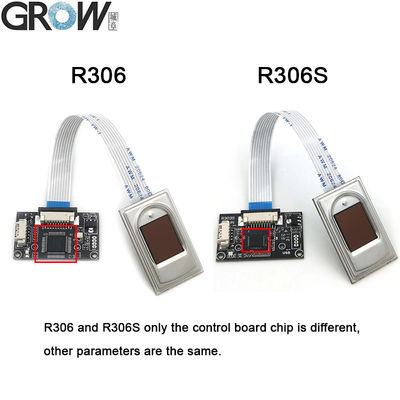

GROW R306/R306S Biometric USB UART Capacitive FPC1011F3 Fingerprint Module Scanner Sensor For Windows Android

Basic Information

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T,PayPal
Supply Ability:	5000

Get Best Price Contact Now

Detail Information

Model NO.:	R306	Screen:	As Picture
Communication Interface:	RS232, USB	Fingerprint Capacity:	1000
Voltage:	DC 4.2-6.0V	Effective Collection Area:	11 * 15 (mm)
Fingerprint Module Size:	20.4 * 33.4 (mm)	Resolution:	363 Dpi
Fingerprint Chip:	FPC1011f3	Peak Power Consumption:	60 Ma
Antistatic Capacity:	15kv	Transport Package:	Standard Export Carton Package
Specification:	Fingerprint Module Size: 20.4 * 33.4 (mm)	Trademark:	GROW
Origin:	China	HS Code:	8471609000
Supply Ability:	5000	Package Size:	13.00cm * 8.00cm * 9.00cm
Package Gross Weight:	0.100kg	Voice Service:	Without Voice Service
Clock:	Without Clock	Color:	As Picture
Customization:	Available \| Customized Request	Shipping Cost:	About Shipping Cost And Estimated Delivery Time.
Payment Method:	Initial Payment Full Payment	Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:	1000 Capacity Optical Fingerprint Sensor Module , 1000 Capacity biometric sensor module , 20.4*33.4mm Optical Fingerprint Sensor Module

Product Description

Description

·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android

Specifications

Power	DC 4.2V-6.0V	Interface	UART(TTL logical level)/ USB 2.0
Working current	40mA	Matching Mode	1:1 and 1:N
Peak current	55mA	Sensing Array	152*200 pixels
Resolution	363 dpi	Average searching time	< 0.2s (1:1000)
Baud rate	(9600*N)bps, N=1~12 (default N=6)	Character file size	256 bytes
Image store time	<0.1s	Template size	512 bytes
Storage capacity	1000	Security level	5 (1, 2, 3, 4, 5(highest))
FAR	<0.0001%	FRR	<1%
Working environment	Temp: -20ºC- +45ºC	Storage environment	Temp: -40ºC- +55ºC
Working environment	RH: 10%-85%	Storage environment	RH: <85%

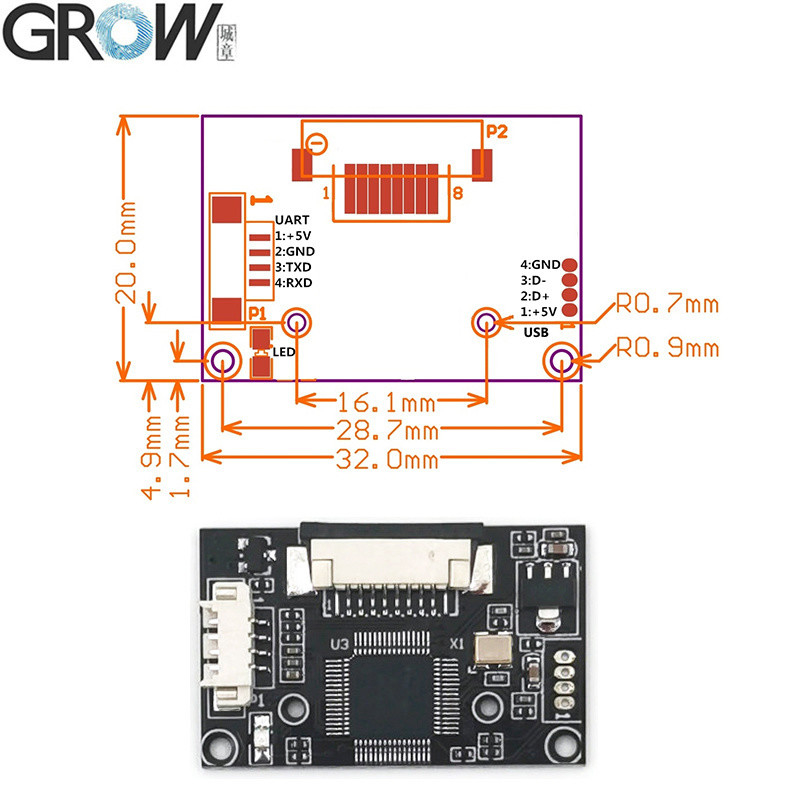

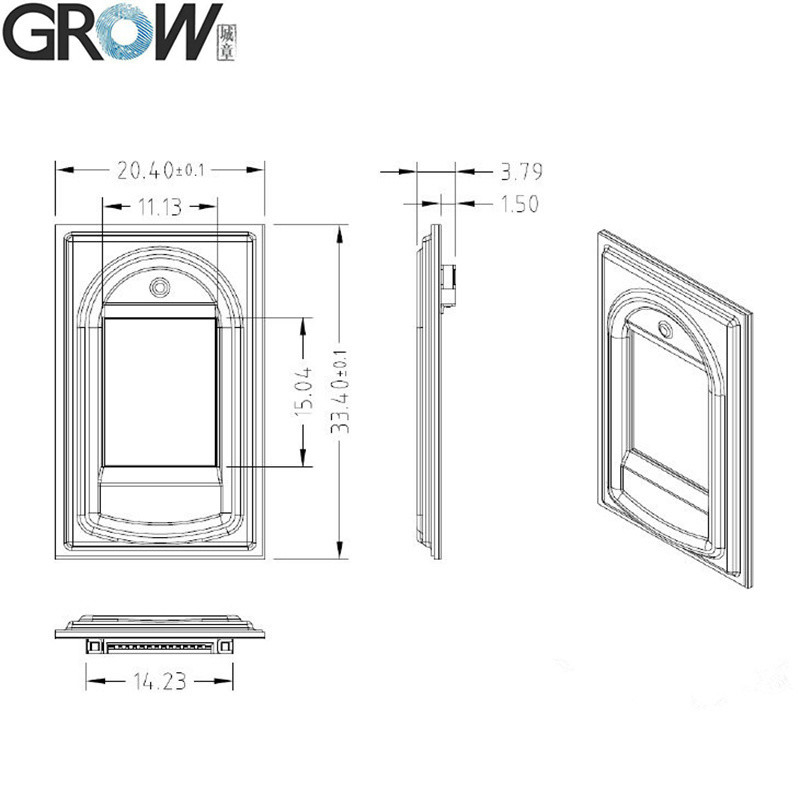

Window dimension	11mm*15mm	Sensor Size	33.4*20.4mm

Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual

GROW R306/R306S Biometric USB UART Capacitive FPC1011F3 Fingerprint Module Scanner Sensor For Windows Android 2
