GROW GM60 Stainless Steel LED Control Ring Indicator Light UART Interface 1D/2D Bar Code QR Code Barcode Reader Module

Basic Information

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T,PayPal
Supply Ability:	5000

Get Best Price Contact Now

Operating Current:

70mA

Scan Mode:

640*480

Interface:

Uart

Resolution:

5mil

Weight:

25g

Serial Baud Rate(Uart):

57600

Transport Package:

Standard Export Carton Package

Specification:

External Diameter: 28mm

Trademark:

GROW

Origin:

China

HS Code:

8473309000

Supply Ability:

5000

Interface Type:

RS232

Scan Element Type:

CMOS

Operating Voltage:

3.3V

Samples:

US$ 15.9/Piece 1 Piece(Min.Order) |

Customization:

Available | Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Payment Method:

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Specifications

SPECIFICATION
Model	GM60
Type	Barcode Scanner
Decoding Ability	QR Code, Data Matrix, PDF417,EAN13,UPC,Code 39,Code 93,Code 128,UCC/EAN 128
Scan Mode	640*480
Interface	UART
Resolution	5mil
Serial Baud Rate(UART)	57600
Operating Voltage	3.3V
Operating Current	70mA
Contrast	≥25%
Weight	25g

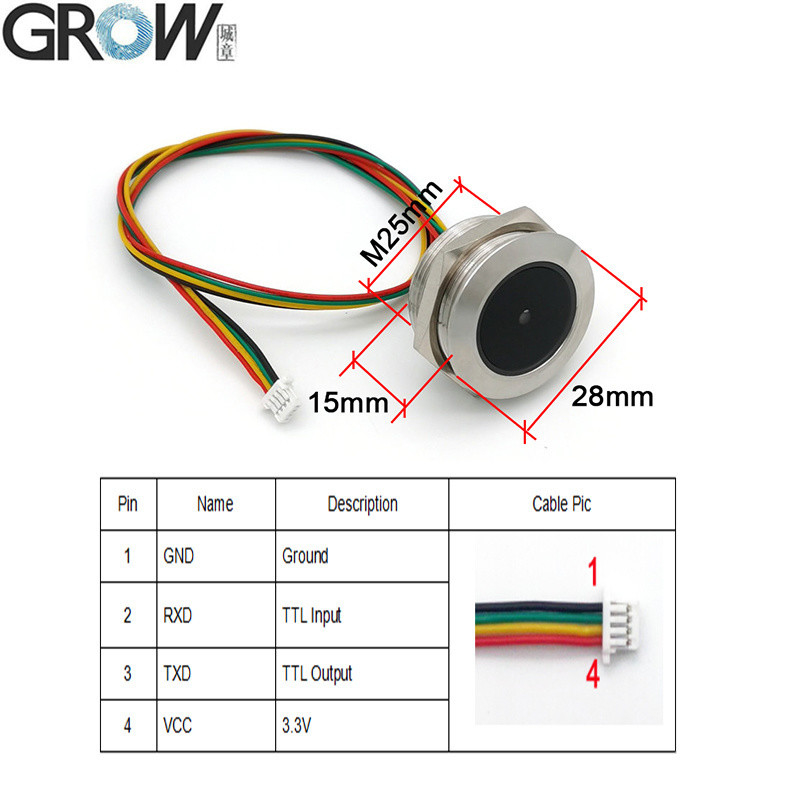

Size	External Diameter 28mm Internal Diameter 25mm Height 15mm Thread M25
Scan Angle	Roll 360°, Pitch 55°, Yaw 55°
Viewing Angle	69°(Inclination), 56°(Elevation)

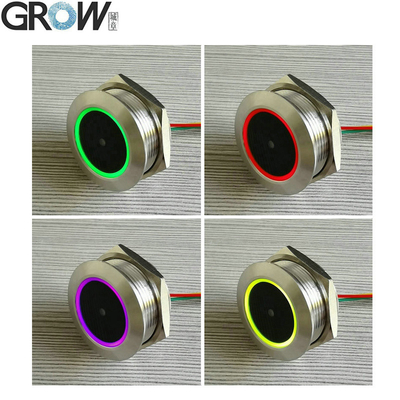

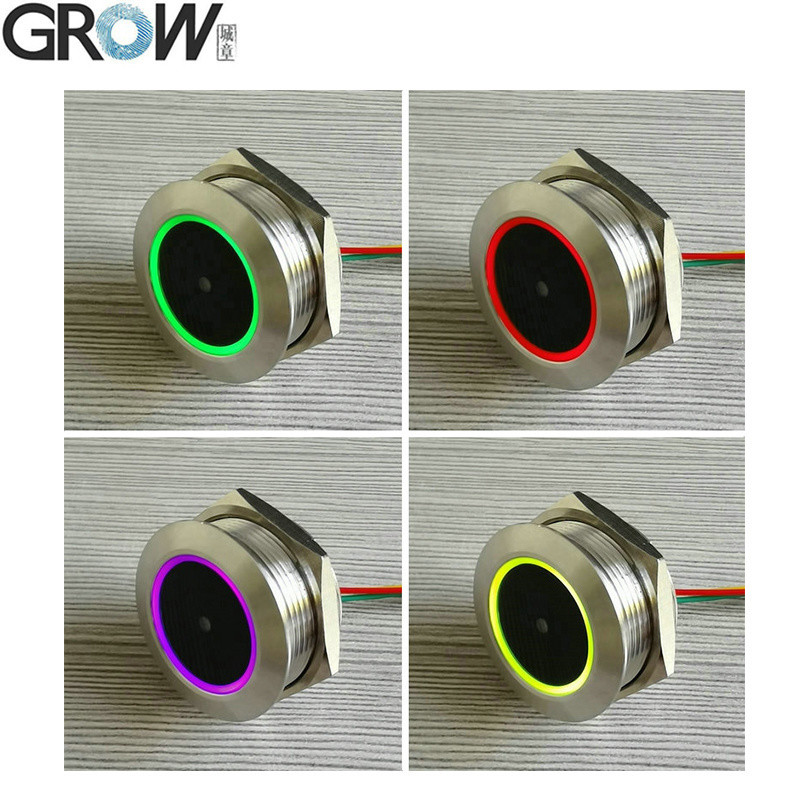

Light	Colorful indicator/green light flashing prompt reading success
Operating Temperature	-30 degrees to 70 degrees
Storage Temperature	-30 degrees to 85 degrees
Temperature Humidity	5% to 95% Relative humidity, Non-condensing
