Detail Information

Model NO.:	GM65-S	Operating Current:	70mA(MAX)
Reading Distance:	25 - 250mm	Interface:	USB/Uart
Resolution:	≥10mil	Weight:	7g

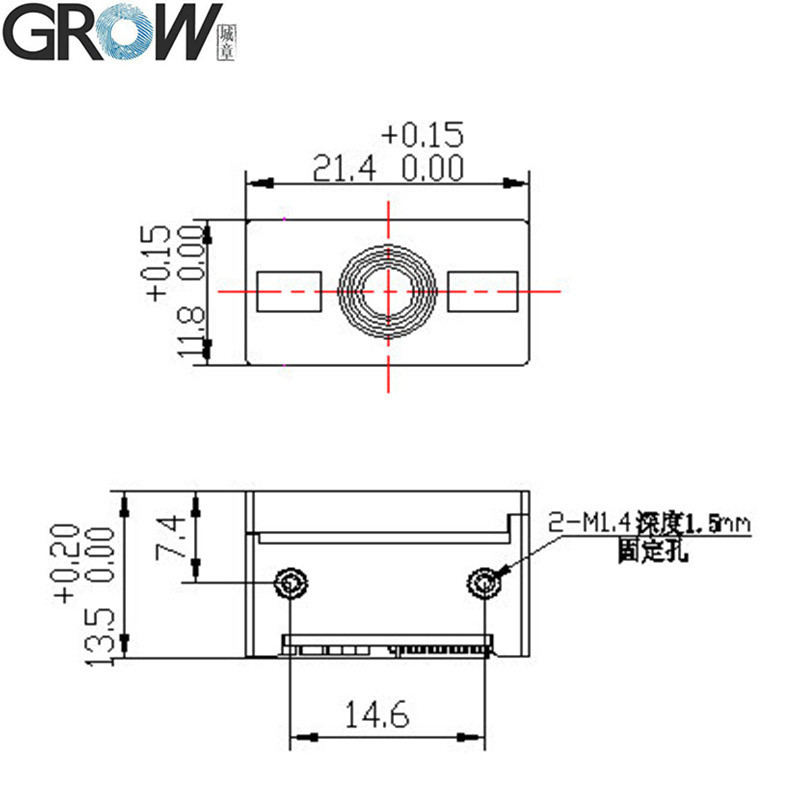

Transport Package:	Standard Export Carton Package	Specification:	21.413.511.8mm
Trademark:	GROW	Origin:	China
HS Code:	8473309000	Supply Ability:	5000
Package Size:	13.00cm * 8.00cm * 9.00cm	Package Gross Weight:	0.100kg
Interface Type:	Uart, USB	Scan Element Type:	CMOS
Operating Voltage:	3.3V	Customization:	Available \| Customized Request
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.	Payment Method:	Initial Payment Full Payment
Currency:	US$	Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:	High Efficiency 2d Barcode Scanner Module , Easy Integration 2d Barcode Scanner Module , Easy Integration Barcode Reader Arduino

Product Description

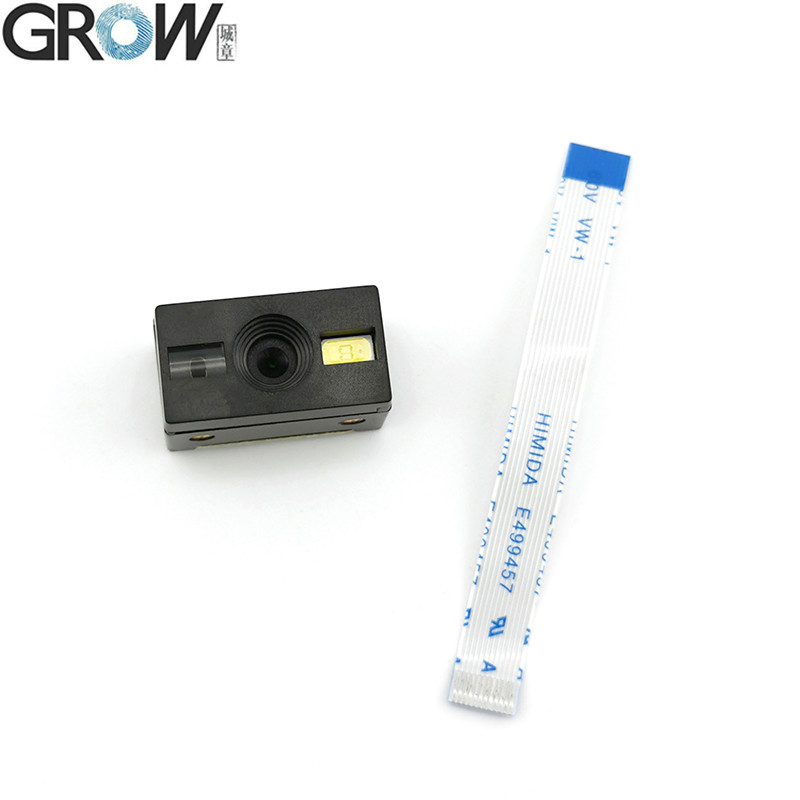

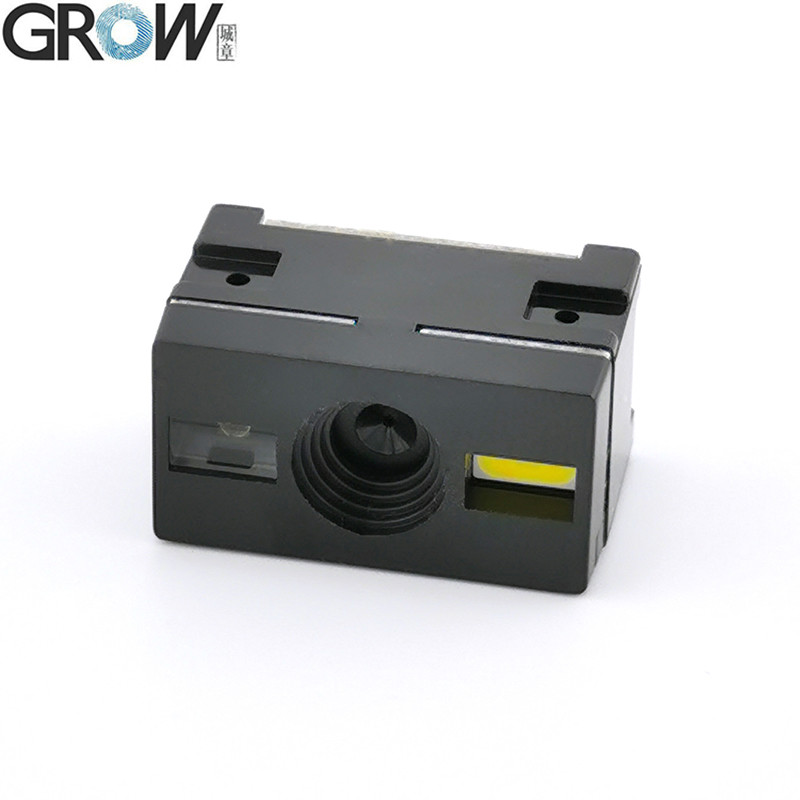

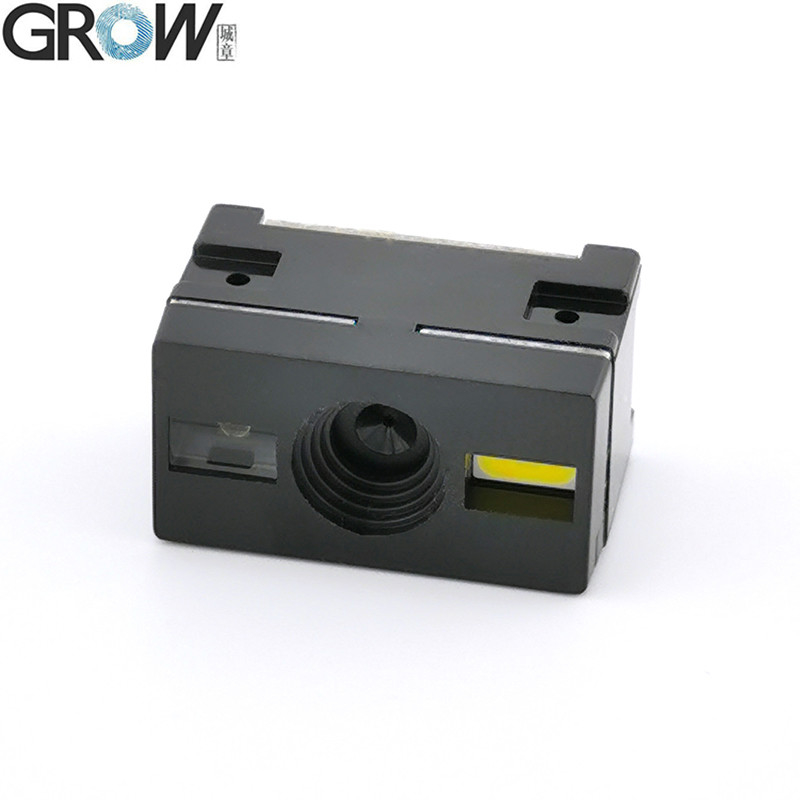

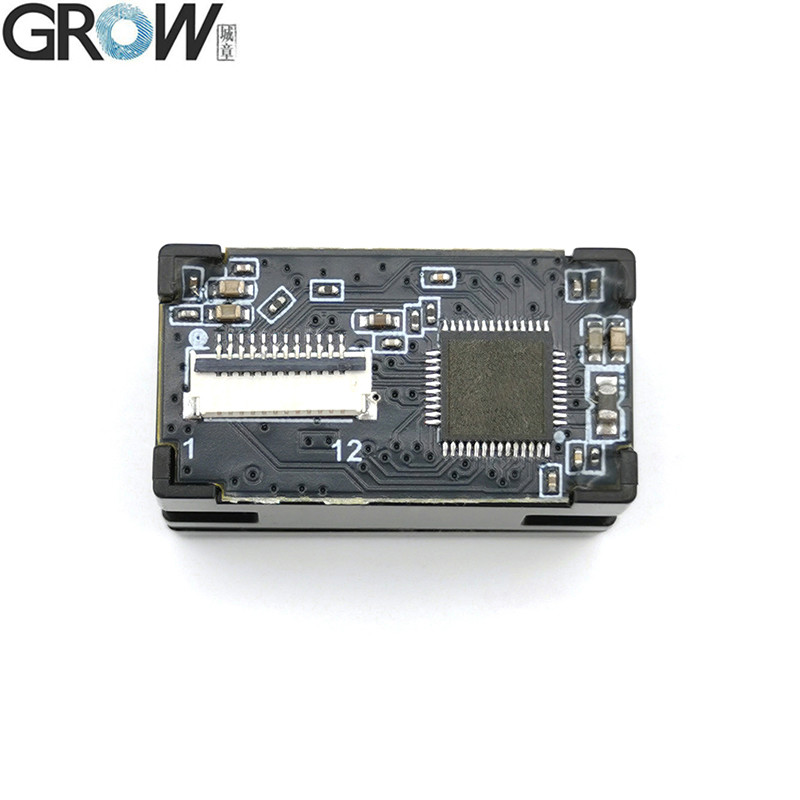

Grow GM65-S Small 1d/2D Barcode Scanner Module Reader

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Specifications

·Decoding Ability:

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39, Code 11, MSI-Plessey, GS1 Composite, GS1-Databar(RSS)

2D: QR Code , PDF417, Data Matrix, Micro QR, Micro PDF417, Aztec

·Resolution:≥10mil
·Reading Distance :25 - 250mm
·Interfaces: USB2.0 UART
·Operating Voltage :3.3V
·Operating Current :70mA(Max)
·Weight:7g

·Type of Illuminant: 617nm LED(Aimer), 6500K LEDs(Illumination)

·Scan Angle: Roll:0-360°, Pitch:±65°, Yaw:±65°.

·Scanning angle Inclination angle: 67° (Horizontal) 53° (Vertical) Print Contrast 30% minimum reflective difference

·LED Indicator:Buzzer and bi-color light: Red-power, Blue-decoding Successfully

·Operating Temperature:-20 degrees to 60 degrees

·Storage Temperature:-40 degrees to 70 degrees

·Temperature Humidity:5% to 95% Relative humidity, Non-condensing

·Light Levels:0-85000LUX

Files

·Provide User Manual

Tag:

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T, PayPal
Supply Ability:	5000

High Efficiency 2d Barcode Scanner Module Barcode Reader Arduino Easy Integration
