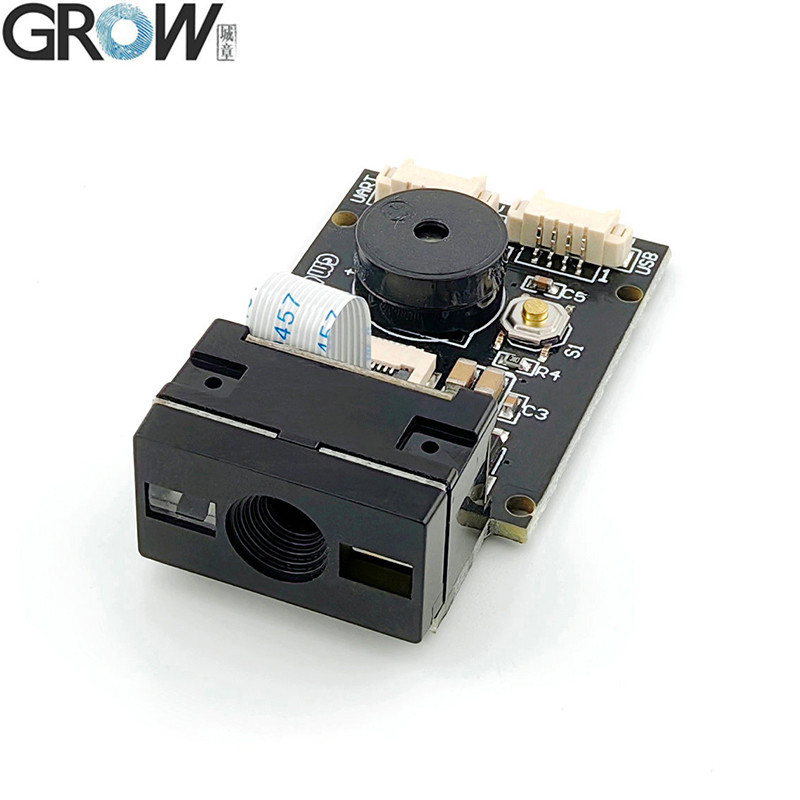

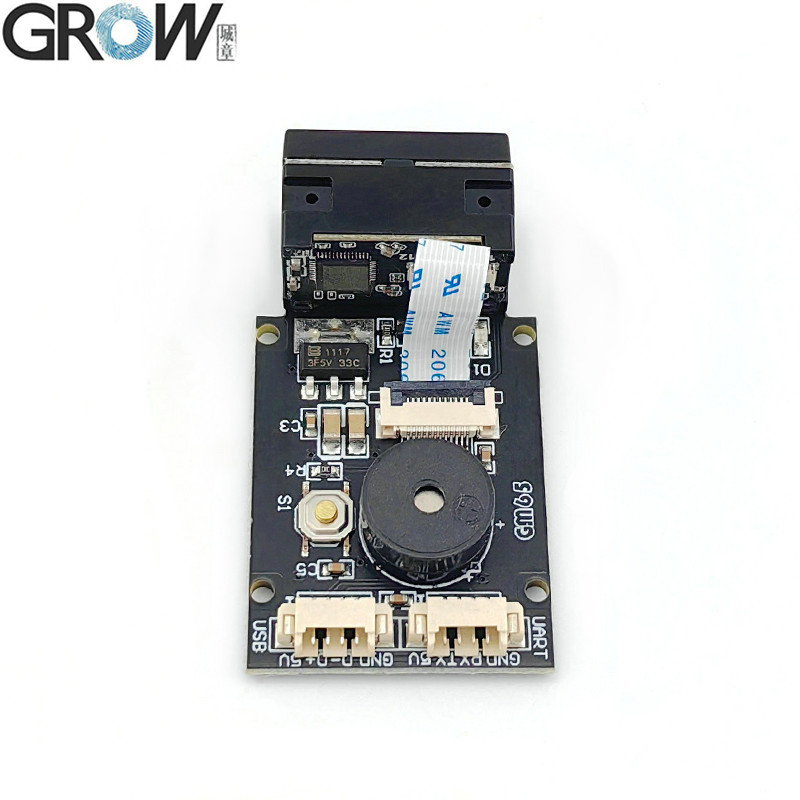

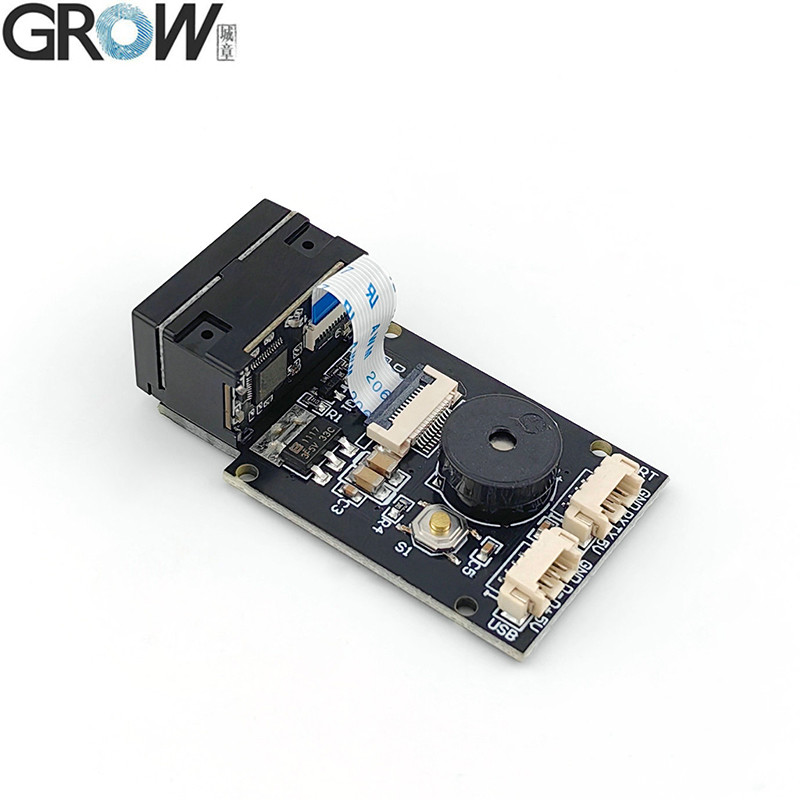

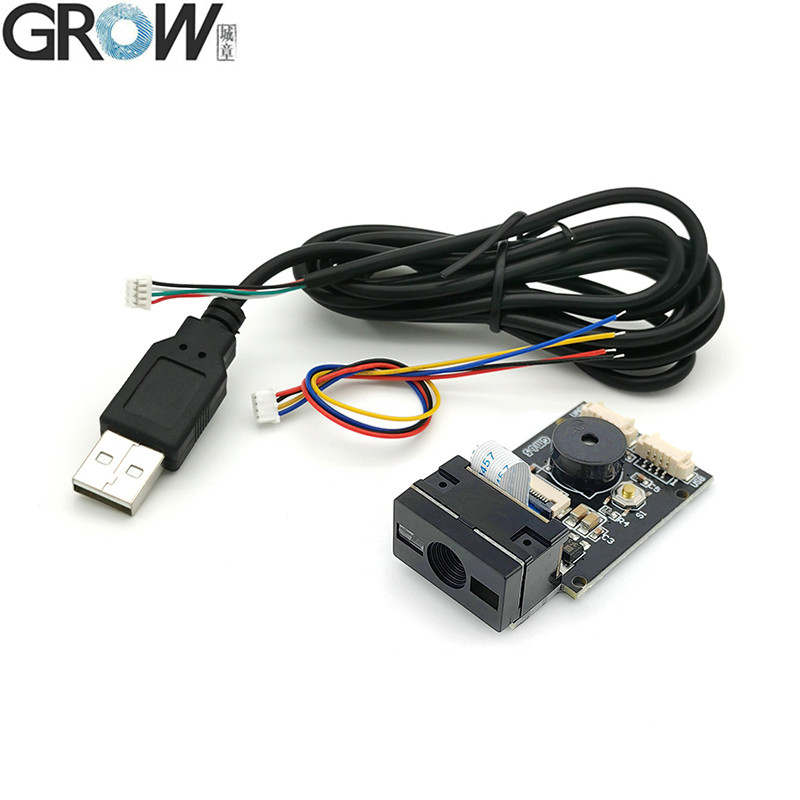

Accurate Barcode Scanner Module 70mA Standard Advanced 25-250mm Reading Distance

Description

        1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
        2. High-efficiency recognization and high upload speed for improving your working efficiency.

        3. With buzzer for reminding you that the scanning successfully or not.

        4. Compatible with USB and UART interface.

        5. Over 180 configurable options

        6. Macro support replace a string in the bar code with another

        7. Programmable preamble postamble and termination strings

        8.Superior reading performance utilizing advanced decoding algorithms



Specifications

·Decoding  Ability:

   1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39, Code 11, MSI-Plessey, GS1 Composite, GS1-Databar(RSS)

   2D: QR Code , PDF417, Data Matrix, Micro QR, Micro PDF417, Aztec

·Resolution: ≥10mil
·Reading Distance :25 - 250mm
·Interfaces: USB2.0 UART
·Operating Voltage :5V
·Operating Current :70mA(Max)



·Type of Illuminant: 617nm LED(Aimer), 6500K LEDs(Illumination)

·Scan Angle: Roll:0-360°, Pitch:±65°, Yaw:±65°

·Scanning angle Inclination angle: 67° (Horizontal) 53° (Vertical)    Print Contrast 30% minimum reflective difference

·LED Indicator:Buzzer and bi-color light: Red-power, Blue-decoding Successfully

·Operating Temperature:-20 degrees to 60 degrees

·Storage Temperature:-40 degrees to 70 degrees

·Temperature Humidity:5% to 95% Relative humidity, Non-condensing

·Light Levels:0-85000LUX



Files

·Provide User Manual
