Home > Products> Barcode Scanner Module> GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module

GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module

GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module
GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module
GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module
Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms: T/T,PayPal
Supply Ability: 5000
Get Best Price Contact Now
Detail Information
Model NO.: GM65 Operating Current: 70mA(MAX)
Reading Distance: 25 - 250mm Interface: USB/Uart
Resolution: ≥10mil Transport Package: Standard Export Carton Package
Specification: Black Trademark: GROW
Origin: China HS Code: 8473309000
Supply Ability: 5000 Package Size: 13.00cm * 8.00cm * 9.00cm
Package Gross Weight: 0.200kg Interface Type: Uart, USB
Scan Element Type: CMOS Operating Voltage: 5V
Customization: Available | Customized Request Shipping Cost: About Shipping Cost And Estimated Delivery Time.
Payment Method: Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

Accurate Barcode Scanner Module

,

Accurate arduino qr code reader

,

Standard Barcode Scanner Module

Product Description

GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 0
Description

        1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
        2. High-efficiency recognization and high upload speed for improving your working efficiency.

        3. With buzzer for reminding you that the scanning successfully or not.

        4. Compatible with USB and UART interface.

        5. Over 180 configurable options

        6. Macro support replace a string in the bar code with another

        7. Programmable preamble postamble and termination strings

        8.Superior reading performance utilizing advanced decoding algorithms



Specifications

·Decoding  Ability:

   1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39, Code 11, MSI-Plessey, GS1 Composite, GS1-Databar(RSS)

   2D: QR Code , PDF417, Data Matrix, Micro QR, Micro PDF417, Aztec

·Resolution: ≥10mil
·Reading Distance :25 - 250mm
·Interfaces: USB2.0 UART
·Operating Voltage :5V
·Operating Current :70mA(Max)



·Type of Illuminant: 617nm LED(Aimer), 6500K LEDs(Illumination)

·Scan Angle: Roll:0-360°, Pitch:±65°, Yaw:±65°

·Scanning angle Inclination angle: 67° (Horizontal) 53° (Vertical)    Print Contrast 30% minimum reflective difference

·LED Indicator:Buzzer and bi-color light: Red-power, Blue-decoding Successfully

·Operating Temperature:-20 degrees to 60 degrees

·Storage Temperature:-40 degrees to 70 degrees

·Temperature Humidity:5% to 95% Relative humidity, Non-condensing

·Light Levels:0-85000LUX



Files

·Provide User Manual

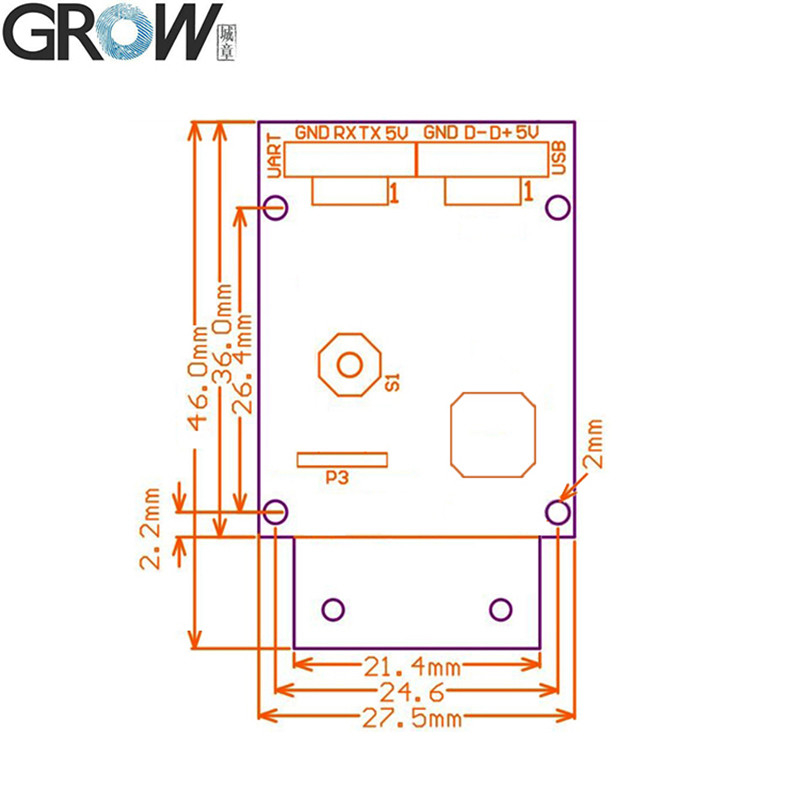

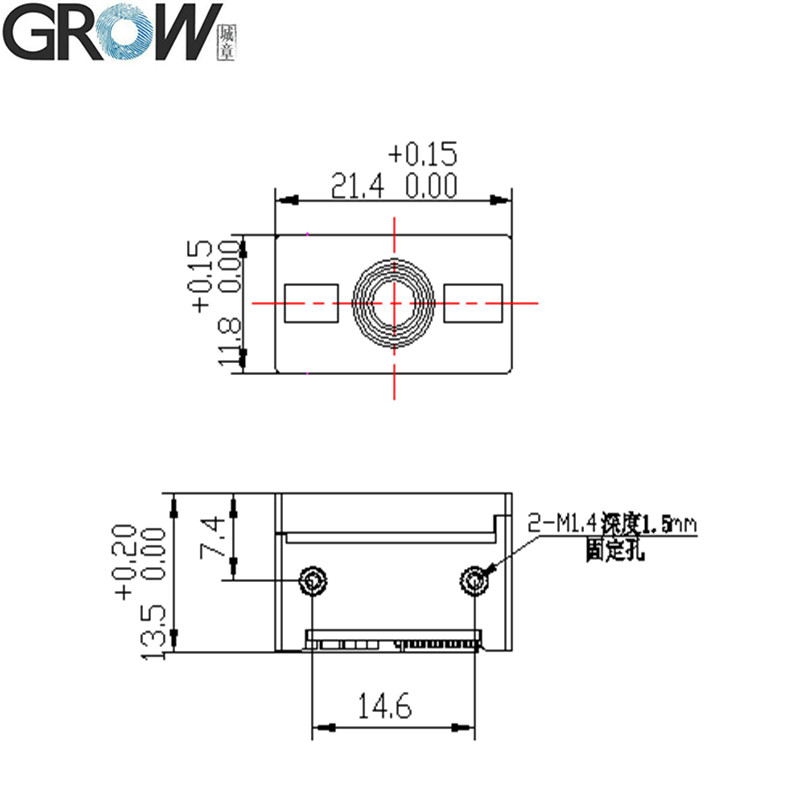

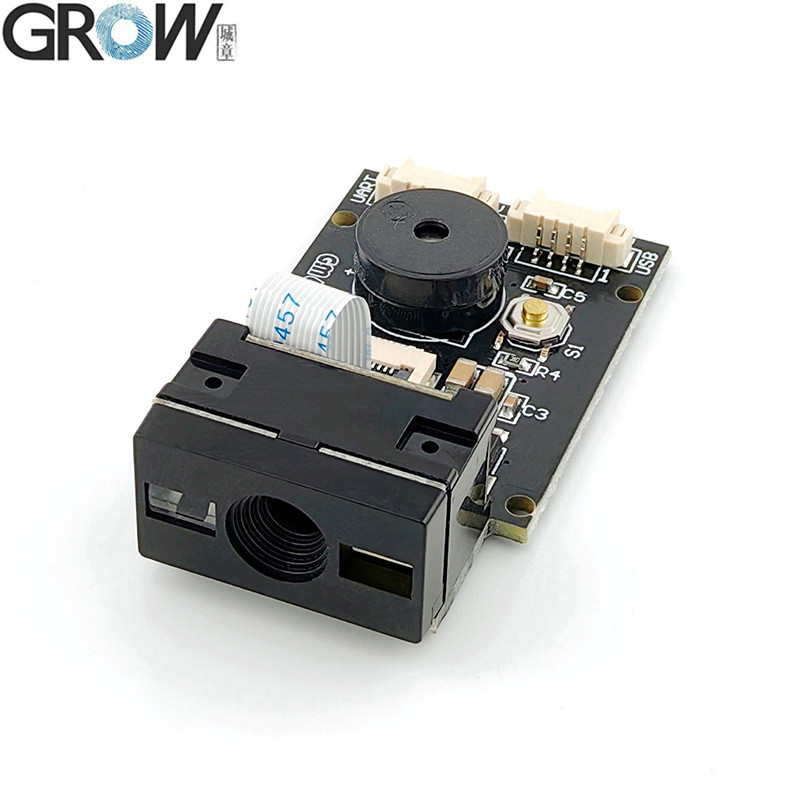

GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 1GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 2

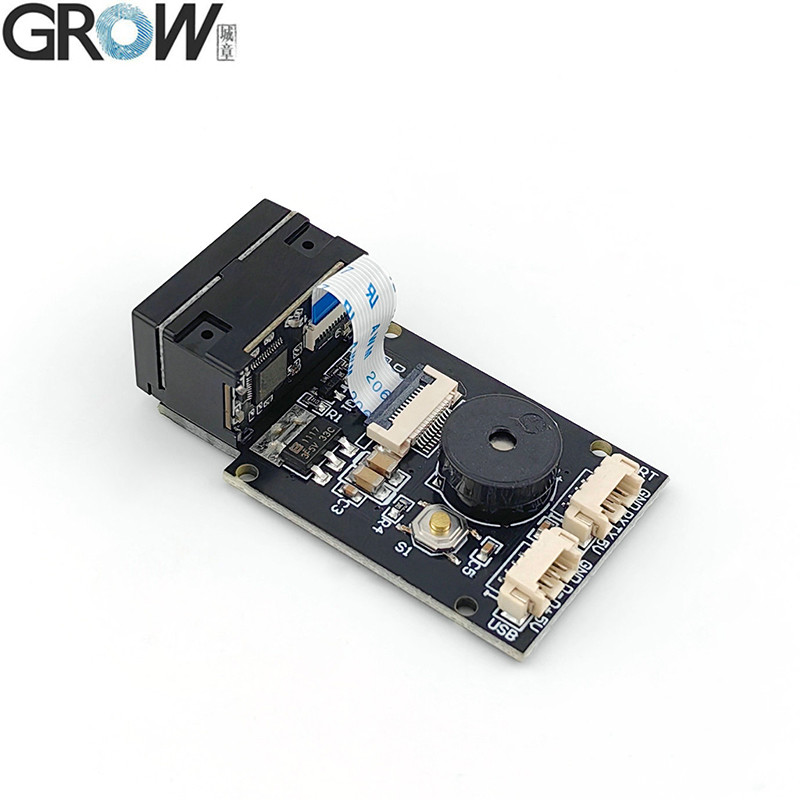

GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 3GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 4

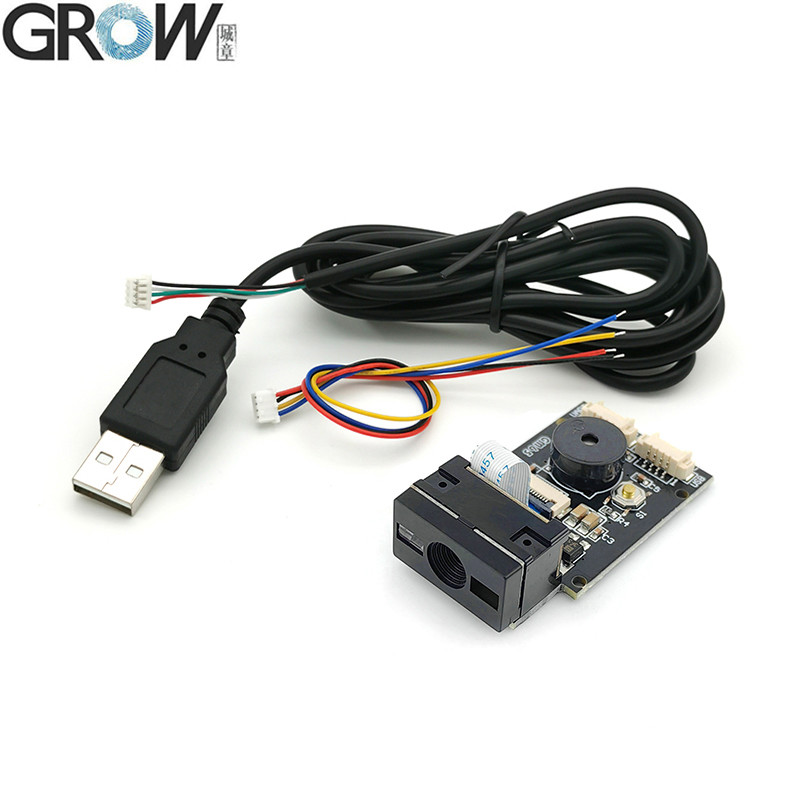

GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 5

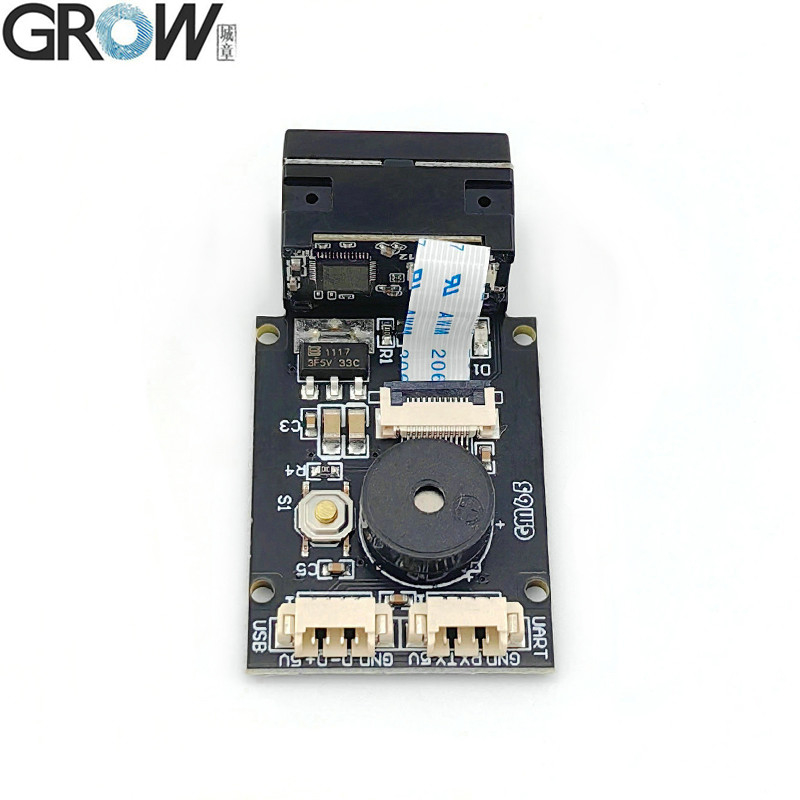

GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 6
GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 7GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 8


GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 9
GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 10

GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 11
GROW GM65 1D 2D Code Scanner Bar Code Reader QR Code Reader Module 12
