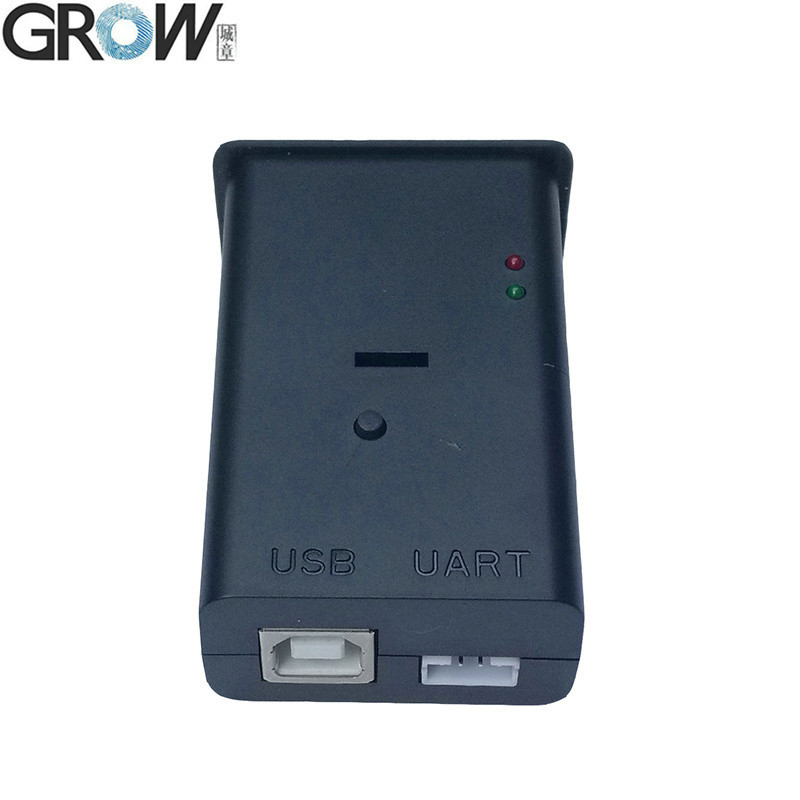

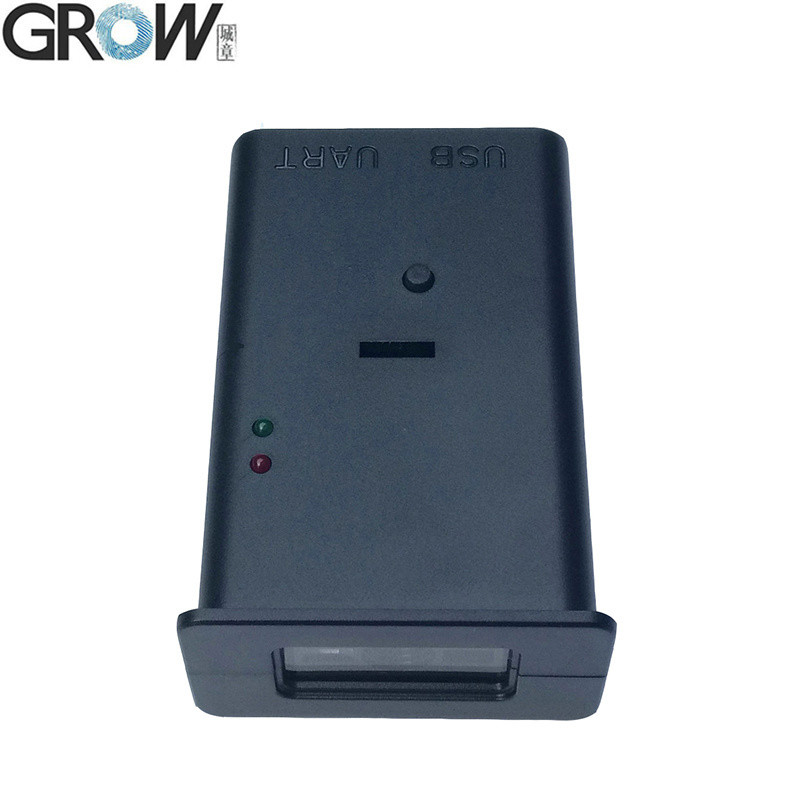

GROW GM66 1D 2D Code Scanner Bar Code Reader QR Code Reader Module With USB UART Interface Black Enclosure For Easy Installtion

GROW GM66 1D 2D Code Scanner Bar Code Reader QR Code Reader Module With USB UART Interface Black Enclosure For Easy Installtion
GROW GM66 1D 2D Code Scanner Bar Code Reader QR Code Reader Module With USB UART Interface Black Enclosure For Easy Installtion
GROW GM66 1D 2D Code Scanner Bar Code Reader QR Code Reader Module With USB UART Interface Black Enclosure For Easy Installtion GROW GM66 1D 2D Code Scanner Bar Code Reader QR Code Reader Module With USB UART Interface Black Enclosure For Easy Installtion GROW GM66 1D 2D Code Scanner Bar Code Reader QR Code Reader Module With USB UART Interface Black Enclosure For Easy Installtion GROW GM66 1D 2D Code Scanner Bar Code Reader QR Code Reader Module With USB UART Interface Black Enclosure For Easy Installtion GROW GM66 1D 2D Code Scanner Bar Code Reader QR Code Reader Module With USB UART Interface Black Enclosure For Easy Installtion GROW GM66 1D 2D Code Scanner Bar Code Reader QR Code Reader Module With USB UART Interface Black Enclosure For Easy Installtion
Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms: T/T,PayPal
Supply Ability: 5000
Get Best Price Contact Now
Detail Information
Model NO.: GM66 Operating Current: 120mA
Reading Distance: 25 - 250mm Interface: USB/Uart
Resolution: 0.10mm (4mil) Transport Package: Standard Export Carton Package

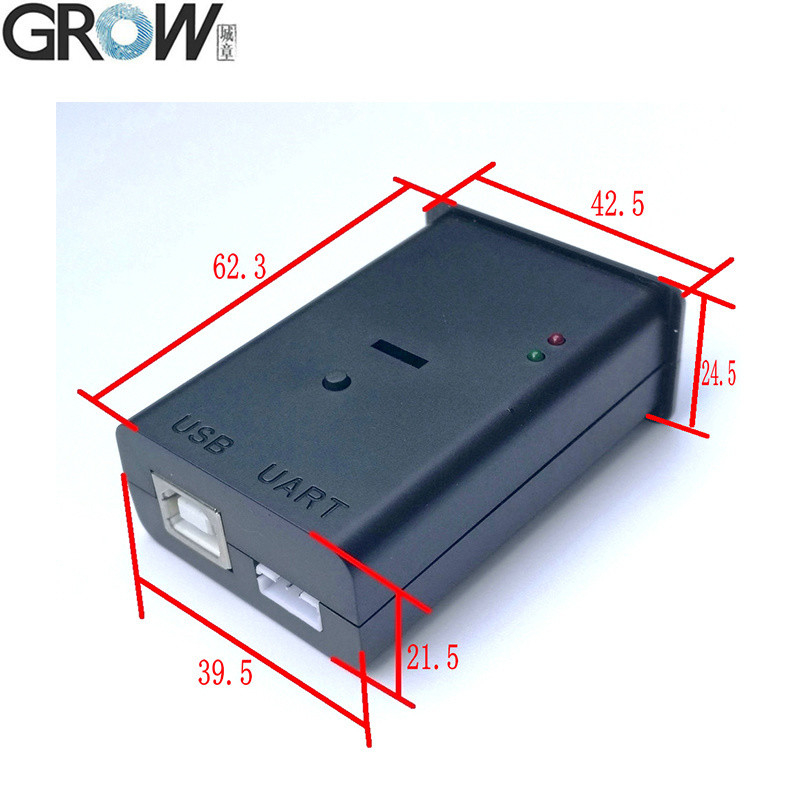

Specification: 62.3*42.5*24.5mm Trademark: GROW
Origin: China HS Code: 8473309000
Supply Ability: 5000 Package Size: 13.00cm * 8.00cm * 9.00cm
Package Gross Weight: 0.250kg Interface Type: Uart, USB
Scan Element Type: CMOS Operating Voltage: 5V
Customization: Available | Customized Request Shipping Cost: About Shipping Cost And Estimated Delivery Time.
Payment Method: Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Product Description

GROW GM66 1D 2D Code Scanner Bar Code Reader QR Code Reader Module With USB UART Interface Black Enclosure For Easy Installtion 0
Description

        1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

        2. High-efficiency recognization and high upload speed for improving your working efficiency.

        3. With buzzer for reminding you that the scanning successfully or not.

        4. Compatible with USB and UART interface.

        5. Over 180 configurable options

        6. Macro support replace a string in the bar code with another

        7. Programmable preamble postamble and termination strings

        8.Superior reading performance utilizing advanced decoding algorithms



Specifications

·Decoding  Ability:

   1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect.

   2D: PDF417,QR Code ,Data Matrix  ect.

·Resolution: 0.10mm (4mil)
·Reading Distance :25 - 250mm

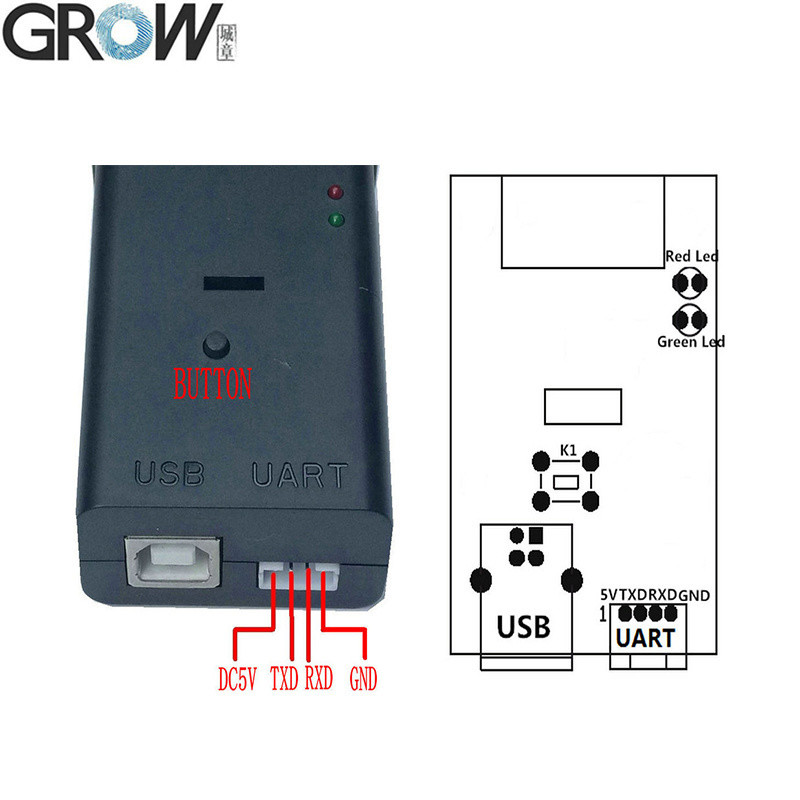

·Interfaces: USB2.0 UART
·Operating Voltage :5V
·Operating Current :120mA


·Type of Illuminant: 617nm LED(Aimer), 6500K LEDs(Illumination)

·Scan Angle: Roll:0-360°, Pitch:±65°or greater, Yaw:±60°or greater

·Scanning angle Inclination angle: 34°, Elevation angle 26°    Print Contrast 30% minimum reflective difference

·LED Indicator:Buzzer and bi-color light: Red-power, Blue-decoding Successfully

·Operating Temperature:-20 degrees to 55 degrees

·Storage Temperature:-40 degrees to 65 degrees

·Temperature Humidity:5% to 95% Relative humidity, Non-condensing

·Light Levels:0-85000LUX


Files
·Provide User Manual
