GROW R105 DC5V USB Biometric Desktop Big Size Capacitive USB Fingerprint Reader With Free SDK 1000 Capacity Support Android

Basic Information

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T,PayPal
Supply Ability:	5000

Get Best Price Contact Now

Detail Information

Model NO.:	R105	Screen:	As Picture
Communication Interface:	USB	Fingerprint Capacity:	1000
Resolution:	508 Dpi	Voltage:	DC 5V
Dimension:	835513 Mm	Material:	Zinc Alloy Pedestal
Thickness:	1.3cm	Sensing Array:	256*360 Pixel
Working Current:	50mA	Transport Package:	Standard Export Carton Package
Specification:	835513 Mm	Trademark:	GROW
Origin:	China	HS Code:	8471609000
Supply Ability:	5000	Package Size:	13.00cm * 8.00cm * 9.00cm
Package Gross Weight:	0.250kg	Voice Service:	Without Voice Service
Clock:	Without Clock	Color:	Black
Samples:	US$ 37/Piece 1 Piece(Min.Order) \|	Customization:	Available \| Customized Request
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.	Payment Method:	Initial Payment Full Payment
Currency:	US$	Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:	Android USB Fingerprint Reader , Android external fingerprint sensor , Lightweight USB Fingerprint Reader

Product Description

Description

R105 capacitive fingerprint reader adopts a large-area fingerprint acquisition chip with 256*360 pixel images.

R105 integrates image acquisition chip and fingerprint algorithm chip, and has fingerprint entry, image processing, feature extraction, template generation, template storage, fingerprint comparison (1:1) or fingerprint search (1: N) and other functions.

At present, R105 fingerprint reader provides USB interface, which can constitute fingerprint collection system, online fingerprint analyzer, online fingerprint attendance machine, fingerprint native protection system and fingerprint network login system through matching application software.We provide SDK files for develop.

Material:Zinc alloy pedestal
The thickness is only 1.3 cm.

·High performance fingerprint reader for precise authentication with PC or network security
·Excellent adaption for dry, wet, harsh fingerprint
·USB interface for high speed communication
·Windows98,Me,NT4.0,2000,XP,Vista WIN7,Android support
·Outstanding authentication performance combined with SDK
·Adopts zinc alloy and well protect the fingerprint sensor
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured fingerprint
·Identify Downloaded Feature with Captured fingerprint
·Security Level setting

Specifications

SPECIFICATION
Model	R105
Type	USB Capacitive Fingerprint Reader

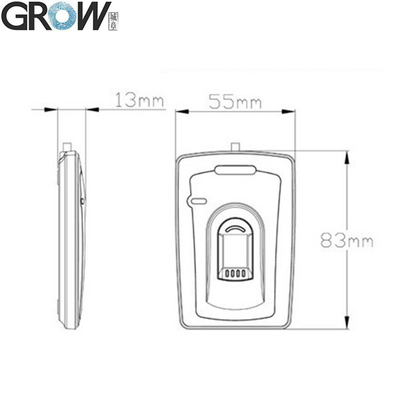

Dimension	835513 mm(LWH)
Fingerprint capacity	1000
Resolution	508 DPI
Voltage	DC 5V
Working current	50mA
Peak current	60mA
Sensing array	256*360 pixel
Power-on Time	< 0.2 second
Average searching time	< 0.15-0.5 second
Matching Method	1:1; 1 :N
FRR	≤0.1%
FAR	≤0.0001%
Antistatic capacity	15KV
Abrasive resistance intensity	1 million times
Work environment	-20°C ---60°C
Work Humidity	10-85%
Storage environment	-30°C ---80°C
Storage Humidity	<85%

Files

·Support Windows98,Me,NT4.0,2000,XP,Vista WIN7,Android
·Provide Free SDK Files

GROW R105 DC5V USB Biometric Desktop Big Size Capacitive USB Fingerprint Reader With Free SDK 1000 Capacity Support Android 2
