GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader

GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader
GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader
GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader
Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms: T/T,PayPal
Supply Ability: 5000
Get Best Price Contact Now
Detail Information
Operating Current: 180mA Interface: USB/Uart
Resolution: 1d>=4mil, 2D>=7.54mil Size: 21.4(W)*16(D)*12(H)mm
Scan Mode: 1280*800 CMOS Transport Package: Standard Export Carton Package
Specification: Black Trademark: GROW
Origin: China HS Code: 8473309000
Supply Ability: 5000 Interface Type: Uart, USB
Scan Element Type: CMOS Operating Voltage: 3.3V
Samples: US$ 43/Piece 1 Piece(Min.Order) | Customization: Available | Customized Request
Shipping Cost: About Shipping Cost And Estimated Delivery Time. Payment Method: Initial Payment Full Payment
Currency: US$ Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Product Description

GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader 0
Description

        1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

        2. High-efficiency recognization and high upload speed for improving your working efficiency.

        3. With buzzer for reminding you that the scanning successfully or not.

        4. Compatible with USB and UART interface.

        5. Over 180 configurable options

        6. Macro support replace a string in the bar code with another

        7. Programmable preamble postamble and termination strings

        8.Superior reading performance utilizing advanced decoding algorithms



Specifications








Scanning Performance		 Scan Mode 1280*800 CMOS
Lighting White LED
Collimate Red LED

Read Code
Type		     2D QR Code, Data Matrix, PDF417,Aztec,Micro QR,
Micro PDF417,Maxicode,Hanxin Code

1D		 EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN,  MSI-Plessey
GS1 Databar ,Code 11,Industrial 25,GS1 Composite
Standard 25,Plessey, Matrix 2 of 5
Accuracy of reading 1D≥4mil , 2D≥7.54mil

Depth of Field		 EAN-13 35mm-220mm  (13mil  13byte)


Code 39 30mm-135mm  (5mil  4 byte)
QR Code 45mm-460mm  (20mil  16 byte)
Data Marix 25mm-180mm  (10mil  20 byte)
PDF417 30mm-160mm  (6.67mil  7 byte)
Contrast ≥25%
Scanning angle Intersection angle 360°,Elevation ± 55°
Deflection angle ±  55°
Viewing Angle H:52° V:38°
Mechanical/
Electrical Parameters		 Interface TTL-232  ,  USB  (HID-KBW, Virtual serial port)

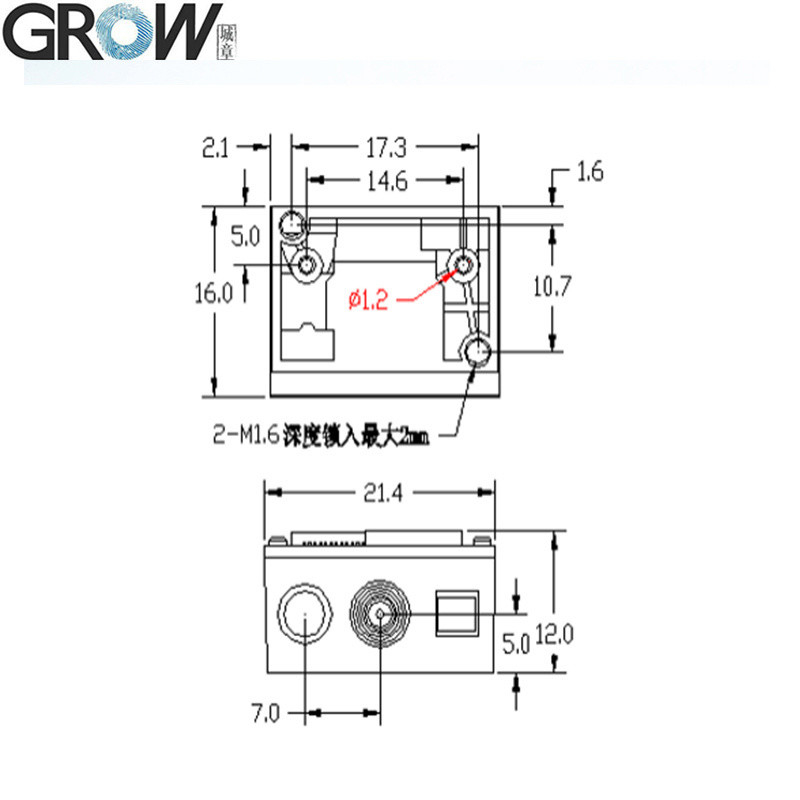

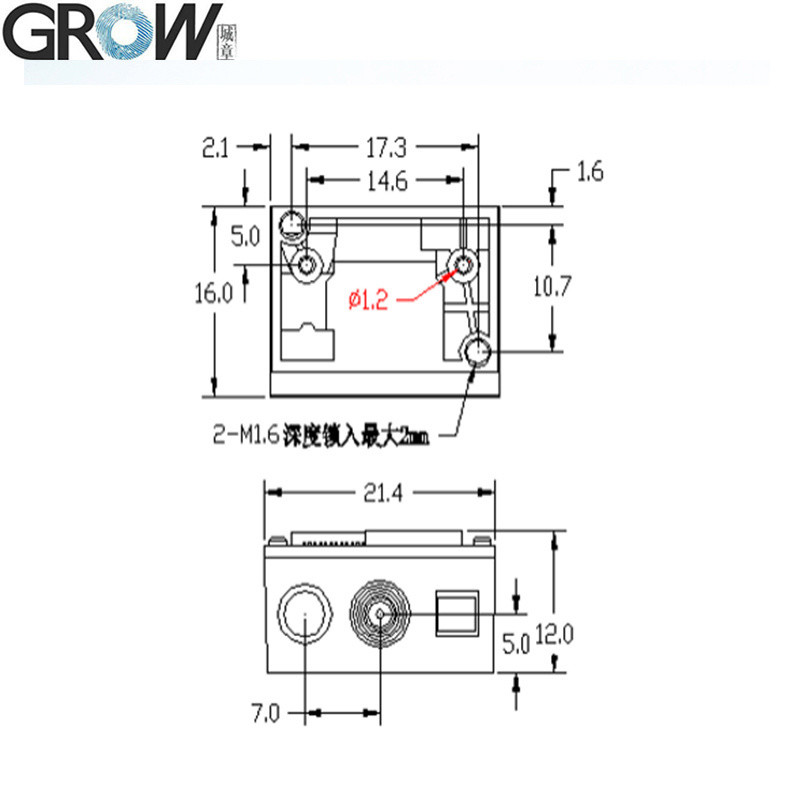

Dimension 21.4(W)*16(D)*12(H)mm
Operating Voltage DC 3.3V
Operating Current 180mA
Environmental Parameters Operating Temperature -20ºC~+50ºC
Storage Temperature -40ºC~+70ºC
Operating Humidity 5%~95%(Non-Condensing)
Environmental Light 0~100000LUX


Files

·Provide User Manual


You can download the GM69-S user manual from this website link:
https://hzgrow.en.made-in-china.com




GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader 1
GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader 2
GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader 3
GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader 4
GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader 5
GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader 6
GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader 7

GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader 8
GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader 9

GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader 10
GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader 11
