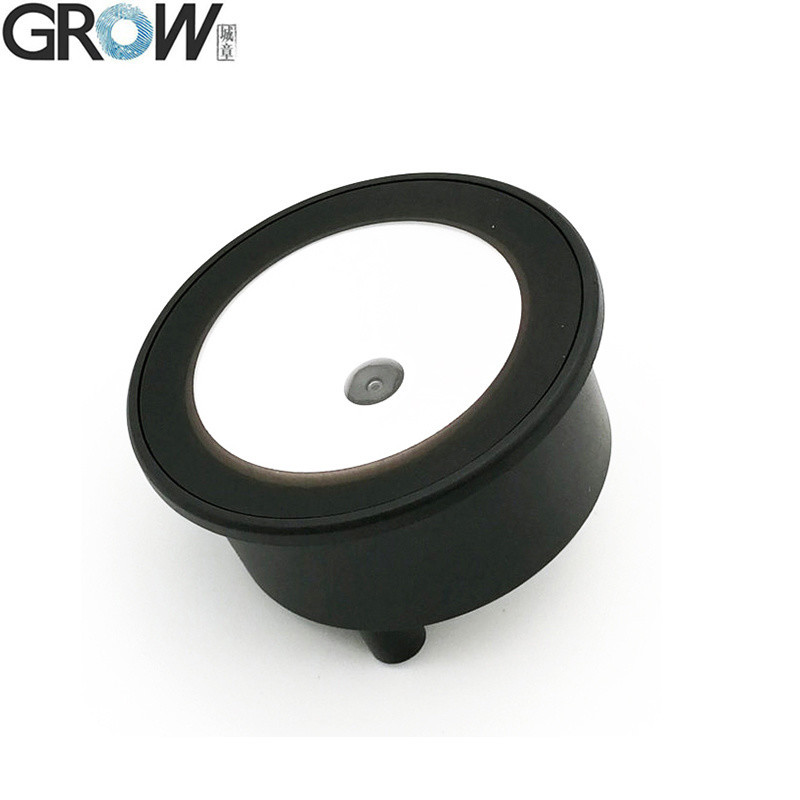

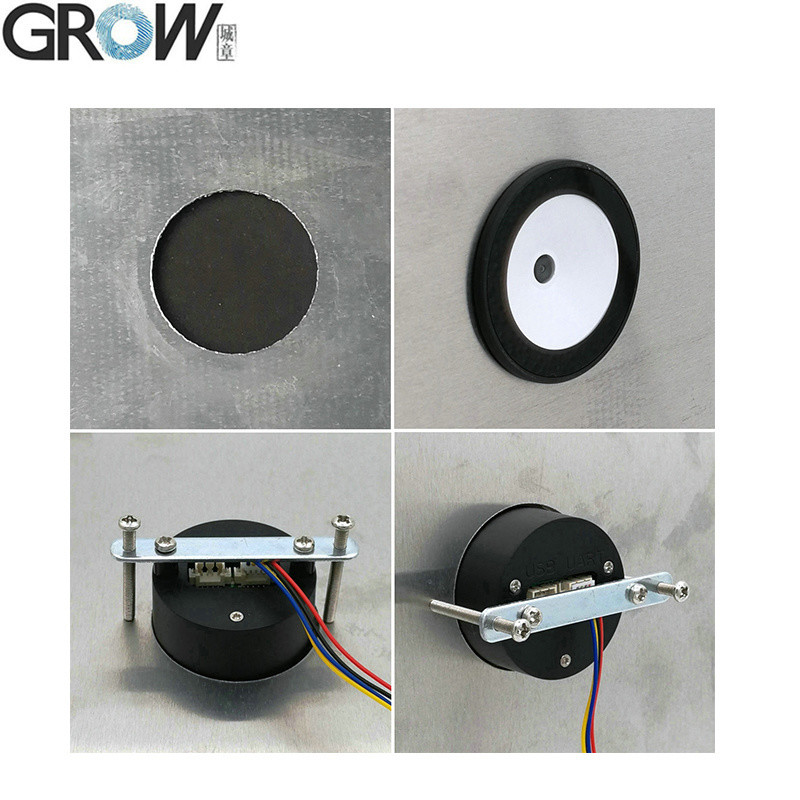

GROW GM73 Small Round Easy Installation USB UART 1D 2D QR Code Barcode Scanner Reader

Description

        1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

        2. High-efficiency recognization and high upload speed for improving your working efficiency.

        3. With buzzer for reminding you that the scanning successfully or not.

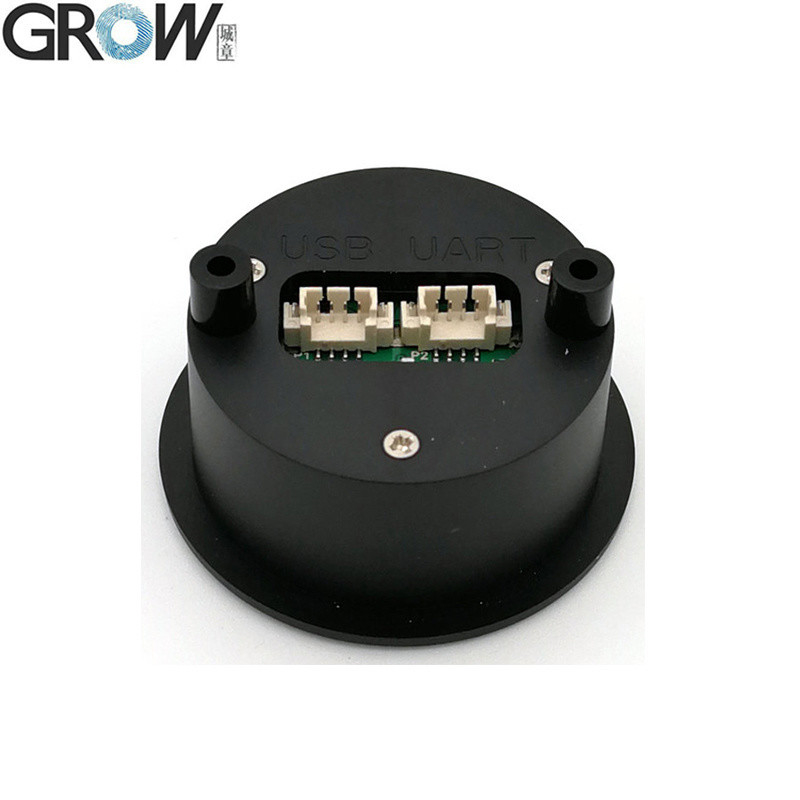

        4. Compatible with USB and UART interface.

        5. Over 180 configurable options

        6. Macro support replace a string in the bar code with another

        7. Programmable preamble postamble and termination strings

        8.Superior reading performance utilizing advanced decoding algorithms



Specifications

·Decoding  Ability:

   Codebar/ Code 11/ Code 39/Code 93/ UPC/EAN/Code 128/EAN128/ Interleaved 2 of 5/Matrix 2 of 5/ MSI Code/MSI Code/Industrial 2 of 5/ GS1 Databar/ QR code/Data Matrix/PDF417

Electrical Parameters:
·Interface: TTL-232/USB
·Voltage: DC+5V±5%
·Operating Current: <170mA
·Light: White light / Blue light
·Readable code: Codebar/ Code 11/ Code 39/Code 93/ UPC/EAN/Code 128/EAN128/ Interleaved 2 of 5/Matrix 2 of 5/ MSI Code/MSI Code/Industrial 2 of 5/ GS1 Databar/ QR code/Data Matrix/PDF417
·Reading Distance: 40-100mm
·Scan Angle: Roll: 360°, Yaw: 40°, Pitch: 45°
·Resolution: 640(Inclination)x 480(Elevation)
·Scanning angle: 57°(Inclination), 57°(Elevation)
·Weight: About 15g
·Operating Temperature: -20°C - 60°C
·Relative Humidity: 5%- 95% (Non-Condensing)


Files

·Provide User Manual
