GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System

GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System
GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System
GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System
Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms: T/T,PayPal
Supply Ability: 5000
Get Best Price Contact Now
Detail Information
Model NO.: KR501 Screen: As Picture
Communication Interface: RS232 Fingerprint Capacity: 20
Power Supply: DC 3.7-10V Output: 1 Second, 3.3V-500mA
Stand-by Current For Control Board: 2.5-7ua,Typical Value: 3ua Working Current: 40-250mA,Typical Value: 45mA
Size: Diameter 36mm Transport Package: Standard Export Carton Package
Specification: Power Supply: DC 3.7-10V Trademark: GROW
Origin: China HS Code: 8471609000
Supply Ability: 5000 Package Size: 13.00cm * 8.00cm * 9.00cm
Package Gross Weight: 0.100kg Voice Service: Without Voice Service
Clock: Without Clock Color: As Picture
Samples: US$ 6.5/Piece 1 Piece(Min.Order) | Customization: Available | Customized Request
Shipping Cost: About Shipping Cost And Estimated Delivery Time. Payment Method: Initial Payment Full Payment
Currency: US$ Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

3.3V Fingerprint Control Board

,

3.3V fingerprint scanner module

,

High Level Output Fingerprint Control Board

Product Description

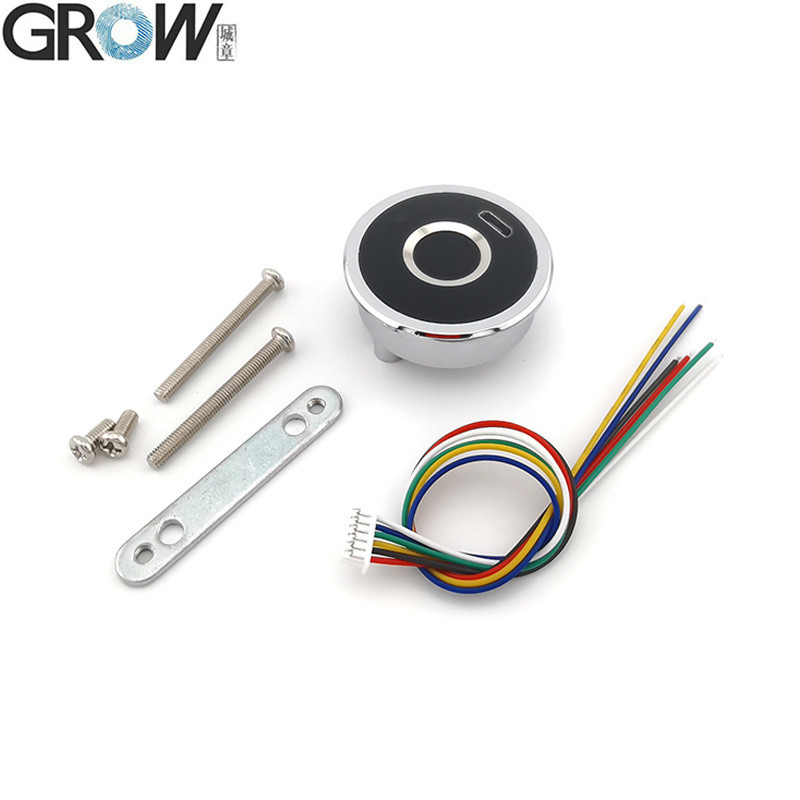

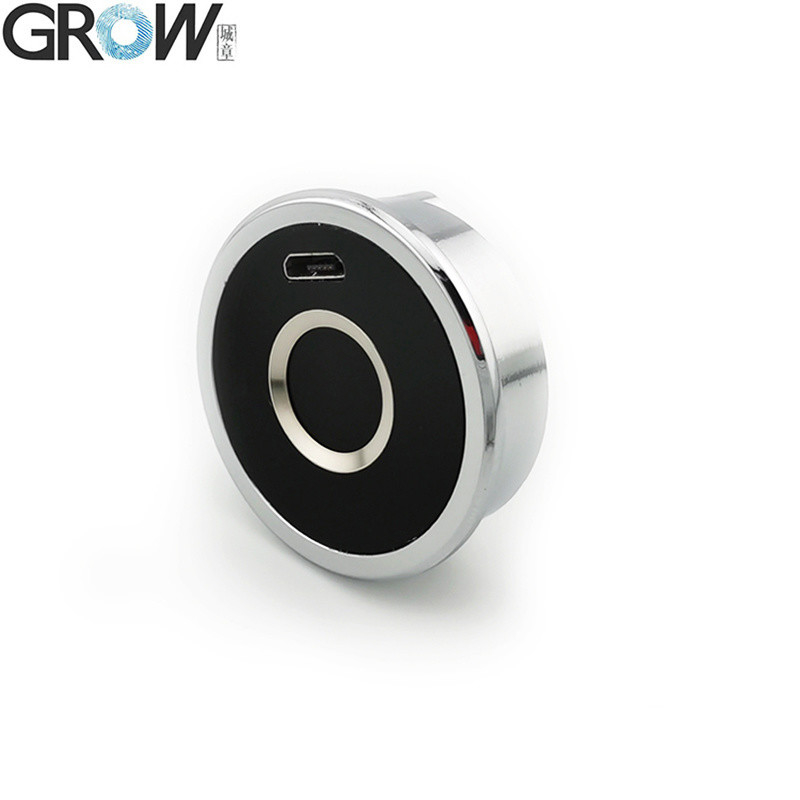

GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System 0

Technical Parameters

DC3.7-10V, High Level output, Output:1 second, 3.3V-500mA

·Fingerprint Capacity: 20
·Working Voltage: DC 3.7-10V
·Standby Current (excluding external equipment): 2.5-7uA typical value: 3uA
·Working Current (excluding external equipment): 40-250mA typical value: 45mA
·Output: 1second, 3.3V-500mA
·Low voltage alarm: ≤4.8V

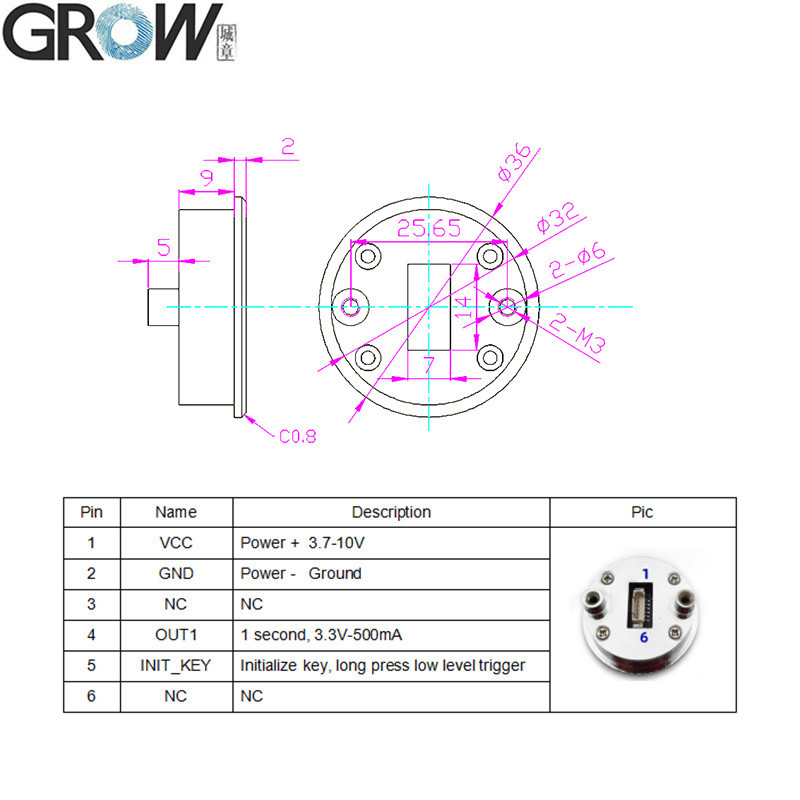

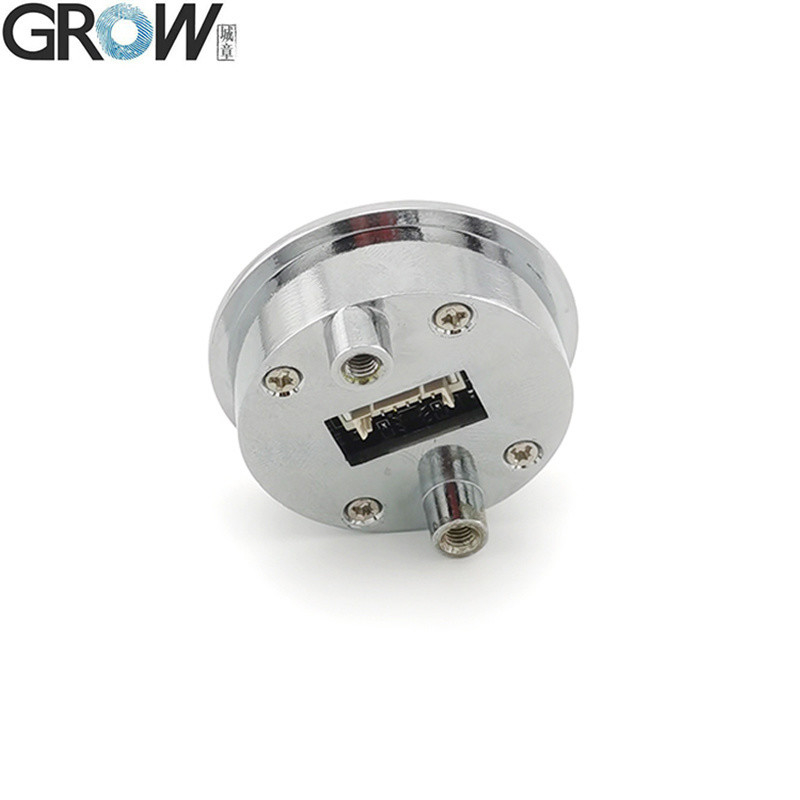

Pin Definition:
Pin Name Description
1 VCC Power + 3.7-10V
2 GND Power - Ground
3 NC NC
4 OUT1 1 second, 3.3V-500mA
5 INIT_KEY Initialize key,long press low level trigger
6 NC NC


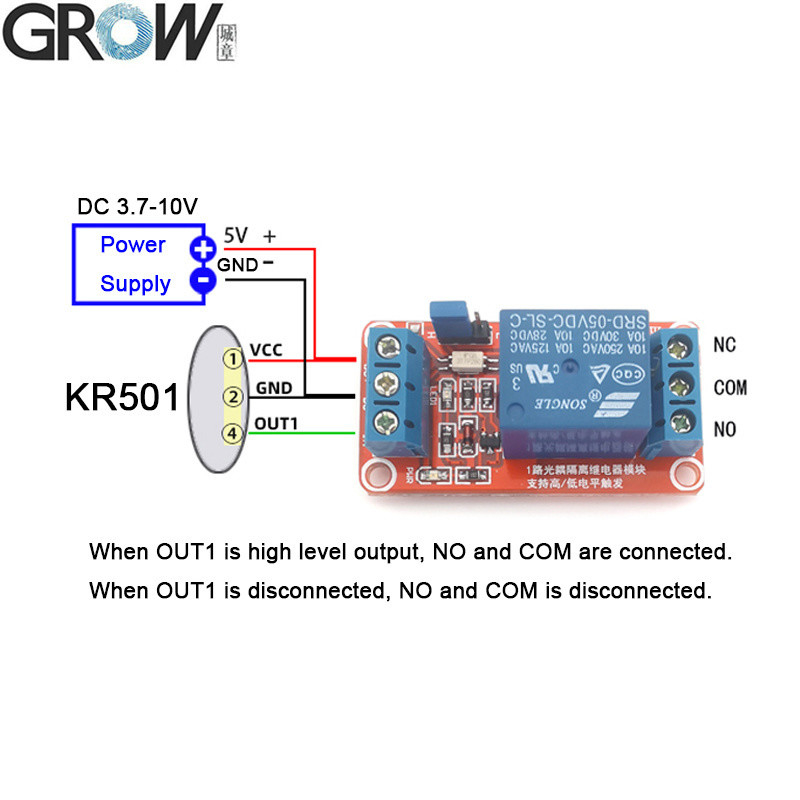

Operation Instruction

After the fingerprint is passed, the OUT1 pin outputs a signal with a voltage of 3.3V and a current of 500ma for 1 second. In the initialization state, any fingerprint can pass through.

1. Register Fingerprint: Long press the registered fingerprint(In initial state press any fingerprint), until the blue indicator light turn on and hearing music, means the system in register state, press the finger with multiple times in fingerprint collection area,each press have "di" sound, until hearing music means fingerprint register successful. Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.
Note: In the initialization state,must have to register more than 2 correct fingerprints for the first time,then the system can be removed from the initialization state.

2. Delete Fingerprint(Back to initialization state):
2.1 Long press the registered fingerprint, until the red indicator light turn on,means all fingerprints are deleted and back to initialization state.
2.2 Use INIT_KEY pin. In the standby state, make the INIT_KEY pin ground connection, until the red indicator to turn on, hear the "Di-" sound, disconnect the grounding, the indicator turns green, means all fingerprints are deleted and back to initialization state.




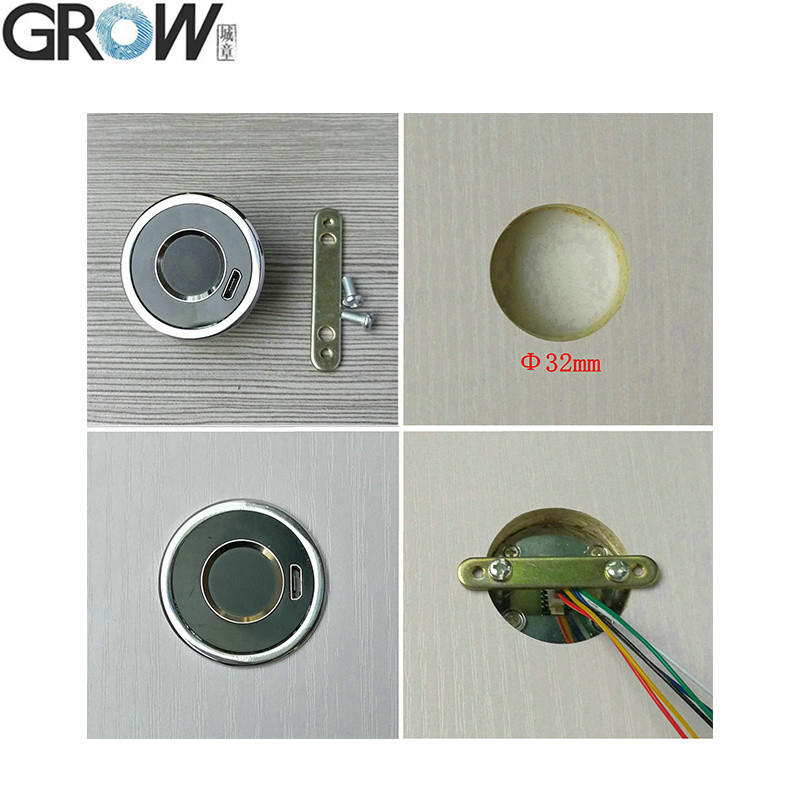

GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System 1
GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System 2GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System 3GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System 4GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System 5GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System 6GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System 7

GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System 8GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System 9GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System 10
GROW KR501 High Level Output DC3.3-10V Fingerprint Control Board With Fingerprint Module For Access Control System 11
