| Place of Origin: | China |
|---|---|
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton |
| Delivery Time: | Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 5000 |

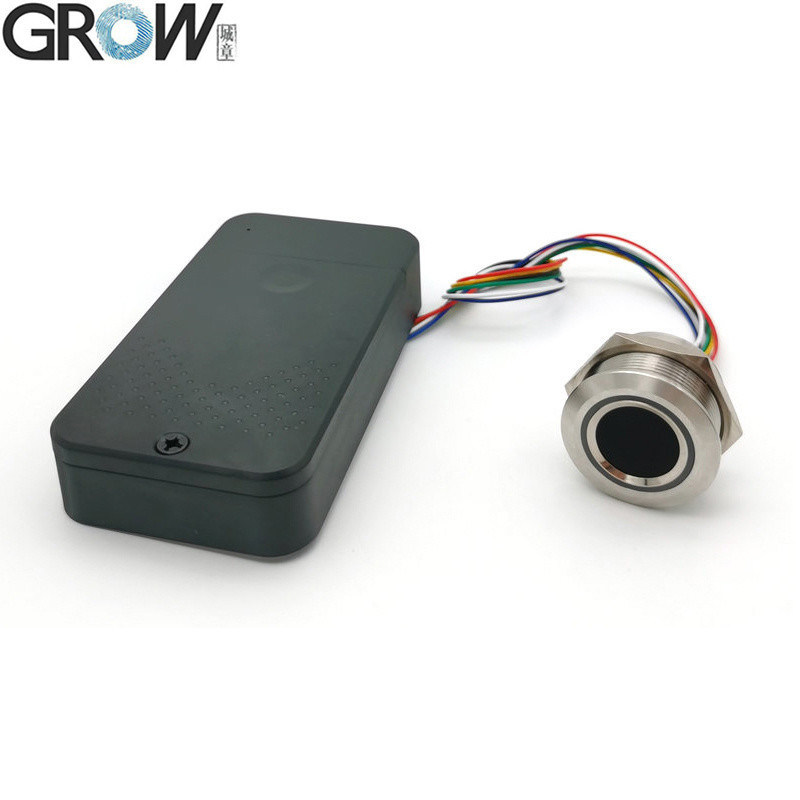

| Model NO.: | K236-A+R503 | Screen: | As Picture |
|---|---|---|---|
| Communication Interface: | RS232, USB | Fingerprint Capacity: | 80 |
| Power Supply: | DC 6V (4*AAA Battery) | Standby Current: | <7ua |
| Output: | DC5-6V, 300mA | K236-a Size: | 87*47.1*16.5mm |
| R503 Size: | Diameter 28mm | Transport Package: | Standard Export Carton Package |
| Specification: | DC 6V (4*AAA Battery) | Trademark: | GROW |
| Origin: | China | HS Code: | 8471609000 |
| Supply Ability: | 5000 | Voice Service: | Without Voice Service |
| Clock: | Without Clock | Color: | As Picture |
| Samples: | US$ 23.4/Piece 1 Piece(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost: | About Shipping Cost And Estimated Delivery Time. | Payment Method: | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
|
Model
|
R503
|
|
Type
|
Capacitive Fingerprint Module
|
|
Interface
|
UART(TTL)
|
|
Resolution
|
508 DPI
|
|
Voltage
|
DC 3.3V
|
|
Fingerprint Capacity
|
200
|
|
Sensing array
|
192*192 pixel
|
|
Working current
|
20mA
|
|
Standby current
|
Typical touch standby voltage: 3.3V, Average current: 2uA
|
|
Fingerprint module external size
|
Diameter 28 (mm)
|
|
Fingerprint module inner size
|
Diameter 23.5 (mm)
|
|
Fingerprint module height
|
19 (mm)
|
|
Effective collection area
|
Diameter 15.5 (mm)
|
|
Connector
|
MX1.0-6Pin
|
|
LED Control
|
YES
|
|
LED Color
|
Blue and Red
|
|
Scanning Speed
|
< 0.2 second
|
|
Verification Speed
|
< 0.3 second
|
|
Matching Method
|
1:1; 1:N
|
|
FRR
|
≤1%
|
|
FAR
|
≤0.001%
|
|
Work environment
|
-20C ---60C
|
|
Work Humidity
|
10-85%
|
|
Anti-static capacity
|
15KV
|
|
Abrasive resistance intensity
|
1 million times
|
|
Communications baud rate (UART):
|
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)
|
