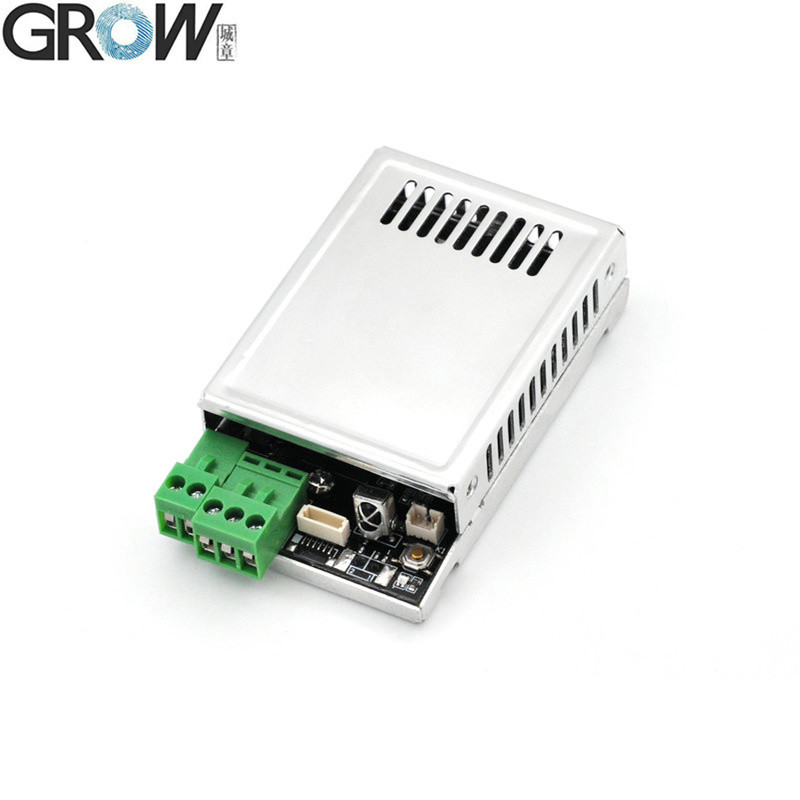

Technical Parameters
DC10-30V, Relay Output, Jog Mode(0.5s-99s)/Ignition Mode/Self-locking Mode.
Managed by SET button or remote control(add/delete fingerprint to different three database,change relay time and so on)
·Output:Relay(Max. current: 10A)
·Fingerprint capacity:200 pieces
·Relay Function:Jog Mode(0.5s-99s)/Ignition Mode/Self-locking Mode
Operation Instruction

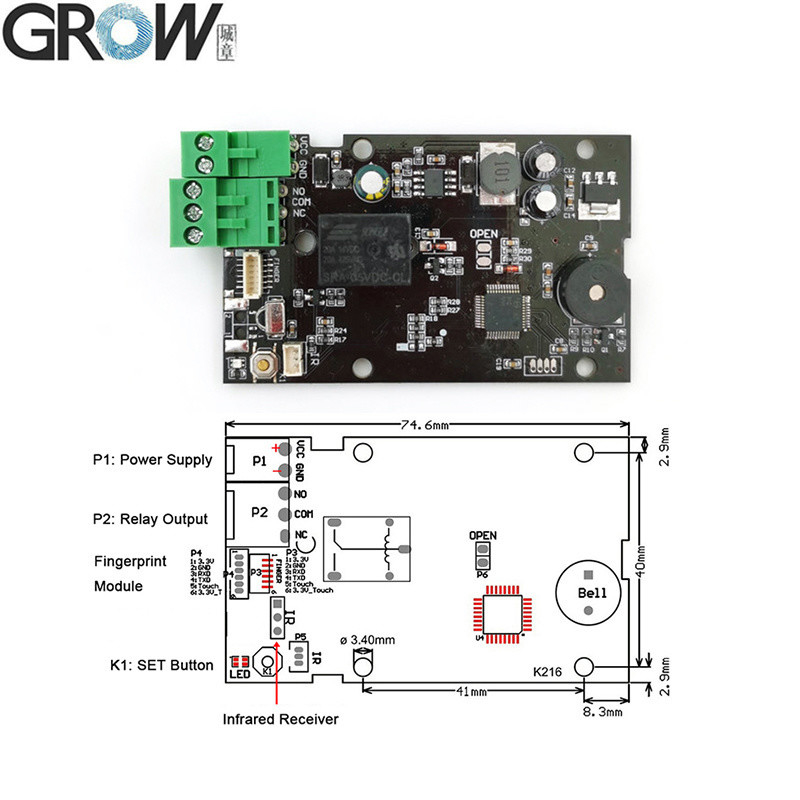

1. SET Button:
1.1 Press SET button shortly,system in register state and indicator light flash fast, press multiple times for each fingerprint, fingerprint register successful when hearing music.
Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.(By default, it will be saved in fingerprint database 1,when the current database is full, it is automatically saved to the next database.)
1.2 When back to factory default, press SET button until hear "Di" long beep and
music,means initialization operation successful

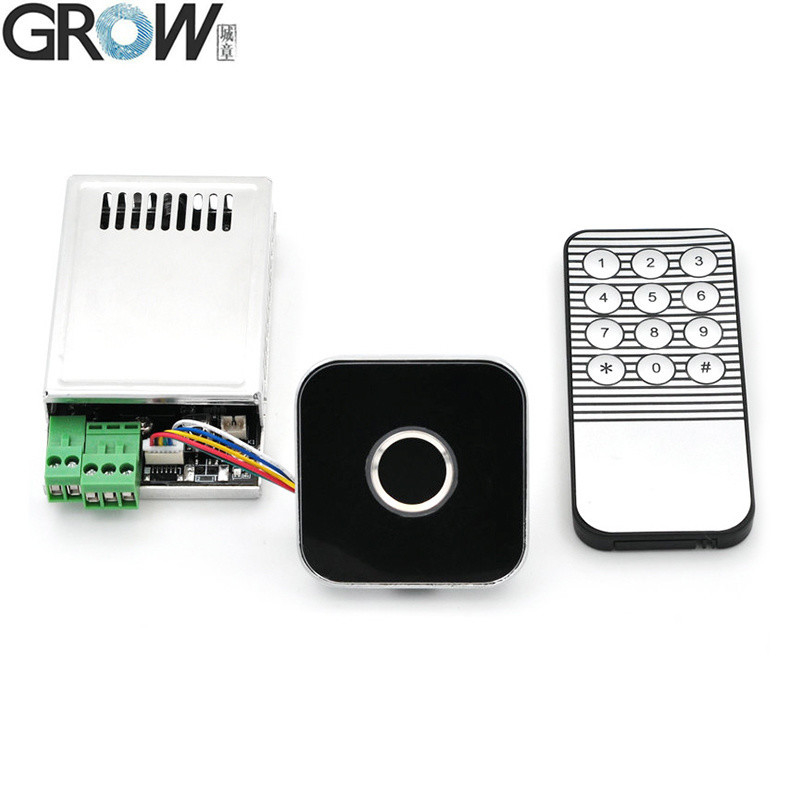

2. Remote Control:
When using remote control, pls touch the module to wake up first.
2.1 Blue indicator lighted means in programming stated, music means operation successful
Default password: 123456, password length: 6 numbers
2.2 Change password: Press *password*1*new password*new password#
2.3 Register fingerprint: Press *password*2*Database(1-5)# ,Exit fingerprint in register state when press * button or waiting a few seconds.
E.g.: Register in Database 3: Press *password*2*3#
2.4. Delete Fingerprint: Press *password*3*Database(1-5)#
E.g.: Delete in Database 3: Press *password*3*3#
2.5. Relay Time Setting in jog mode: Press *password*4*Time(0.5s-99s)#
E.g.: Set 0.5s: Press *password*4*00#
E.g.: Set 1s: Press *password*4*01#
E.g.: Set 5s: Press *password*4*05#
E.g.: Set 99s: Press *password*4*99#
2.6. Setting Work Mode:
Jog Mode: Press *password*5*1#
Ignition Mode: Press *password*5*2#
Self-locking Mode:Press *password*5*3#
2.7. Standby Mode Selection:
Standby Mode On: Press *password*6*0#
Standby Mode Off: Press *password*6*1#
2.8. Back to Factory Mode: Press *password*7*password#
2.9. Password Using: Press *password and relay closed, press # and relay opened
Note: Any fingerprint can be used in the factory state, but the function will be invalid after the fingerprint is registered.
R502-AW Specifications
| Model |
R502-AW |
| Type |
Capacitive Fingerprint Module |
| Interface |
UART(TTL) |
| Resolution |
508 DPI |
| Voltage |
DC 3.3V |
| Fingerprint Capacity |
200 |
| Sensing array |
192*192 pixel |
| Working current |
20mA |
| Standby current |
Typical touch standby voltage: 3.3V, Average current: 2uA |

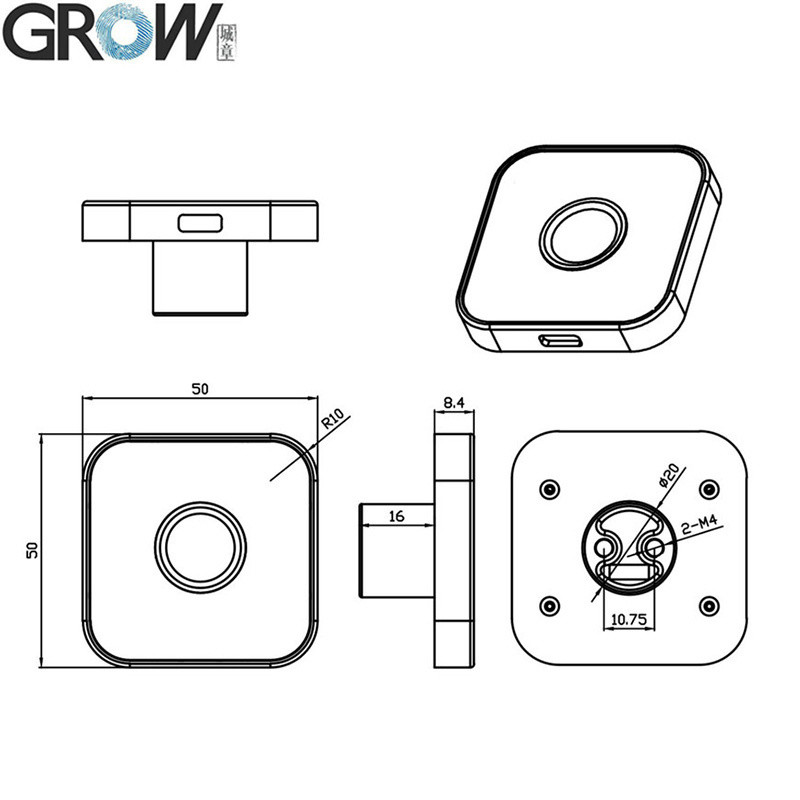

| Fingerprint module external size |
50*50*8.4 (mm) |
| Effective collection area |
Diameter 15.5 (mm) |
| Enclosure material |
Zinc alloy |
| Connect control board |
K200-3.3/K202/K215-V1.2/K216 |

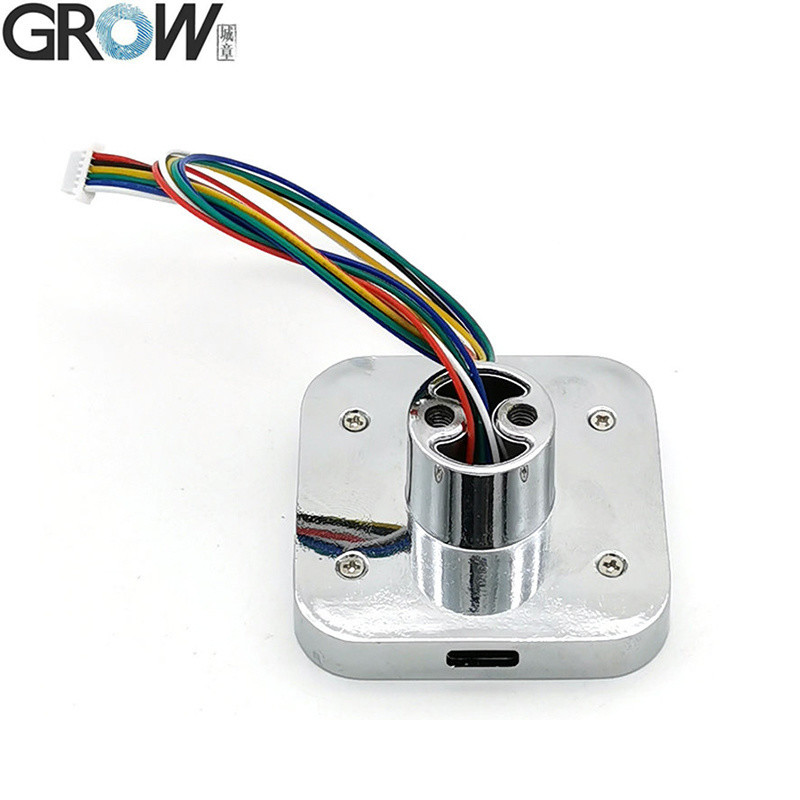

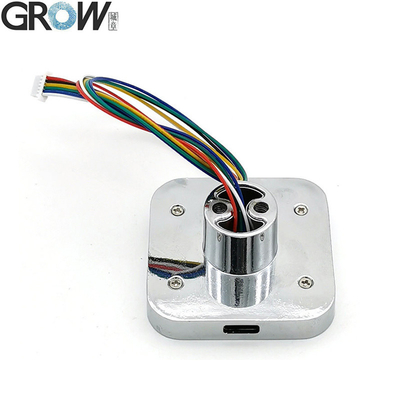

| Connector |
MX1.0-6Pin |

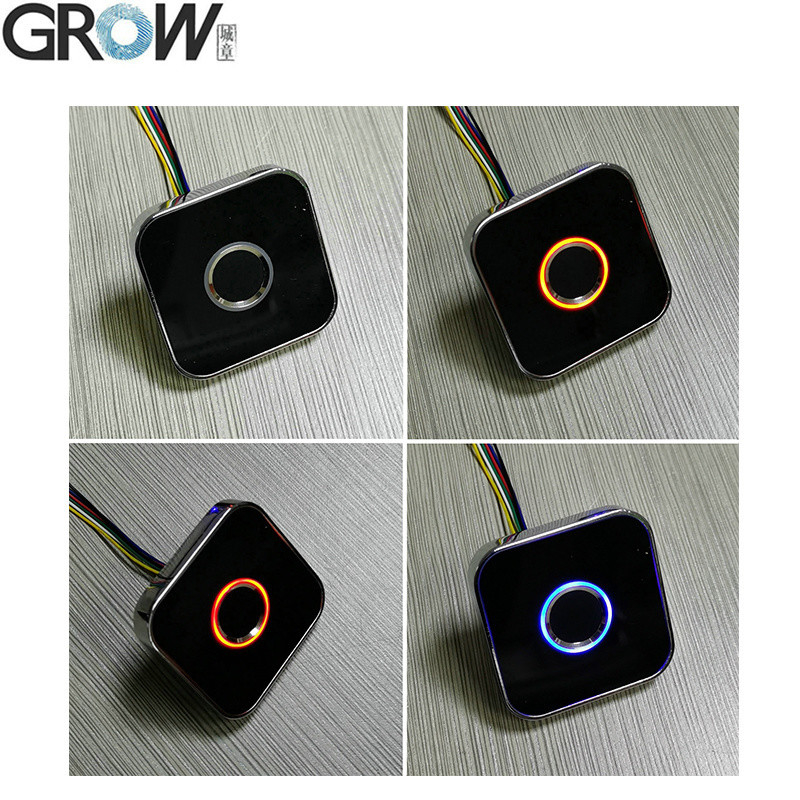

| LED Control |
YES |
| LED Color |
Purple and Blue and Red |
| Scanning Speed |
< 0.2 second |
| Verification Speed |
< 0.3 second |
| Matching Method |
1:1; 1:N |
| FRR |
≤1% |
| FAR |
≤0.001% |
| Work environment |
-20C ---60C |
| Work Humidity |
10-85% |
| Anti-static capacity |
15KV |
| Abrasive resistance intensity |
1 million times |
| Communications baud rate (UART): |
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
Files
·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual
R502-AW Test program operation display video on Youtube:
https://youtu.be/Q82Zg4iFHOA
