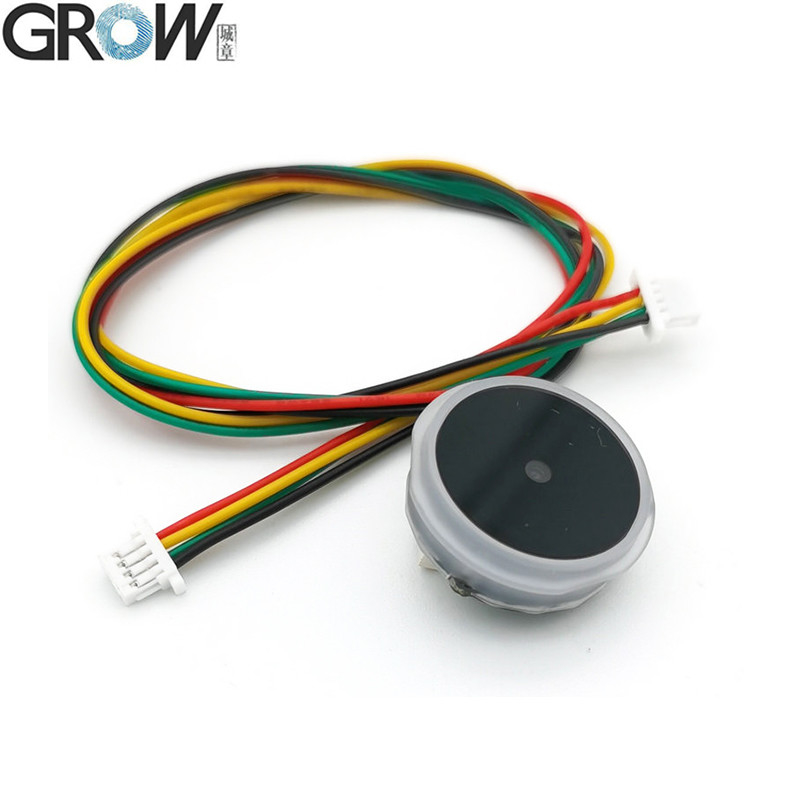

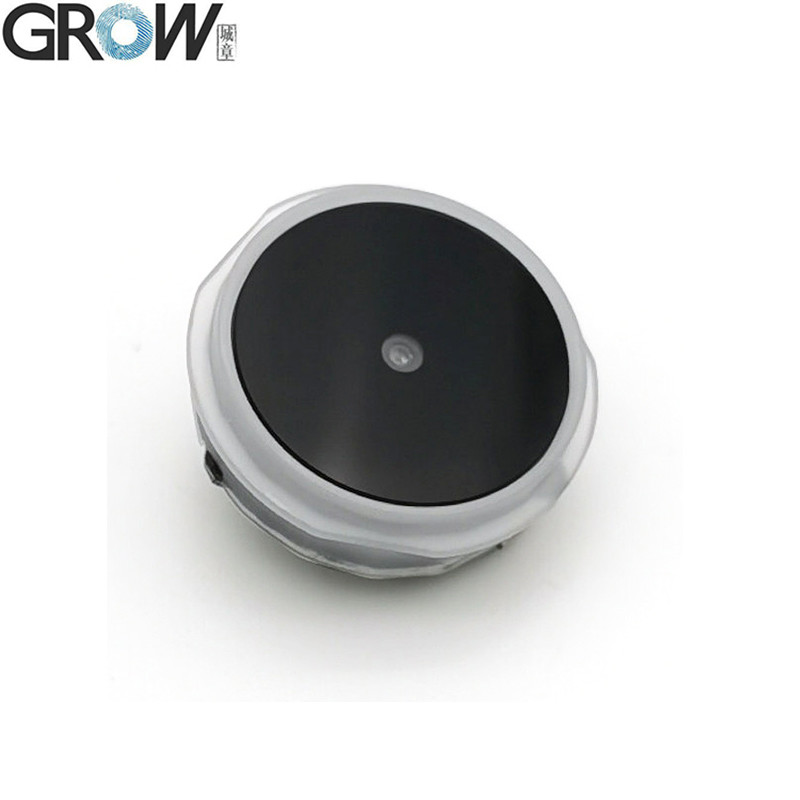

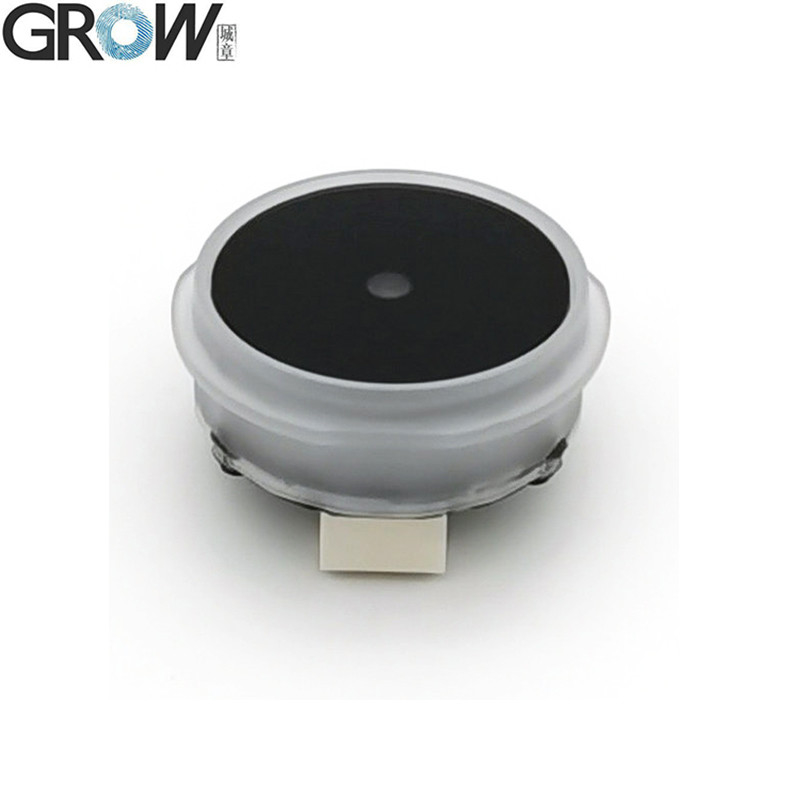

GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module

Basic Information

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T,PayPal
Supply Ability:	5000

Get Best Price Contact Now

Detail Information

Operating Current:	70mA	Scan Mode:	640*480
Interface:	Uart	Resolution:	5mil
Weight:	2g	Serial Baud Rate(Uart):	57600
Transport Package:	Standard Export Carton Package	Specification:	Diameter 21 (mm)
Trademark:	GROW	Origin:	China
HS Code:	8473309000	Supply Ability:	5000
Interface Type:	RS232	Scan Element Type:	CMOS
Operating Voltage:	3.3V	Samples:	US$ 14.6/Piece 1 Piece(Min.Order) \|
Customization:	Available \| Customized Request	Shipping Cost:	About Shipping Cost And Estimated Delivery Time.
Payment Method:	Initial Payment Full Payment	Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:	Small barcode reader module , Round barcode module , Round 1d barcode scanner module

Product Description

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Specifications

SPECIFICATION
Model	GM60-S
Type	Barcode Scanner
Decoding Ability	QR Code, Data Matrix, PDF417,EAN13,UPC,Code 39,Code 93,Code 128,UCC/EAN 128
Scan Mode	640*480
Interface	UART
Resolution	5mil
Serial Baud Rate(UART)	57600
Operating Voltage	3.3V
Operating Current	70mA
Contrast	≥25%
Weight	2g

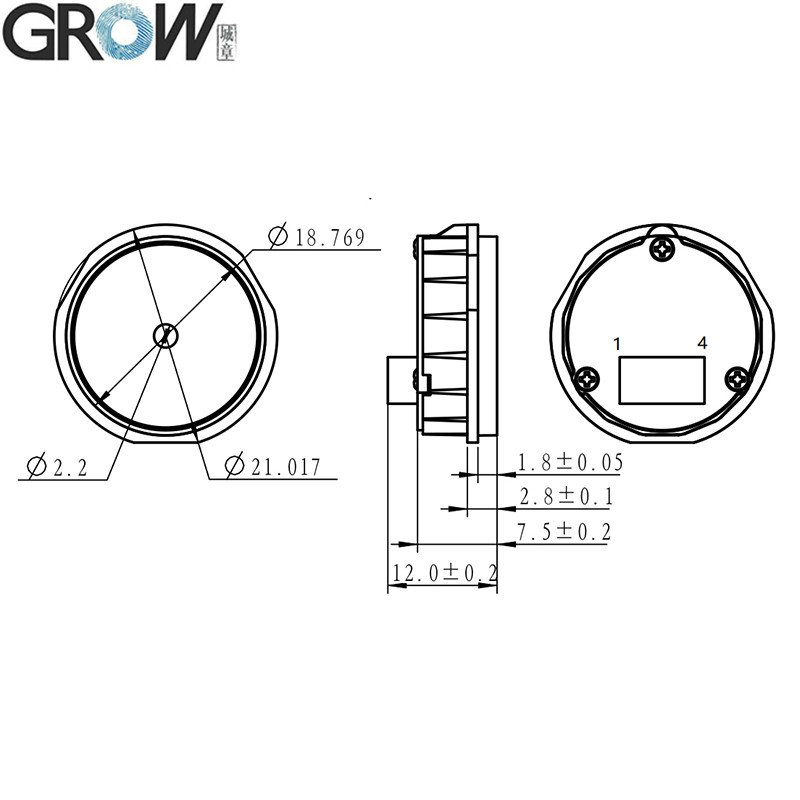

Size	Diameter 21mm Height 12mm
Scan Angle	Roll 360°, Pitch 55°, Yaw 55°
Viewing Angle	69°(Inclination), 56°(Elevation)

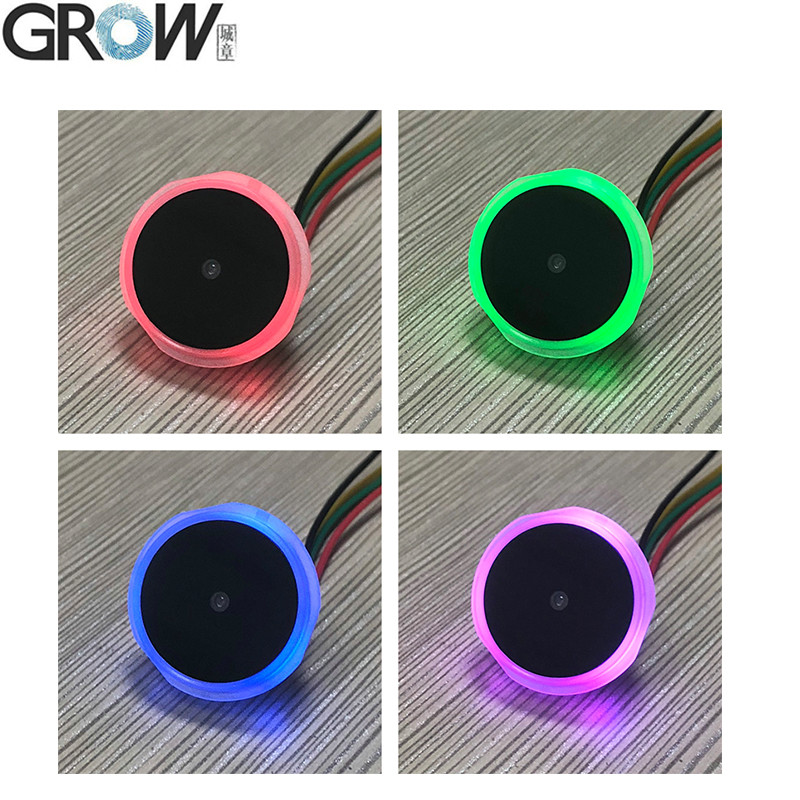

Light	Colorful indicator/green light flashing prompt reading success
Operating Temperature	-30 degrees to 70 degrees
Storage Temperature	-30 degrees to 85 degrees
Temperature Humidity	5% to 95% Relative humidity, Non-condensing

Files

·Provide User Manual
·CE Certificate

Scan Modules: Versatile Tools for Technological Advancements in Data Management and Security

In the realm of advanced technology, scan modules have become indispensable tools, playing a crucial role in various applications ranging from retail management to secure access control systems. One of the most versatile functionalities of these modules is the ability to read QR codes from images. Whether embedded in a smartphone app or a dedicated scanning device, this capability allows for quick and accurate data retrieval, making it ideal for payment systems, product tracking, and event registrations.

Biometric access control systems, on the other hand, leverage scan modules to enhance security by utilizing biometric scanners. These scanners, capable of recognizing unique physiological characteristics such as fingerprints, facial features, or iris patterns, ensure that only authorized individuals can gain access to restricted areas or sensitive information. The integration of biometric scan modules in access control systems has significantly reduced unauthorized entries, thereby boosting overall security.

When it comes to selecting the best bar code scanner, the focus often shifts to its scanning speed, accuracy, and versatility. Modern bar code scan modules are designed to read a wide range of bar code formats, including those commonly used in logistics, inventory management, and point-of-sale systems. These scan modules not only excel in scanning traditional bar codes but also support the reading of QR codes, making them a versatile addition to any automation or management system.

In conclusion, scan modules have evolved to become sophisticated devices that cater to a multitude of needs. From reading QR codes from images for convenient data retrieval to implementing biometric access control for heightened security, and scanning bar codes efficiently, these modules are pivotal in driving technological advancements across various industries. As technology continues to evolve, scan modules will undoubtedly play an even more critical role in shaping the future of automation, security, and data management.
