GROW R502-A RGB LED Control Small Thin Circular DC3.3V SH1.0-6pin Capacitive Fingerprint Module Sensor Scanner

Basic Information

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T,PayPal
Supply Ability:	5000

Get Best Price Contact Now

Detail Information

Model NO.:	R502-A	Screen:	As Picture
Communication Interface:	RS232	Fingerprint Capacity:	200
Voltage:	DC 3.3V	Effective Collection Area:	Diameter 15.5 (mm)
Sensing Array:	190*190 Pixel	Resolution:	508 Dpi
Abrasive Resistance Intensity:	1 Million Times	Antistatic Capacity:	15kv
Fingerprint Module External Diameter:	22mm	Fingerprint Module Inner Diameter:	19.5mm
Fingerprint Module Height:	5mm	Weight:	5g
LED Control:	Yes	Transport Package:	Standard Export Carton Package
Specification:	Diameter 22 (mm)	Trademark:	GROW
Origin:	China	HS Code:	8471609000
Supply Ability:	5000	Voice Service:	Without Voice Service
Clock:	Without Clock	Color:	As Picture
Samples:	US$ 12.2/Piece 1 Piece(Min.Order) \|	Customization:	Available \| Customized Request
Shipping Cost:	About Shipping Cost And Estimated Delivery Time.	Payment Method:	Initial Payment Full Payment
Currency:	US$	Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:	High Efficiency Fingerprint Sensor Module , High Efficiency finger print arduino , Enhanced Security Fingerprint Sensor Module

Product Description

Description

1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

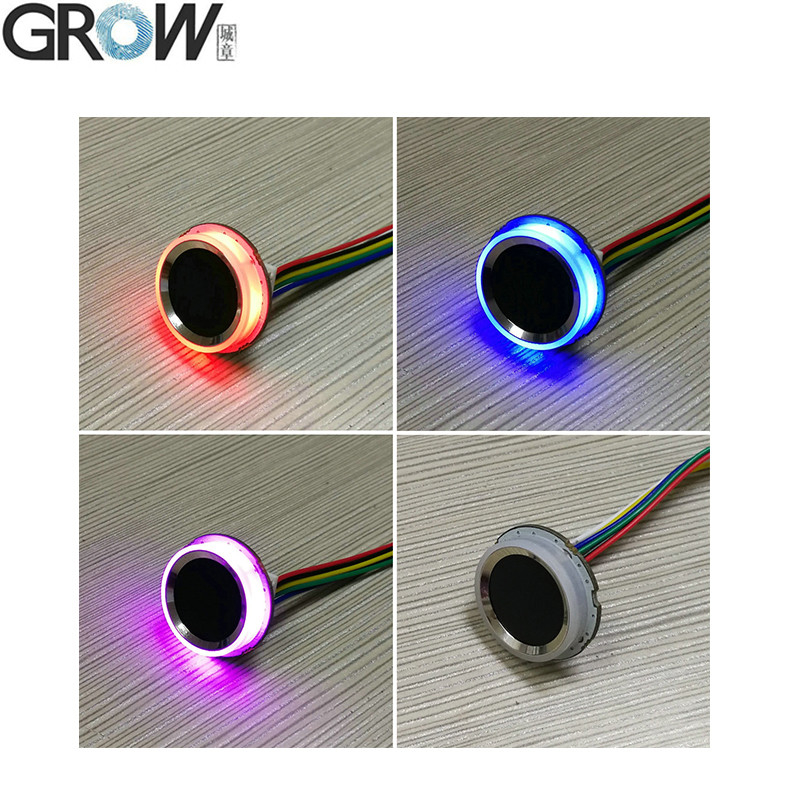

The R502-A has circular ring indicator light that can be controlled by command.

***The different between R502-A with R503:
R502-A is thinner and samller, others are same.
If you think R503 is too big, you can chose R502-A.

***The different between R502-A with R502:
We changed the R502's LED to Circular Ring LED.
If you need small and thin module, but need circluar ring LED, you can chose R502-A..

R502-A Specifications

Model	R502-A
Type	Capacitive Fingerprint Module
Interface	UART(TTL)
Resolution	508 DPI
Voltage	DC 3.3V
Fingerprint Capacity	200
Sensing array	192*192 pixel
Working current	20mA
Standby current	Typical touch standby voltage: 3.3V, Average current: 2uA

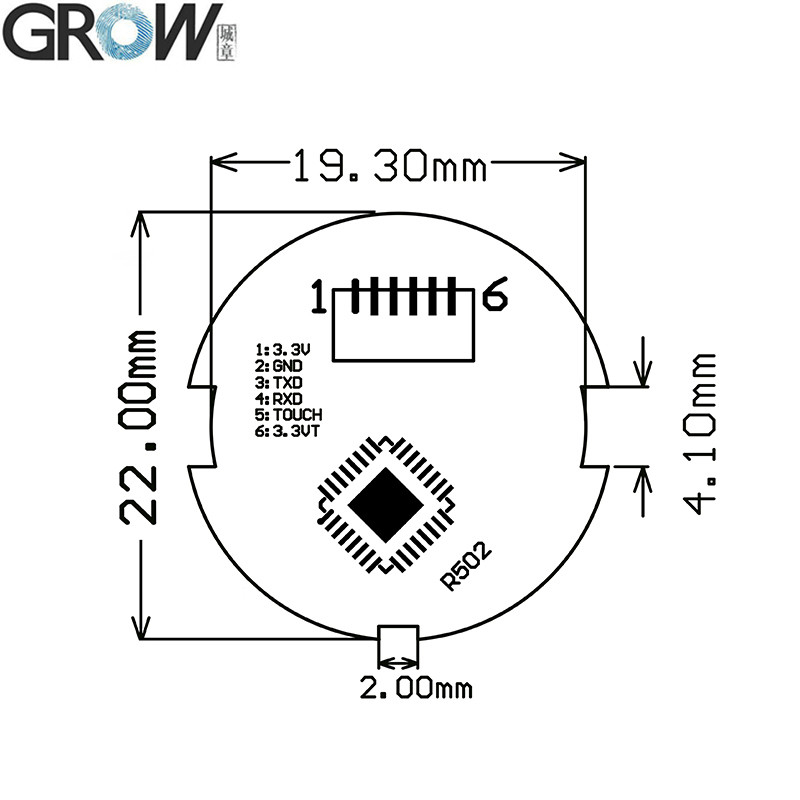

Fingerprint module external size	Diameter 22 (mm)
Fingerprint module inner size	Diameter 19.5 (mm)
Fingerprint module height	5 (mm)
Effective collection area	Diameter 15.5 (mm)

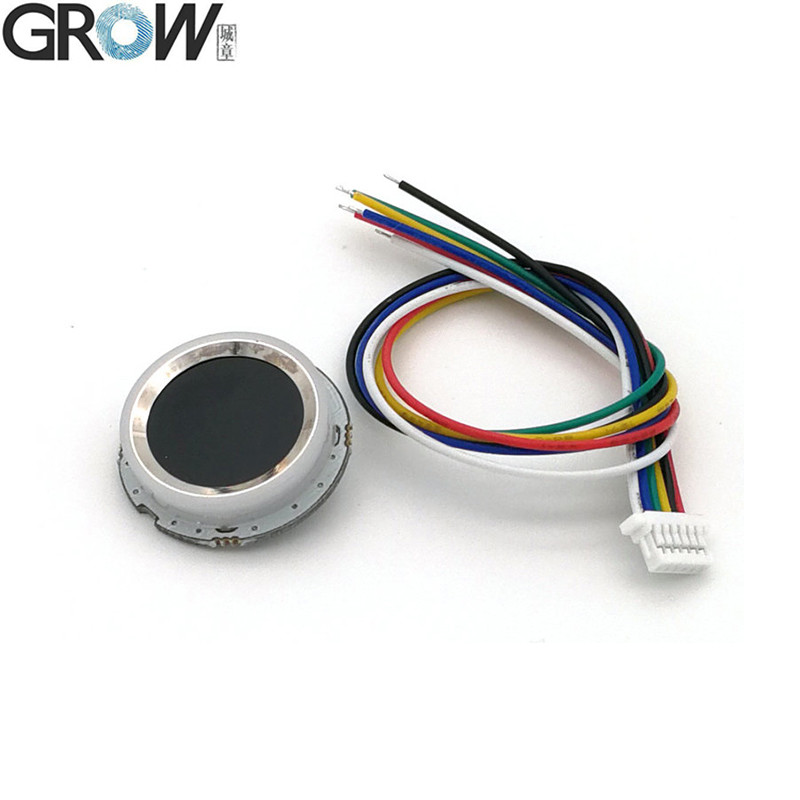

Connector	SH1.0-6Pin
LED Control	YES
LED Color	RGB
Scanning Speed	< 0.2 second
Verification Speed	< 0.3 second
Matching Method	1:1; 1:N
FRR	≤1%
FAR	≤0.001%
Work environment	-20C ---60C
Work Humidity	10-85%
Anti-static capacity	15KV
Abrasive resistance intensity	1 million times
Communications baud rate (UART):	(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Files

·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

You can download the R502-A user manual from this website link:
https://hzgrow.en.made-in-china.com

R502-A Operation display video on Youtube: https://youtu.be/8w_bkgwTabE

If need SDK files,pls contact us.

Revolutionizing Security and Efficiency with Fingerprint Modules: From Door Access to Time Tracking

In the realm of modern security and attendance tracking, fingerprint modules have emerged as indispensable tools, seamlessly integrating into various systems to ensure accuracy and convenience. One such application is in fingerprint door access systems, where the technology has revolutionized how we control entry to restricted areas. By utilizing advanced fingerprint recognition algorithms, these systems authenticate users based on their unique biometric data, granting access only to authorized personnel. This not only enhances security but also eliminates the hassle of carrying keys or remembering passwords, making it a preferred choice for both residential and commercial properties.

Another crucial implementation of fingerprint modules lies in time card fingerprint scanners. These devices are pivotal in attendance management systems, enabling businesses to monitor employee check-in and check-out times with unprecedented precision. By scanning an employee's fingerprint, the system logs the timestamp, thereby reducing the risk of buddy punching and ensuring accurate payroll processing. This not only fosters a culture of accountability but also streamlines HR operations, ultimately contributing to organizational efficiency.

HID (Highly Integrated Devices) fingerprint readers further extend the versatility of fingerprint technology. These readers are designed for seamless integration into existing access control infrastructures, offering a robust solution for both physical and logical access needs. Their compact design and high-security standards make them ideal for environments requiring stringent security measures, such as government facilities, financial institutions, and critical infrastructure sites. HID fingerprint readers leverage advanced encryption techniques to protect biometric data, ensuring that sensitive information remains secure against unauthorized access.

Collectively, these fingerprint module-based systems—fingerprint door access, time card fingerprint scanners, and HID fingerprint readers—demonstrate the transformative impact of biometric technology on our daily lives. They facilitate secure, efficient, and user-friendly access control and attendance tracking solutions, reshaping the landscape of security management. As technology continues to evolve, fingerprint modules will undoubtedly play an even more central role in safeguarding our environments and optimizing operational workflows, making the world a smarter and more secure place to live and work.
