Description
1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
2. High-efficiency recognization and high upload speed for improving your working efficiency.
3. With buzzer for reminding you that the scanning successfully or not.
4. Compatible with UART interface.
5. Over 180 configurable options
6. Macro support replace a string in the bar code with another
7. Programmable preamble postamble and termination strings
8.Superior reading performance utilizing advanced decoding algorithms
Specifications
|
Parameter
|
Performance
|
|
Sensor
|
CMOS
|
|
Scan Mode
|
640*480
|
|

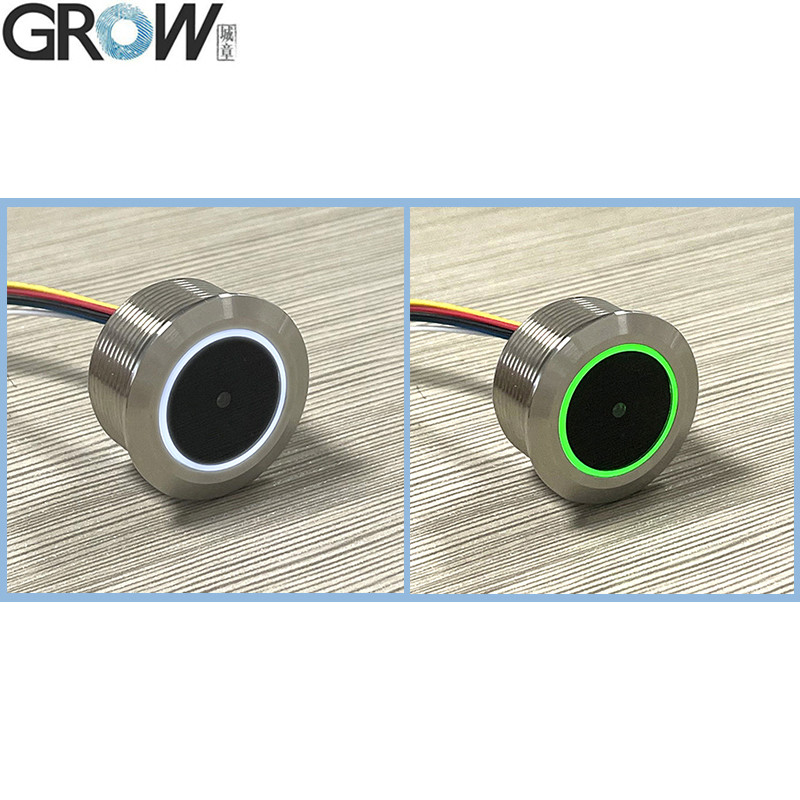

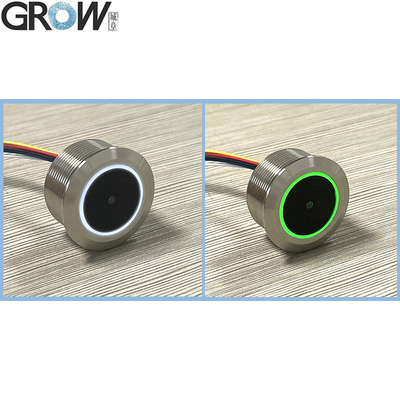

Indicator Light
|
Green light as read successfully
|
|
Read Code Type
|
1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128,
Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5,
Matrix 2 of 5, Code 39,Code 11, MSI-Plessey,
GS1 Composite,GS1-Databar (RSS)
|
|
2D: QR Code, Data Matrix, PDF417
|
|
GM861
Reading Distance
|
5-30cm
|
|
Contrast*
|
>25%
|
|
Scan Angle**
|
Roll: 360° Pitch: 65° Yaw: 65°
|
|
Viewing Angle
|
67° (Horizontal) 53° (Vertical)
|
|
Accuracy of reading*
|
≥10mil
|
Mechanical/electrical Parameters:
|
Parameter
|
Performance
|
|

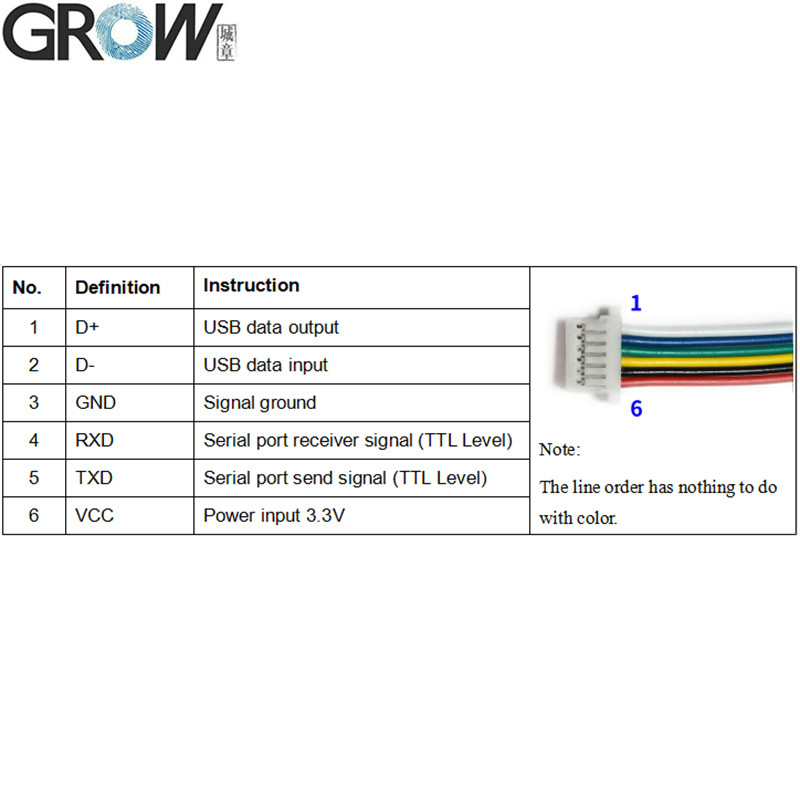

Interface
|
TTL-232/USB
|
|

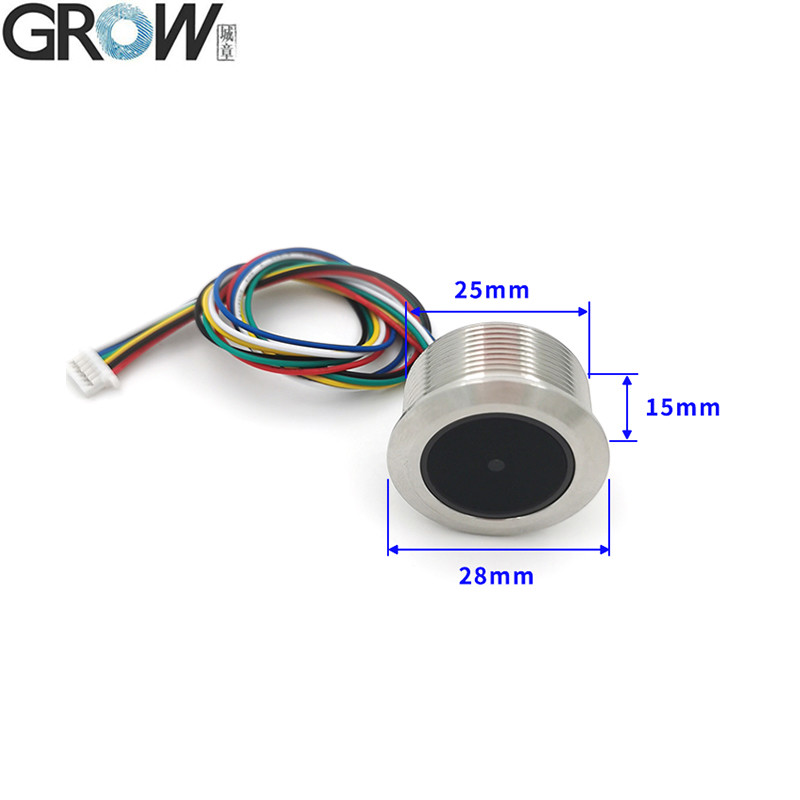

Size(mm)
|
External diameter: 28mm Internal diameter: 25mm
Height: 15mm Thread M25
|
|
Weight
|
25 g
|
|
Prompting mode
|
LED Indicator
|
|
Operating Voltage
|
3.3V
|
|
Operation Current
|
70mA(Max)
|
|
Standby Current
|
≤6mA(Typical)
|
|
Startup time
|
≤250mS (Typical)
|
Environmental Parameters:
|
Parameter
|
Performance
|
|
Operating temperature
|
-20ºC~60ºC
|
|
Storage Temperature
|
-40ºC~+100ºC
|
|
Operating Humidity
|
5%~95%(Non-Condensing)
|
|
Environmental Light
|
Normal indoor light source
|
|
Fall
|
Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)
|
Files
·Provide User Manual
·CE Certificate
How to choose a better manufacturer for 2D scanning modules?
When choosing a manufacturer or factory for 2D scanning modules, several factors need to be considered. Here are some important factors to keep in mind:
Quality assurance: One of the primary considerations when choosing a manufacturer or factory for 2D scanning modules is hardware quality. The main factors include the durability, lifespan, stability, reading speed, and accuracy of the equipment. Of course, we also need to check whether this product has obtained relevant certifications and verify its production qualifications to ensure it matches manufacturing standards. In addition, attention should be paid to choosing a manufacturer that places more emphasis on quality control.
Technical support: Whether the 2D scanning module manufacturer can provide technical support services to end customers is also an important consideration factor. It is particularly important for manufacturers to provide timely and efficient OEM bar code scanning application solutions, as users may encounter problems for certain reasons when using the 2D scanning module. The support services provided by manufacturers can greatly alleviate the difficulties faced by users when encountering technical problems.
Customization requirements: Some customers may have unique scanning scenarios and needs, so it is particularly crucial for manufacturers to provide customized services. Looking for manufacturers who can provide flexible options and customize 2D scanning modules to meet your specific needs.
Cost effectiveness: It is normal for manufacturers to provide 2D scanning modules with significant price differences, but customers need to ensure that the selected brand is within their budget and that the price can provide higher value. Consider your budget and look for manufacturers who can provide reasonable prices for the features and performance you need.
Related user feedback: The professional technology and industry reputation of the two-dimensional scanning module manufacturer are the bridge connecting users and manufacturers. Whether a manufacturer is trustworthy depends on their reputation in the industry and the feedback from customers regarding their products. Viewing reviews and customer feedback, especially the long-term performance of the product under medium to long-term use, is a way to understand the overall feedback and quality of the 2D scanning module brand.
By considering the above factors, you can choose a 2D scanning module manufacturer or factory that provides the performance, reliability, and technical support required to implement the project. Hangzhou GROW Technology Co., Ltd. focuses on the research and development, production, sales, and professional technical services of scanning modules, QR code modules, QR scanning modules, QR code scanning modules, embedded bar code recognition modules, QR code scanning heads, embedded QR code scanners, and embedded bar code recognition engines. With more than 10 years of industry experience, rich product lines, and excellent bar code recognition solutions, we can provide customers with high-quality products and services and win competitive advantages. At the same time, the price advantage is obvious. If you have any needs, please feel free to contact us!
