GROW GM910S Black DC3.3V USB UART 2D / 1D Qr Scanner Module

Basic Information

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T,PayPal
Supply Ability:	5000

Get Best Price Contact Now

Detail Information

Model NO.:	GM910S	Operating Voltage:	3.3V
Operating Current:	100mA(Max)	Scan Mode:	640*480
Interface:	TTL-232/USB	Resolution:	One Dimensional Code:6mil
Weight:	3.2g	Serial Baud Rate(Uart):	9600
Transport Package:	Standard Export Carton Package	Specification:	External Diameter 20.9mm,Inner Diameter 18.8mm, Height 7.2mm
Trademark:	GROW	Origin:	China
HS Code:	8473309000	Supply Ability:	5000
Package Size:	13.00cm * 8.00cm * 9.00cm	Package Gross Weight:	0.100kg
Highlight:	USB qr scanner module , 2D qr scanner module , 1D qr scanner module

Product Description

Scanning Performance	Scan Mode		640*480 CMOS
	Read Code Type	2D	QR Code, Data Matrix, PDF417,maxicode,Aztec,hanxin
		1D	EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Code 11,
			Codabar, Interleaved 2 of 5, Standard 25,MSI-Plessey
			GS1 Databar, Industrial 25, Matrix 2 of 5
	Accuracy of reading		One Dimensional Code:6mil
	Working Mode		Continuous Mode, Induction Mode, Manual Mode
	Depth of Field	Alipay	30-150mm
		Bus	50-120mm
	Contrast		≥25%
	Scanning angle		Intersection angle 360°, Elevation ± 55°, Deflection angle ± 55°
	Viewing Angle		Inclination 60°, Elevation 46°
Mechanical/ Electrical Parameters	Interface		TTL-232,USB

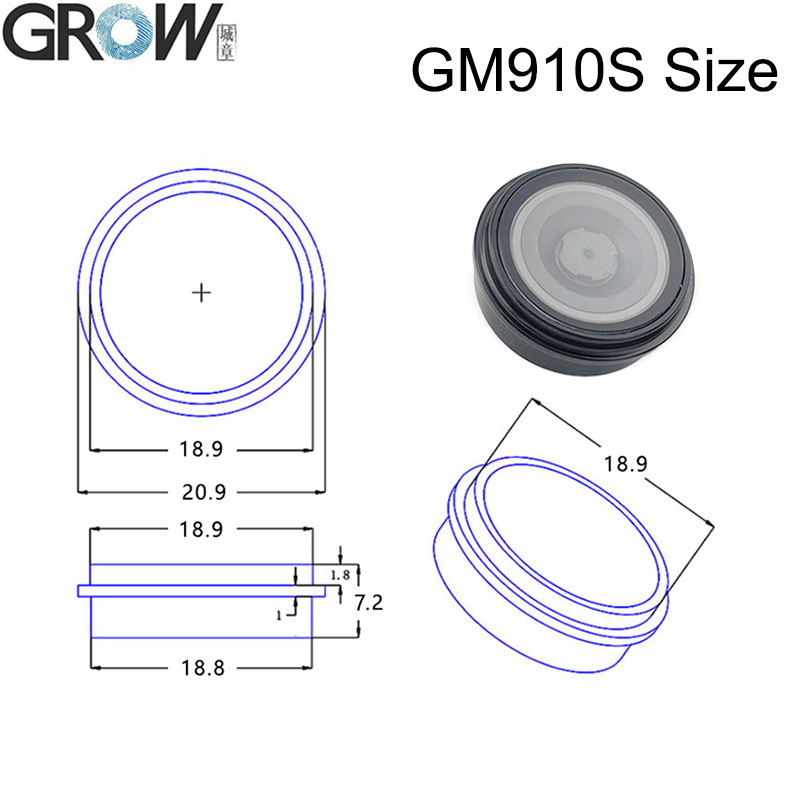

	Dimension		External diameter 20.9mm,Inner diameter 18.8mm, Height 7.2mm
	Operating Voltage		3.3V
	Operating Current		≤100mA
Environmental Parameters	Operating Temperature		-20℃~+50℃
	Storage Temperature		-40℃~+70℃
	Operating Humidity		5%~95% (Non-Condensing)
	Environmental Light		10~100000LUX
