GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows

GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows
GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows
GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows
Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms: T/T,Paypal
Supply Ability: 5000
Get Best Price Contact Now
Detail Information
Model NO.: GM861S-LED Operating Voltage: 3.3V
Operating Current: 70mA Scan Mode: 640*480
Interface: USB/UART Resolution: 10mil
Weight: 2g Serial Baud Rate(Uart): 9600
Transport Package: Standard Export Carton Package Specification: Diameter 20.9mm,Height 6.2mm
Trademark: GROW Origin: China
HS Code: 8473309000 Production Capacity: 5000
Highlight:

GROW GM861S-LED barcode scanner module

,

USB UART interface QR code reader

,

DC3.3V barcode scanner for Arduino

Product Description

GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows 0
Description

        1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

        2. High-efficiency recognization and high upload speed for improving your working efficiency.

        3. With buzzer for reminding you that the scanning successfully or not.

        4. Compatible with UART interface.

        5. Over 180 configurable options

        6. Macro support replace a string in the bar code with another

        7. Programmable preamble postamble and termination strings

        8.Superior reading performance utilizing advanced decoding algorithms



Specifications

Parameter Performance
Sensor CMOS
Scan Mode 640*480
GM861S-LED
Indicator Light		 White light as power on
Green light as read successfully
GM861S-LED
Fill Light		 White light

Read Code Type		 1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,
Code 128,Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial 2 of 5,
Matrix 2of 5, Code 39,Code11, MSI-Plessey,
GS1 Composite,GS1-Databar (RSS)

 		 2D: QRCode, DataMatrix, PDF417, Micro QR, Micro PDF417,
Aztec
GM861S-LED
Reading Distance		   5-30cm

Contrast* >25%
Scan Angle** Roll:360°Pitch:65°Yaw:65°
Viewing Angle 67°(Horizontal)53°(Vertical)
Accuracy of reading* ≥10mil

Mechanical/electrical Parameters:

Parameter   Performance

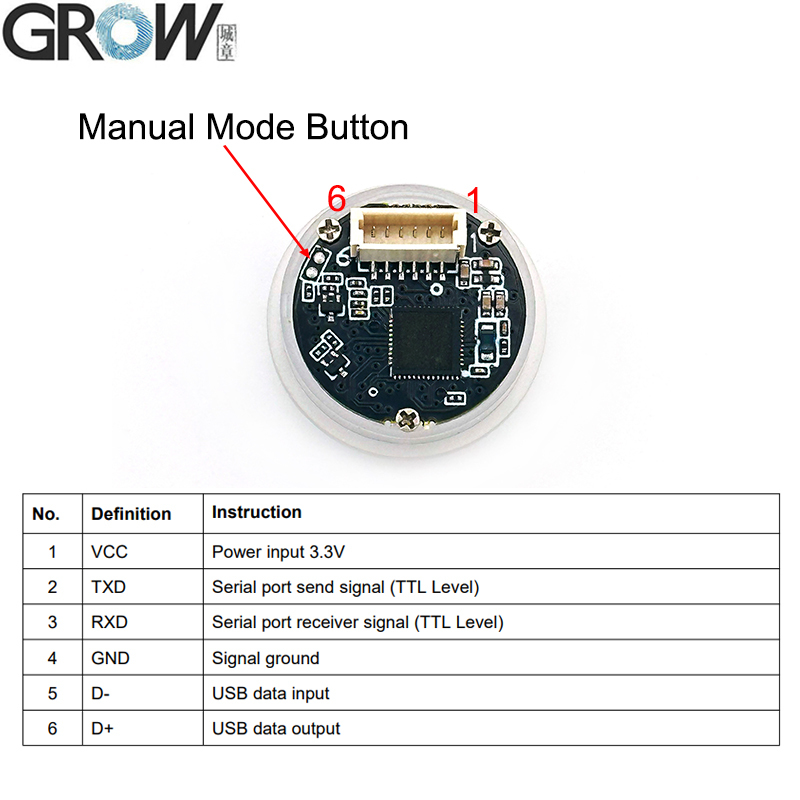

Interface TTL-232/USB

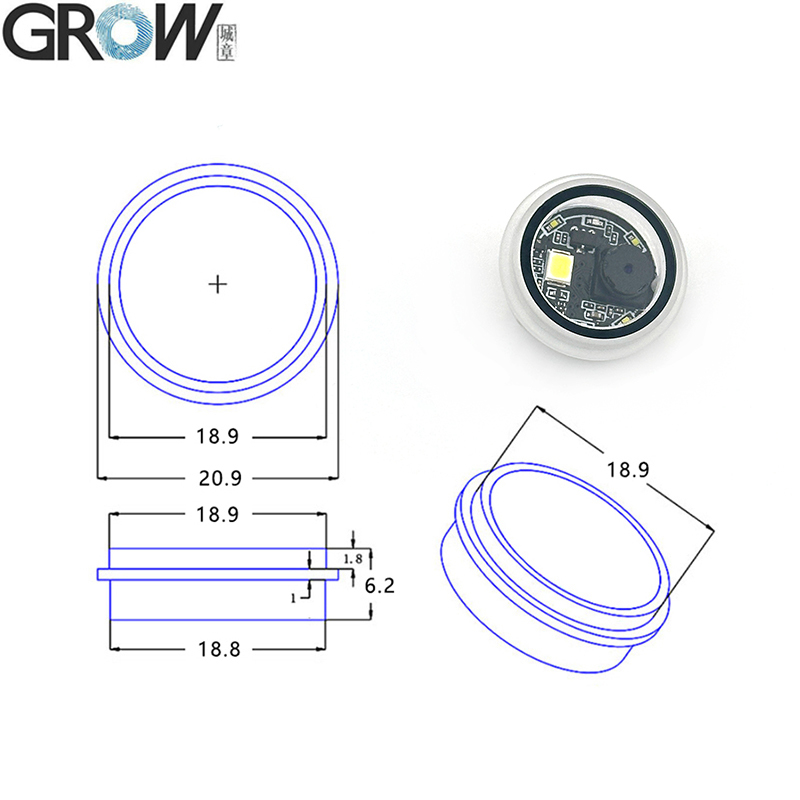

Size(mm) Diameter 20.9mm Height 6.2mm
Weight 2g
Prompting Mode LED Indicator
Operating Voltage 3.3V
Operation Current 70mA(Max)
Standby Current ≤6mA(Typical)
Startup Time ≤250mS (Typical)

Environmental Parameters:

        Parameter Performance
Operating temperature -20ºC~60ºC
Storage Temperature -40ºC~+100ºC
Operating Humidity 5%~95%(Non-Condensing)
Environmental Light Normal indoor light source
Fall Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)




Files

·Provide User Manual
·CE Certificate



GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows 1GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows 2GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows 3GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows 4GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows 5GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows 6GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows 7
GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows 8

GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows 9
GROW GM861S-LED White Fill Lighting DC3.3V Barcode Module USB/UART Interface Qr Code Bar Code Scanner Reader For Arduino Windows 10
