GROW GM861-LED White Fill Lighting UART/USB 1D/2D Bar Code QR Code Barcode Scanner Module With Stainless Steel Enclosure

Basic Information

Place of Origin:	China
Certification:	CE

Minimum Order Quantity:	1

Get Best Price Contact Now

Detail Information

Model NO.:	GM861-LED	Operating Voltage:	3.3V
Operating Current:	70mA	Scan Mode:	640*480
Interface:	Uart	Resolution:	10mil
Weight:	25g	Serial Baud Rate(Uart):	57600
Transport Package:	Standard Export Carton Package	Specification:	Diameter 28 (mm)
Trademark:	GROW	Origin:	China
HS Code:	8473309000	Production Capacity:	5000
Highlight:	USB Barcode Module Scanner Reader , 2D Barcode Module Scanner Reader , Uart Barcode Module Scanner Reader

Product Description

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Specifications

Parameter	Performance
Sensor	CMOS
Scan Mode	640*480
GM861-LED Indicator Light	White light as power on Green light as read successfully

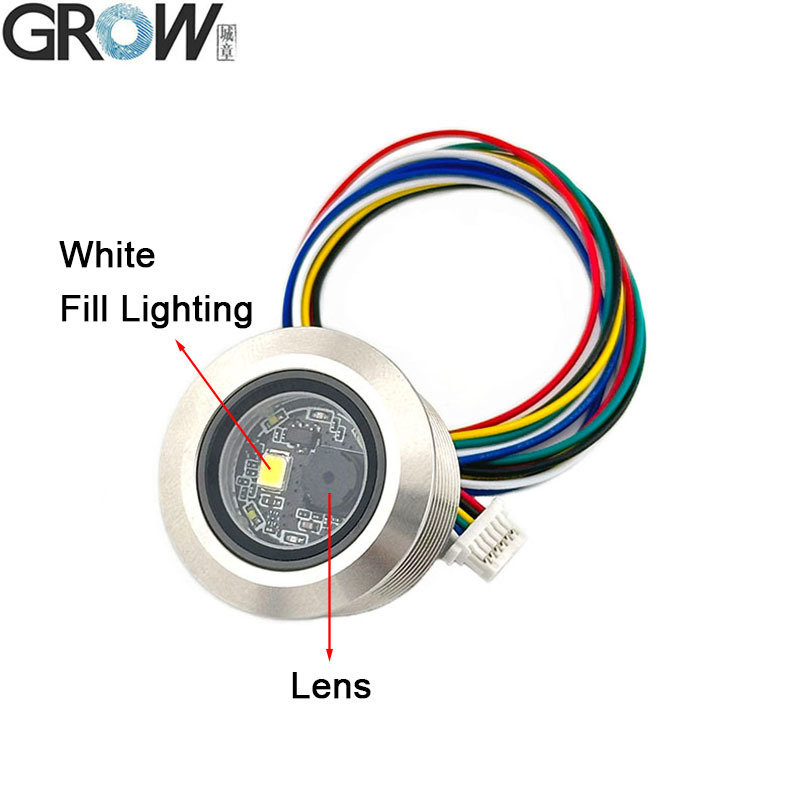

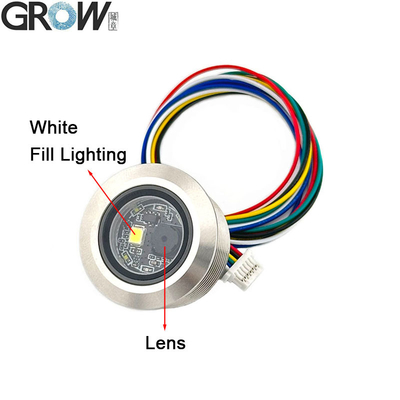

GM861-LED Fill Light	White light
Read Code Type	1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey,GS1 Composite, GS1-Databar (RSS)
Read Code Type	2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec
GM861-LED Reading Distance	5-30cm
Contrast*	>25%
Scan Angle**	Roll: 360° Pitch: 65° Yaw: 65°
Viewing Angle	67° (Horizontal) 53° (Vertical)
Accuracy of reading*	≥10mil

Mechanical/electrical Parameters:

Parameter	Performance
Interface	TTL-232/USB

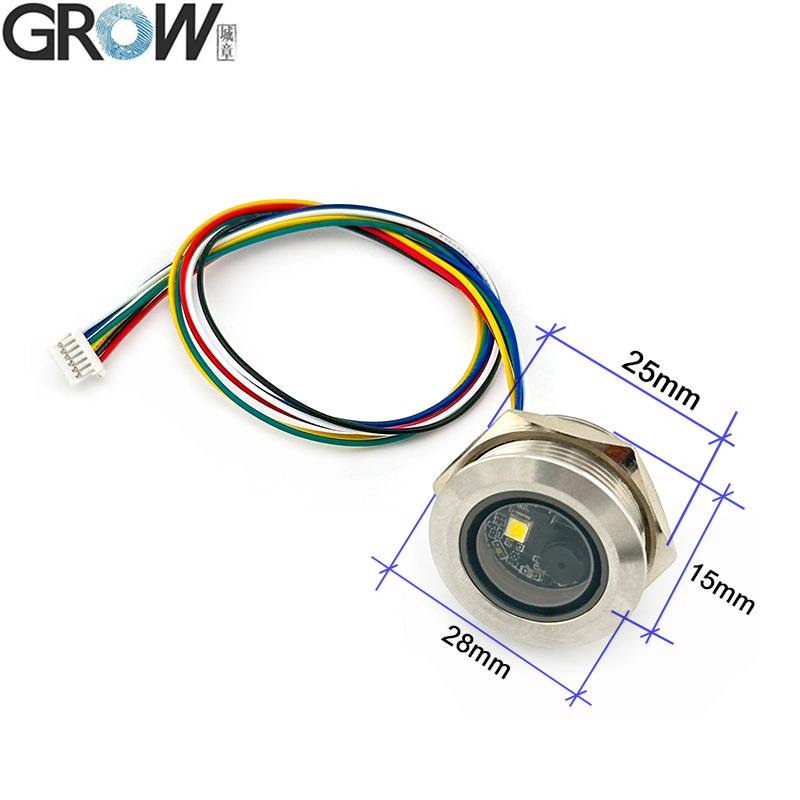

Size(mm)	External diameter: 28mm Internal diameter: 25mm Height: 15mm Thread M25
Weight	25 g
Prompting mode	LED Indicator
Operating Voltage	3.3V
Operation Current	70mA(Max)
Standby Current	≤6mA(Typical)
Startup time	≤250mS (Typical)

Environmental Parameters:

Parameter	Performance
Operating temperature	-20ºC~60ºC
Storage Temperature	-40ºC~+100ºC
Operating Humidity	5%~95%(Non-Condensing)
Environmental Light	Normal indoor light source
Fall	Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)

Files

·Provide User Manual
·CE Certificate
